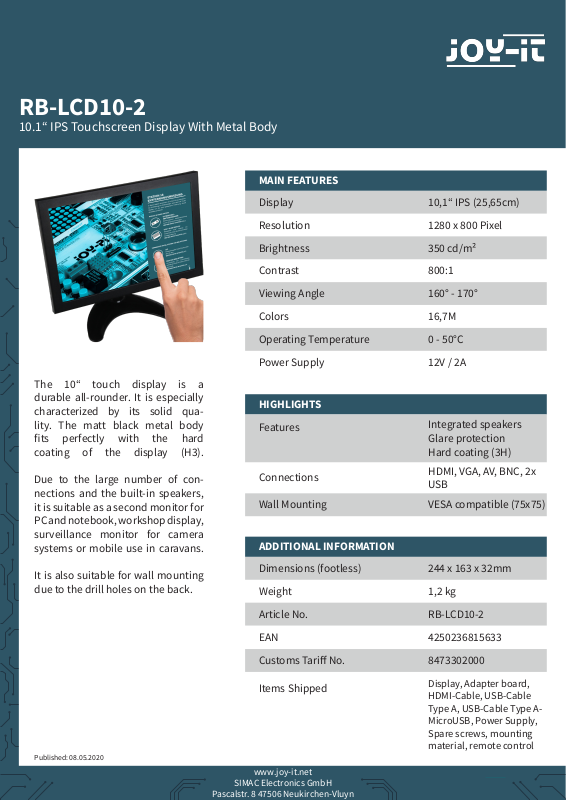

JOY-IT DEBO LCD 10 HDMI Datasheet
RB-LCD10-2
10.1“ IPS Touchscreen Display With Metal Body
MAIN FEATURES
Display 10,1“ IPS (25,65cm)
Resolution 1280 x 800 Pixel
Brightness 350 cd/m²
Contrast 800:1
Viewing Angle 160° - 170°
Colors 16,7M
Operating Temperature 0 - 50°C
Power Supply 12V / 2A
The 10“ touch display is a
durable all-rounder. It is especially
characterized by its solid quality. The matt black metal body
ts perfectly with the hard
coating of the display (H3).
Due to the large number of con-
nections and the built-in speakers,
it is suitable as a second monitor for
PC and notebook, workshop display,
surveillance monitor for camera
systems or mobile use in caravans.
It is also suitable for wall mounting
due to the drill holes on the back.
HIGHLIGHTS
Features
Connections
Wall Mounting VESA compatible (75x75)
ADDITIONAL INFORMATION
Dimensions (footless) 244 x 163 x 32mm
Weight 1,2 kg
Integrated speakers
Glare protection
Hard coating (3H)
HDMI, VGA, AV, BNC, 2x
USB
Published: 08.05.2020
Article No. RB-LCD10-2
EAN 4250236815633
Customs Tari No. 8473302000
Items Shipped
www.joy-it.net
SIMAC Electronics GmbH
Pascalstr. 8 47506 Neukirchen-Vluyn
Display, Adapter board,
HDMI-Cable, USB-Cable
Type A, USB-Cable Type AMicroUSB, Power Supply,
Spare screws, mounting
material, remote control
