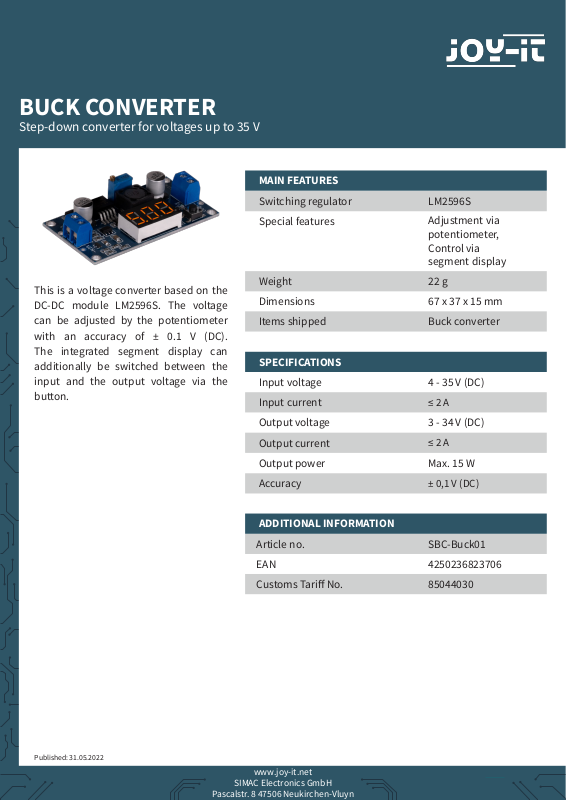

JOY-IT DEBO DCDC DOWN 5 Datasheet

BUCK CONVERTER

Step-down converter for voltages up to 35 V

MAIN FEATURES

This is a voltage converter based on the
DC-DC module LM2596S. The voltage
can be adjusted by the potentiometer
with an accuracy of ± 0.1 V (DC).
The integrated segment display can
additionally be switched between the
input and the output voltage via the
button.

Switching regulator

Special features

Weight

Dimensions

Items shipped

SPECIFICATIONS

Input voltage

Input current

Output voltage

Output current

Output power

LM2596S

Adjustment via
potentiometer,
Control via
segment display

22 g

67 x 37 x 15 mm

Buck converter

4 - 35 V (DC)

≤ 2 A

3 - 34 V (DC)

≤ 2 A

Max. 15 W

Published: 31.05.2022

Accuracy

ADDITIONAL INFORMATION

Article no.

EAN

Customs Tari No.

www.joy-it.net

SIMAC Electronics GmbH

Pascalstr. 8 47506 Neukirchen-Vluyn

± 0,1 V (DC)

SBC-Buck01

4250236823706

85044030
