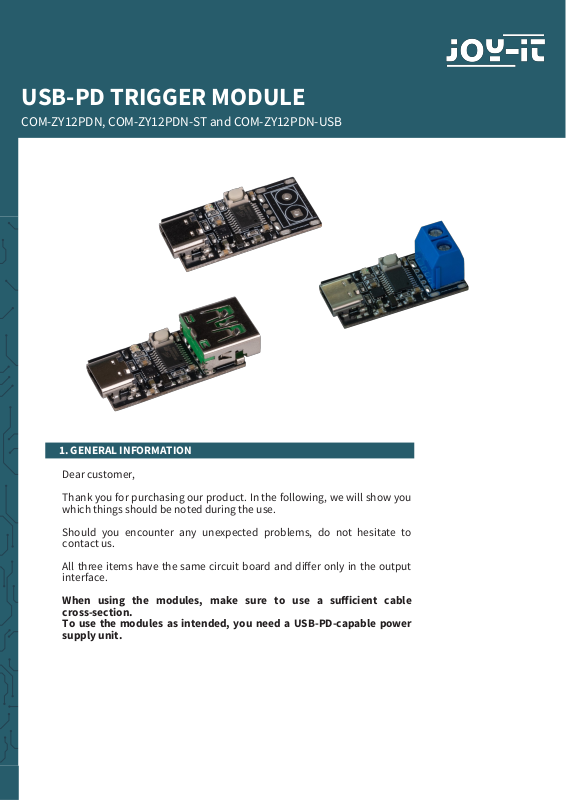

USB-PD TRIGGER MODULE
COM-ZY12PDN, COM-ZY12PDN-ST and COM-ZY12PDN-USB
1. GENERAL INFORMATION
Dear customer,
Thank you for purchasing our product. In the following, we will show you
which things should be noted during the use.
Should you encounter any unexpected problems, do not hesitate to
contact us.
All three items have the same circuit board and dier only in the output
interface.
When using the modules, make sure to use a suicient cable
cross-section.
To use the modules as intended, you need a USB-PD-capable power
supply unit.
Page 2

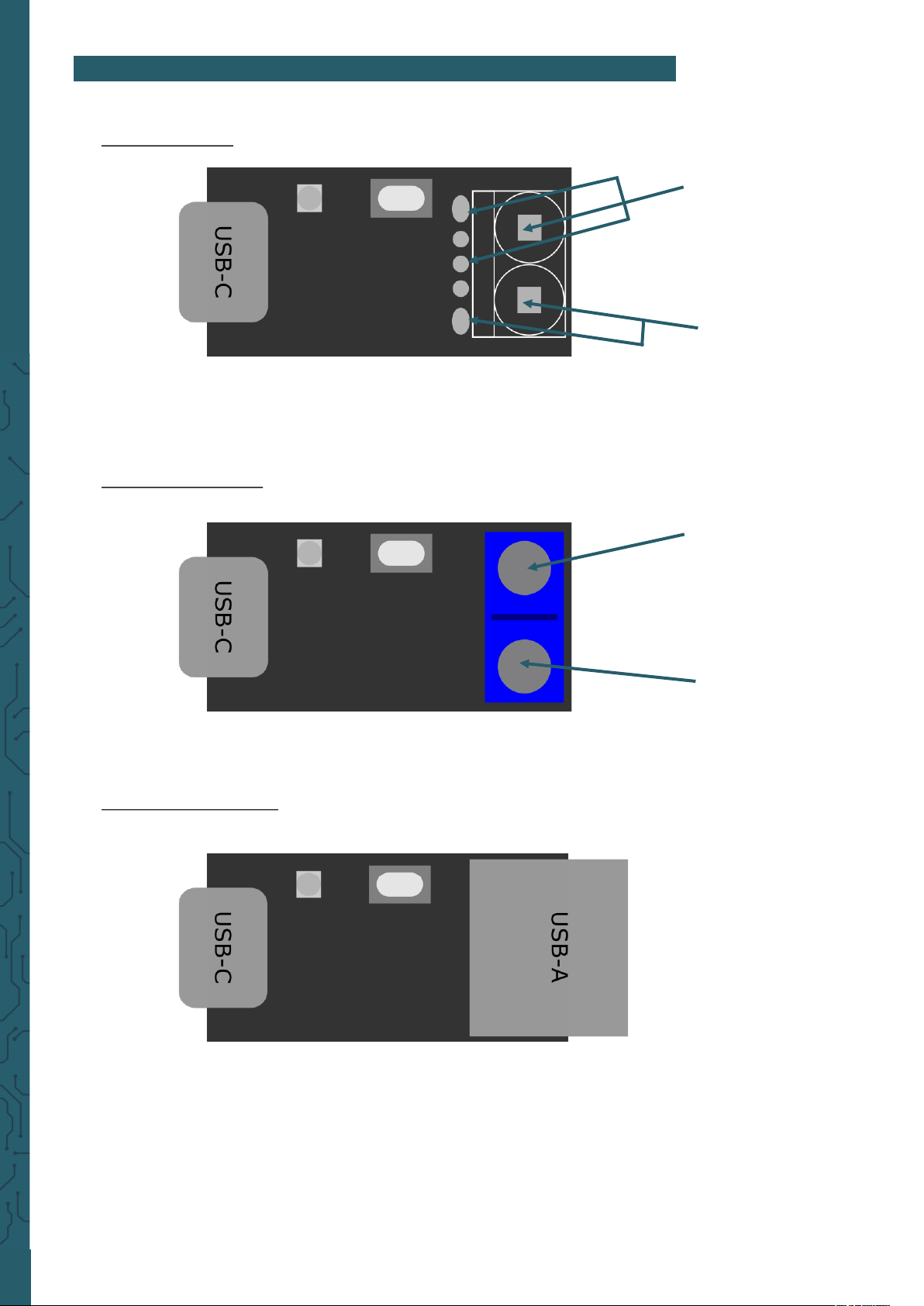

2. OUTPUT INTERFACES
COM-ZY12PDN
COM-ZY12PDN-ST
-
+
COM-ZY12PDN-USB
-
+
Page 3

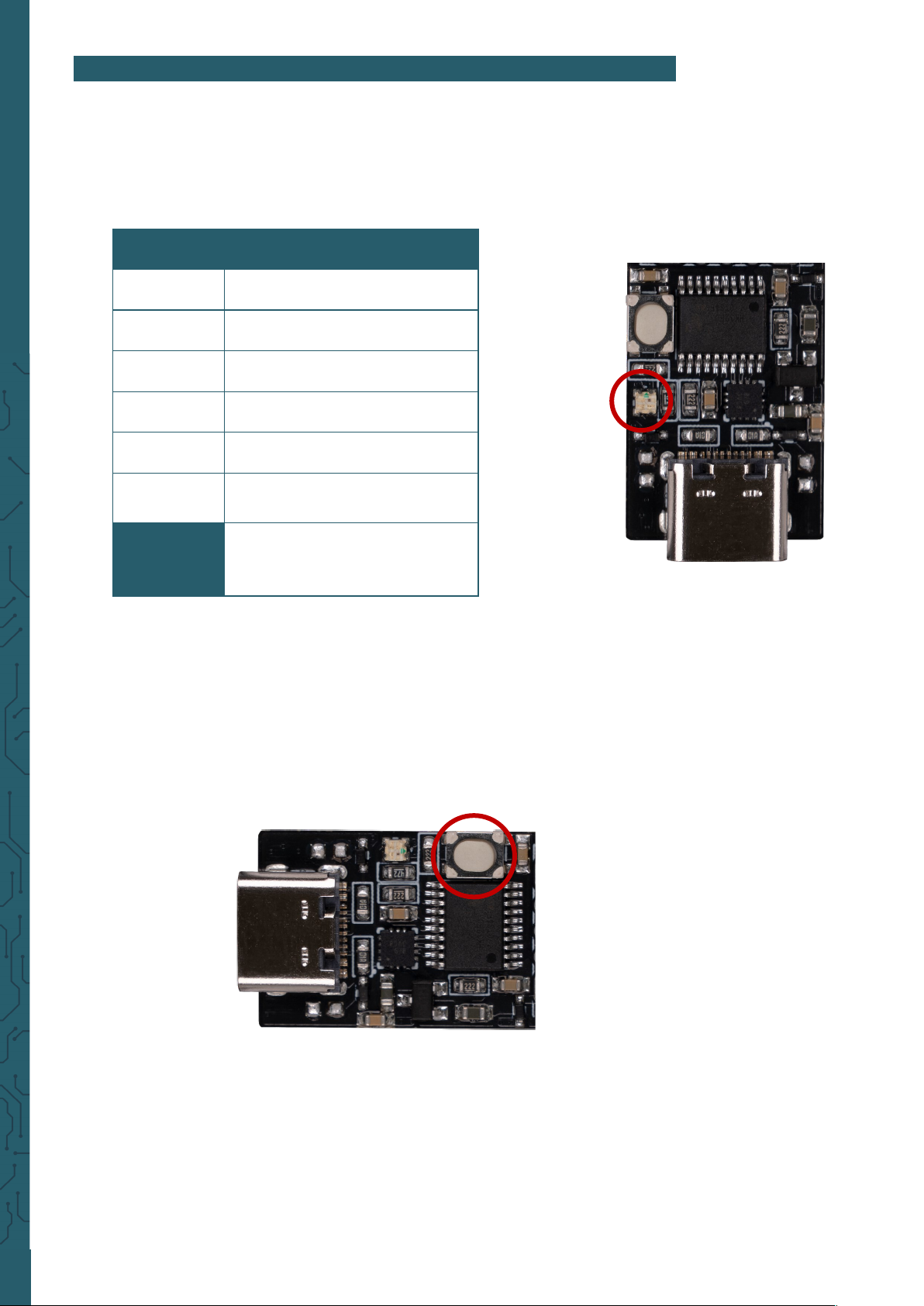

3. OPERATION
Connect your USB-PD trigger module to a USB-PD capable power supply
using the USB-C connector. These modules provide you with dierent
voltage modes, which are indicated by the LED. The mode can be
changed by pressing the button.
Colour Voltage modes
■ 5 V
■ 9 V
■ 12 V
■ 15 V
■ 20 V
■ Maximum possible voltage
■
Runs through all modes
(one per second)
To set the modes as default, first plug the board into your power supply
while holding down the button on the board. Now the LED will start
flashing colourfully. Now you can select the desired mode using the
button. Now press and hold the button to confirm your selection. Finally,
disconnect the power supply from the module and then reconnect it so
that the module now starts directly in this mode.
Page 4
PR
4. OTHER INFORMATION
Our Information and Take-back Obligations according to the
Electrical and Electronic Equipment Act (ElektroG)
Symbol on Electrial and Electronic Products:
This crossed-out bin means that electrical and electronic products do not
belong into the household waste. You must hand over your old appliance
to a registration place. Before you can hand over the old appliance, you
must remove used batteries and replacement batteries which are not
enclosed by the device.
Return Options:
As the end user, you can hand over your old appliance (which has
essentially the same functions as the new one bought with us) free of
charge for disposal with the purchase of a new device.
Small devices, which do not have outer dimensions bigger than 25 cm
can be handed in for disposal independently of the
purchase of a new product in normal household quantities.
1. Possibility of return at our company location during our opening
hours
Simac Electronics Handel GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn
2. Possibility of return nearby
We will send you a parcel stamp with which you can send us your old
appliance free of charge. For this possibility, please contact us via e-mail
at [email protected] or via telephone.
Information about Package:
Please package your old appliance safe for transport. Should you not
have suitable packaging material or you do not want to use your own
material, you can contact us and we will send you an appropriate
package.
5. SUPPORT
If any questions remained open or problems may arise aer your
purchase,we are available by e-mail, telephone and ticket support
system to answer these.
E-Mail: [email protected]
Ticket-system: http://support.joy-it.net
Telephone: +49 (0)2845 98469 – 66 (10 - 17 o'clock)
For further information visit our website:
www.joy-it.net
