Published: 20.10.2020

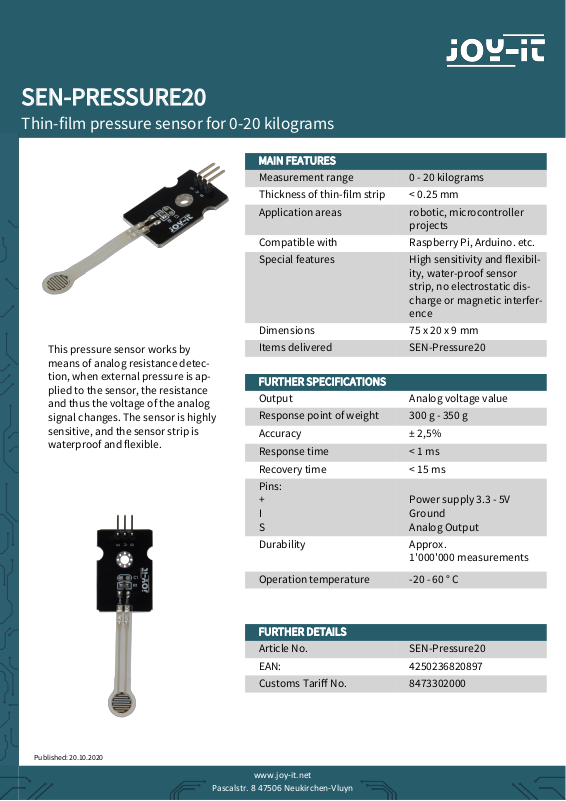

SEN-PRESSURE20
Thin-film pressure sensor for 0-20 kilograms
MAIN FEATURES
Measurement range 0 - 20 kilograms
Thickness of thin-film strip < 0.25 mm
Application areas robotic, microcontroller
projects
Compatible with Raspberry Pi, Arduino. etc.
Special features High sensitivity and flexibil-
ity, water-proof sensor
strip, no electrostatic dis-
charge or magnetic interfer-
ence
Dimensions 75 x 20 x 9 mm
Items delivered SEN-Pressure20
FURTHER DETAILS
Article No. SEN-Pressure20
EAN: 4250236820897
Customs Tari No. 8473302000
This pressure sensor works by
means of analog resistance detection, when external pressure is applied to the sensor, the resistance
and thus the voltage of the analog
signal changes. The sensor is highly
sensitive, and the sensor strip is
waterproof and flexible.
FURTHER SPECIFICATIONS
Output Analog voltage value
Response point of weight 300 g - 350 g
Accuracy ± 2,5%
Response time < 1 ms
Recovery time < 15 ms
Pins:
+
I
S
Power supply 3.3 - 5V
Ground
Analog Output
Durability Approx.
1'000'000 measurements
Operation temperature -20 - 60 ° C
