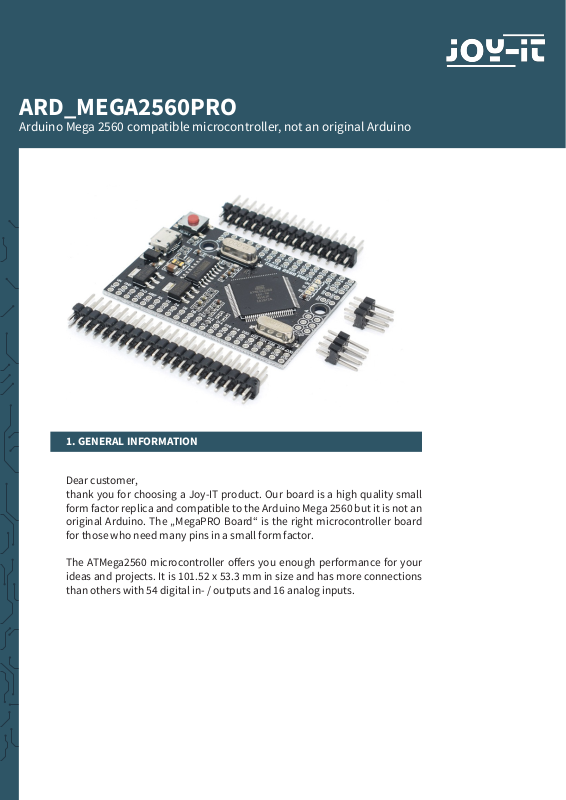

Page 1
ARD_MEGA2560PRO
Arduino Mega 2560 compatible microcontroller, not an original Arduino
1. GENERAL INFORMATION
Dear customer,
thank you for choosing a Joy-IT product. Our board is a high quality small
form factor replica and compatible to the Arduino Mega 2560 but it is not an
original Arduino. The „MegaPRO Board“ is the right microcontroller board
for those who need many pins in a small form factor.
The ATMega2560 microcontroller oers you enough performance for your
ideas and projects. It is 101.52 x 53.3 mm in size and has more connections
than others with 54 digital in- / outputs and 16 analog inputs.
Page 2
2. TECHNICAL SPECIFICATIONS
Model
EAN
Microcontroller
Input voltage
Digital IO
Analog IO
DC current IO
DC current 3.3 V
Storage
SRAM
EEPROM
Clock Speed
Dimensions
ARD_MEGA2560PRO
4250236812366
ATmega2560
6 - 9 V at VIN
54 of which 15 PWM
16
20 mA
50 mA
256 KB
(8 KB for Bootloader)
8 KB
4 KB
16 MHz
55 x 38 mm
3. PINOUT
Power supply
Reset, AREF
TX, RX
Digital IO‘s
D2-D31
microUSB Port
Reset-Button
Analog-Inputs
Digital IO‘s
D32 - D53
ICSP
Page 3
4. SOFTWARE-INSTALLATION
If you start programming the Joy-IT ARD_Mega2560PRO, you have to install
a development environment and the drivers for the associated operating
system on your computer which is going to be used for programming.
The recommended development environment is the “Arduino IDE“ which
is released by the Arduino manufacturer as an open source soware. This
soware is aimed at beginners, due to concept and structure. It is
compatible to the Joy-IT ARD_Mega2560PRO and has next to the
development environment also the required drivers which make it
possible to start immediately.
The download for this soware can be found with the following link:
https://www.arduino.cc/en/Main/Soware

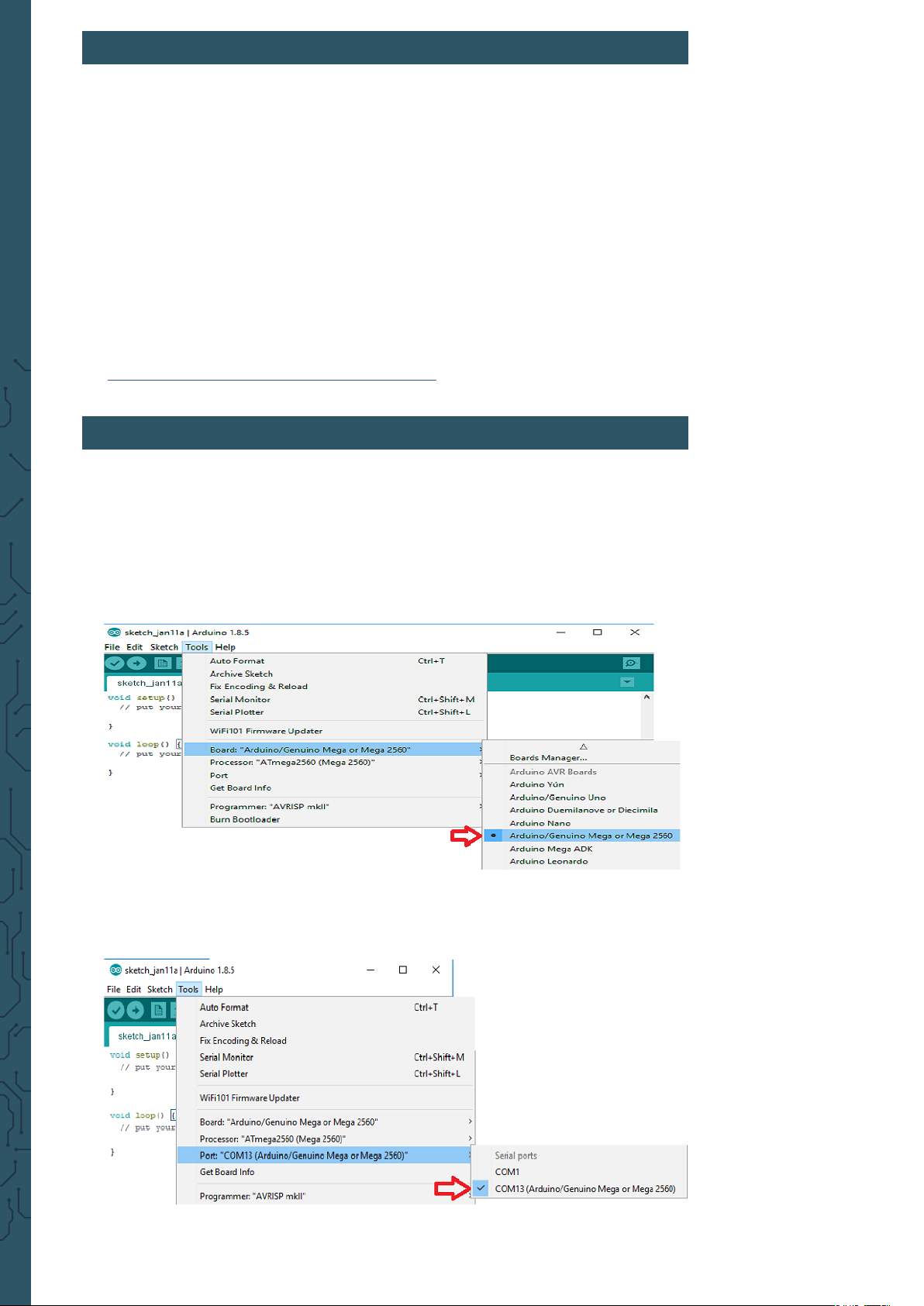

5. SOFTWARE SETUP
Aer installing the soware, the appropriate microcontroller board must be
set up in the programming environment. To do this follow the next two steps.
1. Select [Tools → Board] choose “Arduino / Genuino Mega or
Mega 2560“
2. Select [Tools → Port] choose the port marked with
„(Arduino / Genuino Mega or Mega 2560)
Page 4
6.FURTHER INFORMATION
Our information and redemption obligation according to
the electro-law (ElektroG)
Symbol on electrial and electronic products :
This crossed-out bin means that electrical and electronic products do not
belong into the household waste. You must hand over your old appliance to
a registration oice. Before you can hand over the old appliance, you must
remove used batteries and accumulators which are not enclosed by the
device.
Return options :
As the end user, you can hand over with the purchase of a new device your
old appliance (which has essentially the same functions as the new one) free
of charge for disposal. Small devices which do not have outer dimensions
greater than 25 cm can be submitted independently of the purchase of a
new product in normal household quantities.
Possibility of restitution at our company location during our opening
hours:
Simac GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn
2
Possibility of restitution nearby :
We send you a parcel stamp with which you can send us your old appliance
free of charge. For this possibility, you must contact us via e-mail at
[email protected] or via telephone.
Information about packaging:
Please package your old appliance safe during transport. Should you not
have a suitable packaging material or you do not want to use your own
material, you can contact us and we will send you an appropriate package.
7. SUPPORT
We are also there for you aer your purchase. If any questions remain open
or problems arise, we are also available by e-mail, telephone and ticket
support system.
E-Mail: [email protected]
Ticket-System: http://support.joy-it.net
Phone: +49 (0)2845 98469 – 66 (10 - 17 clock)
For more information visit our website:
www.joy-it.net
Published: 22.01.2021
