Joyhoom Technologies E8830BT User Manual

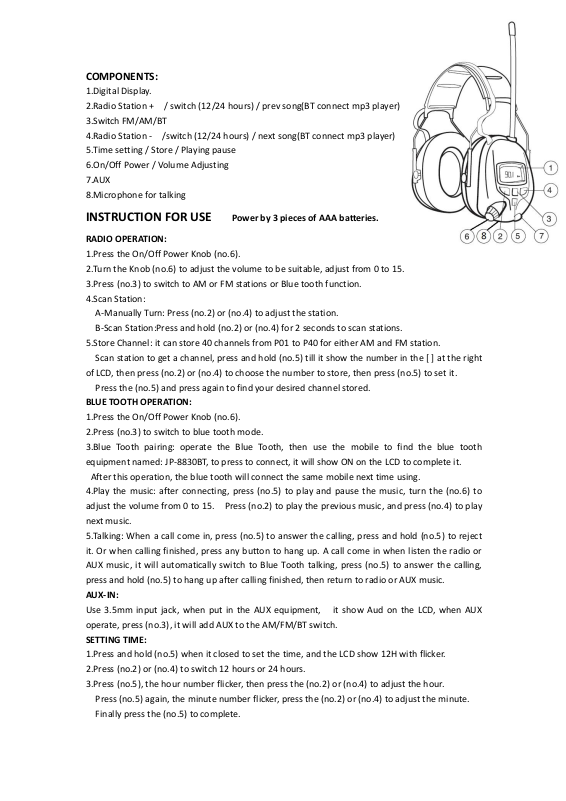

COMPONENTS:

1.Digital Display.

2.Radio Station + / switch (12/24 hours) / prev song(BT connect mp3 player)

3.Switch FM/AM/BT

4.Radio Station - /switch (12/24 hours) / next song(BT connect mp3 player)

5.Time setting / Store / Playing pause

6.On/Off Power / Volume Adjusting

7.AUX

8.Microphone for talking

INSTRUCTION FOR USE Power by 3 pieces of AAA batteries.

RADIO OPERATION:

1.Press the On/Off Power Knob (no.6).

2.Turn the Knob (no.6) to adjust the volume to be suitable, adjust from 0 to 15.

3.Press (no.3) to switch to AM or FM stations or Blue tooth function.

4.Scan Station:

A-Manually Turn: Press (no.2) or (no.4) to adjust the station.

5.Store Channel: it can store 40 channels from P01 to P40 for either AM and FM station.

1.Press the On/Off Power Knob (no.6).

2.Press (no.3) to switch to blue tooth mode.

3.Blue Tooth pairing: operate the Blue Tooth, then use the mobile to find the blue tooth

4.Play the music: after connecting, press (no.5) to play and pause the music, turn the (no.6) to

5.Talking: When a call come in, press (no.5) to answer the calling, press and hold (no.5) to reject

1.Press and hold (no.5) when it closed to set the time, and the LCD show 12H with flicker.

2.Press (no.2) or (no.4) to switch 12 hours or 24 hours.

3.Press (no.5), the hour number flicker, then press the (no.2) or (no.4) to adjust the hour.

B-Scan Station:Press and hold (no.2) or (no.4) for 2 seconds to scan stations.

Scan station to get a channel, press and hold (no.5) till it show the number in the [ ] at the right

of LCD, then press (no.2) or (no.4) to choose the number to store, then press (no.5) to set it.

Press the (no.5) and press again to find your desired channel stored.

BLUE TOOTH OPERATION:

equipment named: JP-8830BT, to press to connect, it will show ON on the LCD to complete it.

After this operation, the blue tooth will connect the same mobile next time using.

adjust the volume from 0 to 15. Press (no.2) to play the previous music, and press (no.4) to play

next music.

it. Or when calling finished, press any button to hang up. A call come in when listen the radio or

AUX music, it will automatically switch to Blue Tooth talking, press (no.5) to answer the calling,

press and hold (no.5) to hang up after calling finished, then return to radio or AUX music.

AUX-IN:

Use 3.5mm input jack, when put in the AUX equipment, it show Aud on the LCD, when AUX

operate, press (no.3), it will add AUX to the AM/FM/BT switch.

SETTING TIME:

Press (no.5) again, the minute number flicker, press the (no.2) or (no.4) to adjust the minute.

Finally press the (no.5) to complete.

Warning Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.

Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.


