Joy Cooper Interconnect SURE-MATE PLUGS Data Sheet

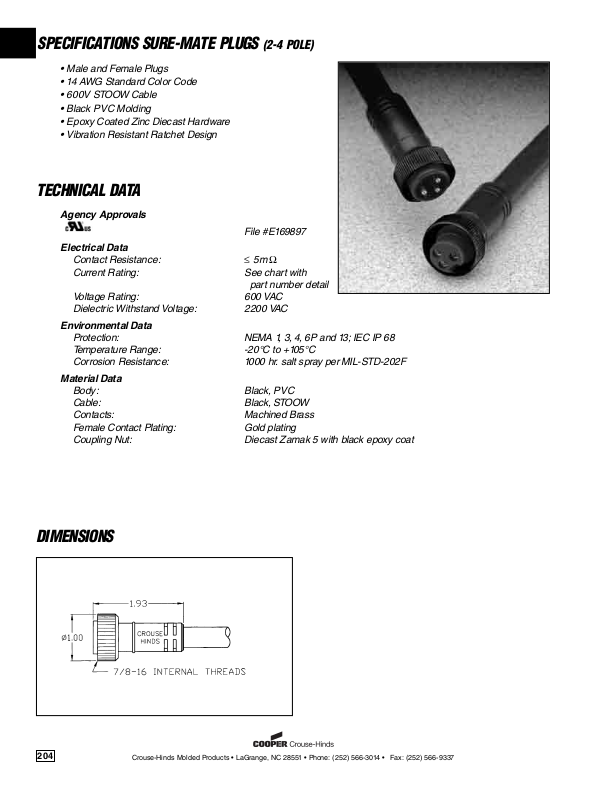

SPECIFICATIONS SURE-MATE PLUGS
• Male and Female Plugs
• 14 AWG Standard Color Code
• 600V STOOW Cable
• Black PVC Molding
• Epoxy Coated Zinc Diecast Hardware
• Vibration Resistant Ratchet Design
TECHNICAL DATA
Agency Approvals
File #E169897
Electrical Data
Contact Resistance:
Current Rating: See chart with
Voltage Rating: 600 VAC
Dielectric Withstand Voltage: 2200 VAC
Environmental Data
Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C
Corrosion Resistance: 1000 hr. salt spray per MIL-STD-202F
Material Data
Body: Black, PVC
Cable: Black, STOOW
Contacts: Machined Brass
Female Contact Plating: Gold plating
Coupling Nut: Diecast Zamak 5 with black epoxy coat
≤5mΩ
part number detail
(2-4 POLE)
DIMENSIONS
204
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
SURE-MATE FEMALE PLUG
WITH
EPOXY COATED ZINC DIECAST
COUPLING NUT
POLES FACE VIEW COLOR RATING AWG CABLE STRAIGHT
2 1. White 600V, 18A 14 6' 5000101-17
3 1. Green 600V, 18A 14 6' 5000102-17
4
FEMALE CODE LENGTH
2. Black 12' 5000101-18
2. Black 12' 5000102-18
3. White
1. Black 600V, 15A 14
2. White 12' 5000104-18
3. Red
4. Green
6' 5000104-17
SURE-MATE MALE PLUG
POLES FACE VIEW COLOR RATING AWG CABLE STRAIGHT
MALE CODE LENGTH
2 1. White 600V, 18A 14 6' 5000101-19
3 1. Green 600V, 18A 14 6' 5000102-19
4
Note: Special lengths available upon request — consult factory.
Nylon and stainless steel hardware available upon request — consult factory.
SEOW cable available upon request — consult factory.
Optional 12 AWG available upon request — consult factory.
WITH
EPOXY COATED ZINC DIECAST
2. Black 12' 5000101-20
2. Black 12' 5000102-20
3. White
1. Black 600V, 15A 14
2. White 12' 5000104-20
3. Red
4. Green
COUPLING NUT
6' 5000104-19
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
205
