Joy Cooper Interconnect PICO-LINE 8MM RECEPTACLES Data Sheet

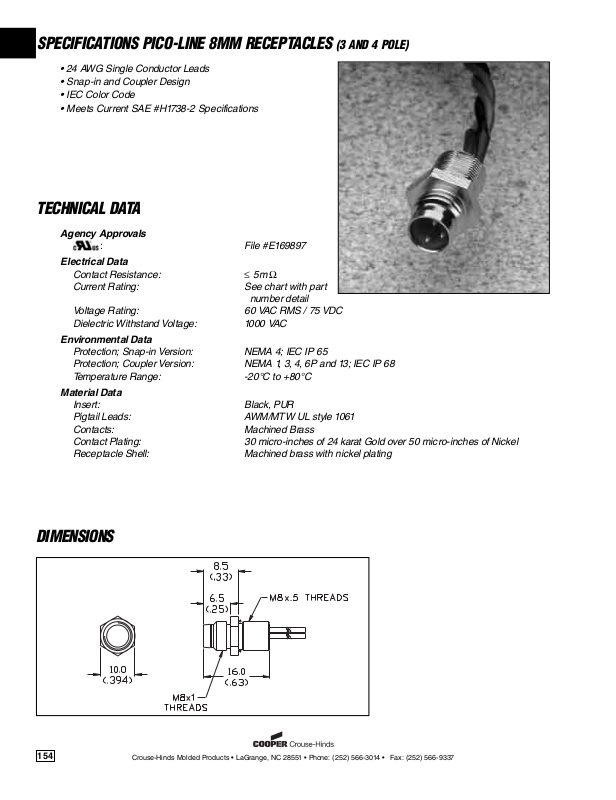

SPECIFICATIONS PICO-LINE 8MM RECEPTACLES

• 24 AWG Single Conductor Leads

• Snap-in and Coupler Design

• IEC Color Code

• Meets Current SAE #H1738-2 Specifications

TECHNICAL DATA

Agency Approvals

:

Electrical Data

Contact Resistance:
Current Rating: See chart with part

Voltage Rating: 60 VAC RMS / 75 VDC
Dielectric Withstand Voltage: 1000 VAC

Environmental Data

Protection; Snap-in Version: NEMA 4; IEC IP 65
Protection; Coupler Version: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +80°C

Material Data

Insert: Black, PUR
Pigtail Leads: AWM/MTW UL style 1061
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Receptacle Shell: Machined brass with nickel plating

File #E169897

≤5mΩ

number detail

(3 AND 4 POLE)

DIMENSIONS

154

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

PICO-LINE 8MM MALE RECEPTACLES

WITH

MACHINED BRASS

RECEPTACLE SHELL

POLES FACE VIEW COLOR RATING AWG CABLE LENGTH STRAIGHT

3 1. Blue 4A 24 0.5 5000125-1

4 1. Blue 4A 24 0.5 5000128-1

Note: Special lead lengths available upon request — consult factory.

MALE CODE (METERS) M8X0.5

2. Black

3. Brown

2. Black

3. Brown

4. White

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

155
