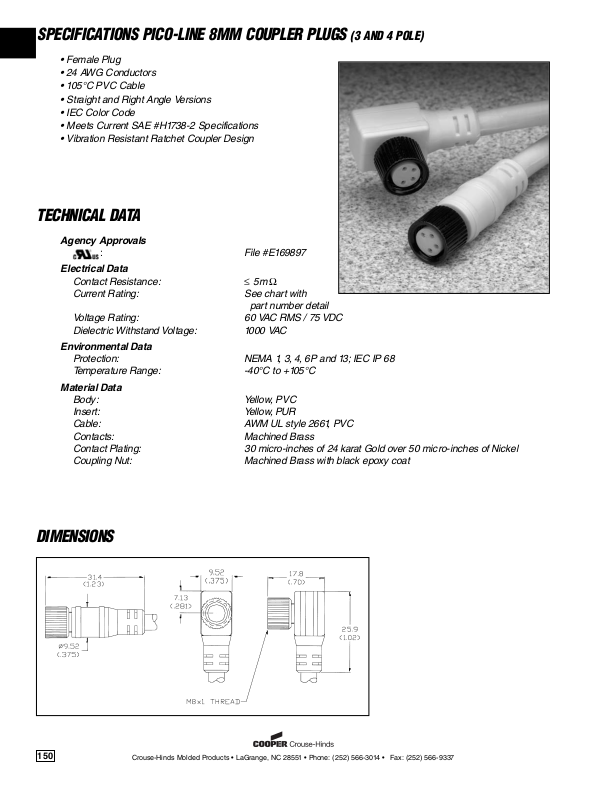

SPECIFICATIONS PICO-LINE 8MM COUPLER PLUGS

• Female Plug

• 24 AWG Conductors

• 105°C PVC Cable

• Straight and Right Angle Versions

• IEC Color Code

• Meets Current SAE #H1738-2 Specifications

• Vibration Resistant Ratchet Coupler Design

TECHNICAL DATA

Agency Approvals

:

Electrical Data

Contact Resistance:
Current Rating: See chart with

Voltage Rating: 60 VAC RMS / 75 VDC
Dielectric Withstand Voltage: 1000 VAC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -40°C to +105°C

Material Data

Body: Yellow, PVC
Insert: Yellow, PUR
Cable: AWM UL style 2661, PVC
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Machined Brass with black epoxy coat

File #E169897

≤5mΩ

part number detail

(3 AND 4 POLE)

DIMENSIONS

150

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

PICO-LINE 8MM FEMALE PLUG

WITH

MACHINED BRASS

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE LENGTH STRAIGHT RIGHT ANGLE

3 1. Brown 4A 24 2 5000125-3 5000125-8

4 1. Brown 4A 24 2 5000128-3 5000128-8

Note: Special lengths available upon request — consult factory.

FEMALE CODE (METERS)

2. Black 5 5000125-6 5000125-11

3. Blue

2. White 5 5000128-6 5000128-11

3. Blue

4. Black
