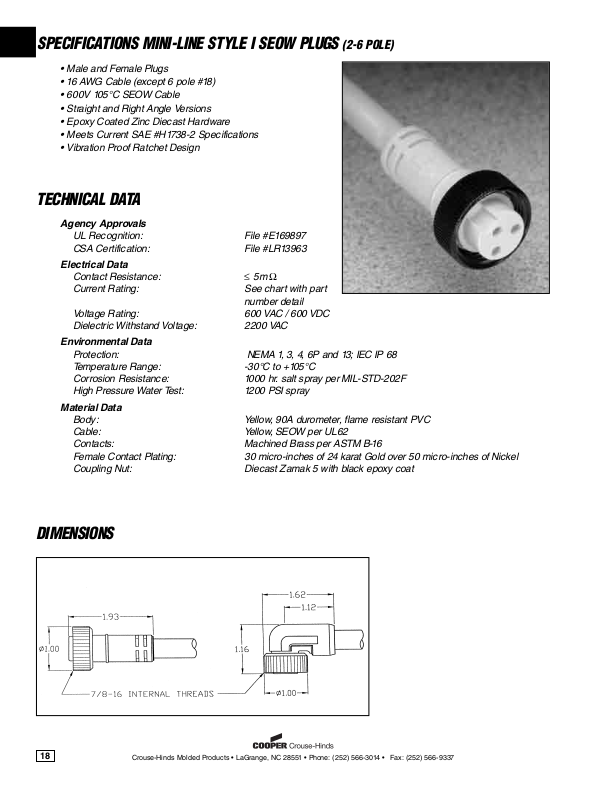

SPECIFICATIONS MINI-LINE STYLE I SEOW PLUGS
• Male and Female Plugs
• 16 AWG Cable (except 6 pole #18)
• 600V 105°C SEOW Cable
• Straight and Right Angle Versions
• Epoxy Coated Zinc Diecast Hardware
• Meets Current SAE #H1738-2 Specifications
• Vibration Proof Ratchet Design
TECHNICAL DATA
Agency Approvals
UL Recognition: File #E169897
CSA Certification: File #LR13963
Electrical Data
Contact Resistance:
Current Rating: See chart with part
Voltage Rating: 600 VAC / 600 VDC
Dielectric Withstand Voltage: 2200 VAC
Environmental Data
Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -30°C to +105°C
Corrosion Resistance: 1000 hr. salt spray per MIL-STD-202F
High Pressure Water Test: 1200 PSI spray
Material Data
Body: Yellow, 90A durometer, flame resistant PVC
Cable: Yellow, SEOW per UL62
Contacts: Machined Brass per ASTM B-16
Female Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Diecast Zamak 5 with black epoxy coat
≤5mΩ
number detail
(2-6 POLE)
DIMENSIONS
18
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
MINI-LINE SEOW FEMALE PLUG
POLES FACE VIEW COLOR RATING AWG CABLE STRAIGHT RIGHT ANGLE
FEMALE CODE LENGTH
2 1. White 600V, 13A 16 3' 5000108-3A 5000108-11A
2. Black 6' 5000108-4A 5000108-12A
3 1. Green 600V, 13A 16 3' 5000109-3A 5000109-11A
2. Black 6' 5000109-4A 5000109-12A
3. White 12' 5000109-5A 5000109-13A
4 1. Black 600V, 10A 16 3' 5000110-3A 5000110-11A
2. White 6' 5000110-4A 5000110-12A
3. Red 12' 5000110-5A 5000110-13A
4. Green 15' 5000110-4027A 5000110-4088A
5 1. White 600V, 8A 16 3' 5000111-3A 5000111-11A
2. Red 6' 5000111-4A 5000111-12A
3. Green 12' 5000111-5A 5000111-13A
4. Orange 15' 5000111-4093A 5000111-4049A
5. Black 20' 5000111-19A 5000111-20A
6 1. White 600V, 6A 18* 3' 5000120-3A 5000120-11A
2. Red 6' 5000120-4A 5000120-12A
3. Green 12' 5000120-5A 5000120-13A
4. Orange 15' 5000120-4052A 5000120-4053A
5. Black 20' 5000120-308A 5000120-20A
6. Blue 25' 5000120-309A 5000120-4021A
WITH
EPOXY COATED ZINC DIECAST
COUPLING NUT
12' 5000108-5A 5000108-13A
15' 5000108-110A 5000108-4036A
20' 5000108-61A 5000108-4037A
25' 5000108-4035A 5000108-4038A
30' 5000108-63A 5000108-4039A
15' 5000109-42A 5000109-4109A
20' 5000109-308A 5000109-20A
25' 5000109-309A 5000109-277A
30' 5000109-310A 5000109-4203A
20' 5000110-19A 5000110-20A
25' 5000110-624A 5000110-4073A
30' 5000110-310A 5000110-4089A
25' 5000111-4118A 5000111-4117A
30' 5000111-4015A 5000111-4111A
30' 5000120-310A 5000120-4022A
MINI-LINE SEOW MALE PLUG
POLES FACE VIEW COLOR RATING AWG CABLE STRAIGHT RIGHT ANGLE
MALE CODE LENGTH
2 1. White 600V, 13A 16 3' 5000108-6A 5000108-14A
2. Black 6' 5000108-7A 5000108-15A
3 1. Green 600V, 13A 16 3' 5000109-6A 5000109-14A
2. Black 6' 5000109-7A 5000109-15A
3. White 12' 5000109-8A 5000109-16A
4 1. Black 600V, 10A 16 3' 5000110-6A 5000110-14A
2. White 6' 5000110-7A 5000110-15A
3. Red 12' 5000110-8A 5000110-16A
4. Green 15' 5000110-4012A 5000110-4091A
5 1. White 600V, 8A 16 3' 5000111-6A 5000111-14A
2. Red 6' 5000111-7A 5000111-15A
3. Green 12' 5000111-8A 5000111-16A
4. Orange 15' 5000111-4194A 5000111-4195A
5. Black 20' 5000111-4112A 5000111-4135A
6 1. White 600V, 6A 18* 3' 5000120-6A 5000120-14A
2. Red 6' 5000120-7A 5000120-15A
3. Green 12' 5000120-8A 5000120-16A
4. Orange 15' 5000120-4040A 5000120-4056A
5. Black 20' 5000120-4054A 5000120-4057A
6. Blue 25' 5000120-4055A 5000120-4058A
*6 pole plugs use 18 gauge conductors for Style I.
Note: Special lengths available upon request — consult factory.
Nylon and stainless steel coupling nuts available — consult factory.
WITH
EPOXY COATED ZINC DIECAST
COUPLING NUT
12' 5000108-8A 5000108-16A
15' 5000108-4040A 5000108-4043A
20' 5000108-4041A 5000108-4044A
25' 5000108-101A 5000108-4045A
30' 5000108-4042A 5000108-4046A
15' 5000109-4204A 5000109-4205A
20' 5000109-4039A 5000109-4112A
25' 5000109-276A 5000109-4113A
30' 5000109-4010A 5000109-4114A
20' 5000110-4024A 5000110-4092A
25' 5000110-4090A 5000110-4093A
30' 5000110-162A 5000110-4094A
25' 5000111-4067A 5000111-4115A
30' 5000111-4014A 5000111-4196A
30' 5000120-4029A 5000120-4059A
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
19
