Joy Cooper Interconnect MINI-LINE STYLE I TAPPING TEE Data Sheet

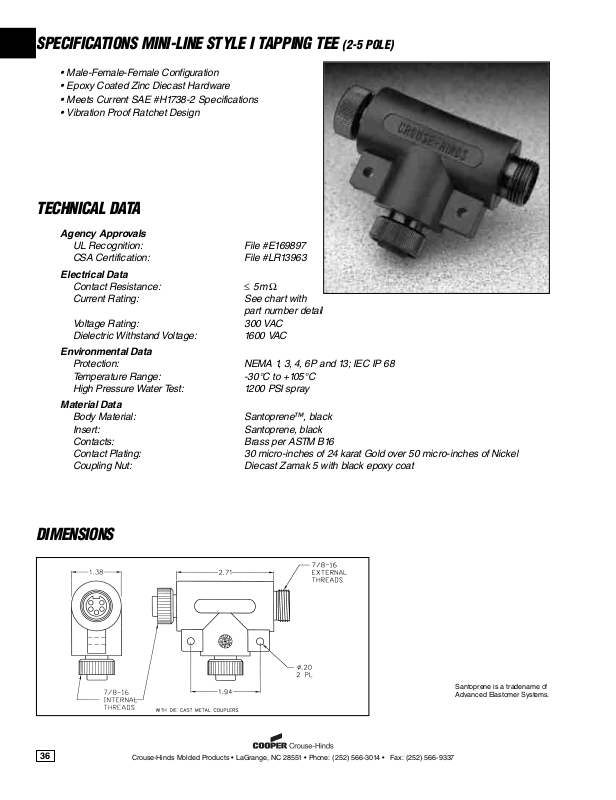

SPECIFICATIONS MINI-LINE STYLE I TAPPING TEE

• Male-Female-Female Configuration

• Epoxy Coated Zinc Diecast Hardware

• Meets Current SAE #H1738-2 Specifications

• Vibration Proof Ratchet Design

TECHNICAL DATA

Agency Approvals

UL Recognition: File #E169897
CSA Certification: File #LR13963

Electrical Data

Contact Resistance:
Current Rating: See chart with

Voltage Rating: 300 VAC
Dielectric Withstand Voltage: 1600 VAC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -30°C to +105°C
High Pressure Water Test: 1200 PSI spray

Material Data

Body Material: Santoprene™, black
Insert: Santoprene, black
Contacts: Brass per ASTM B16
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Diecast Zamak 5 with black epoxy coat

≤5mΩ

part number detail

(2-5 POLE)

DIMENSIONS

36

Santoprene is a tradename of
Advanced Elastomer Systems.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

MINI-LINE STYLE I TAPPING TEE

PO LES FACE V IEW CO LO R RAT ING AW G PART N UMBER

2 1. White 300V, 13A 16 5000108-362

3 1. Green 300V, 13A 16 5000109-362

4 1. Black 300V, 10A 16 5000110-362

5 1. White 300V, 8A 16 5000111-362

Note: Stainless steel coupling nut available — consult factory.

FEMALE CODE

2. Black

2. Black

3. White

2. White

3. Red

4. Green

2. Red

3. Green

4. Orange

5. Black

WIRING DIAGRAM

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

37
