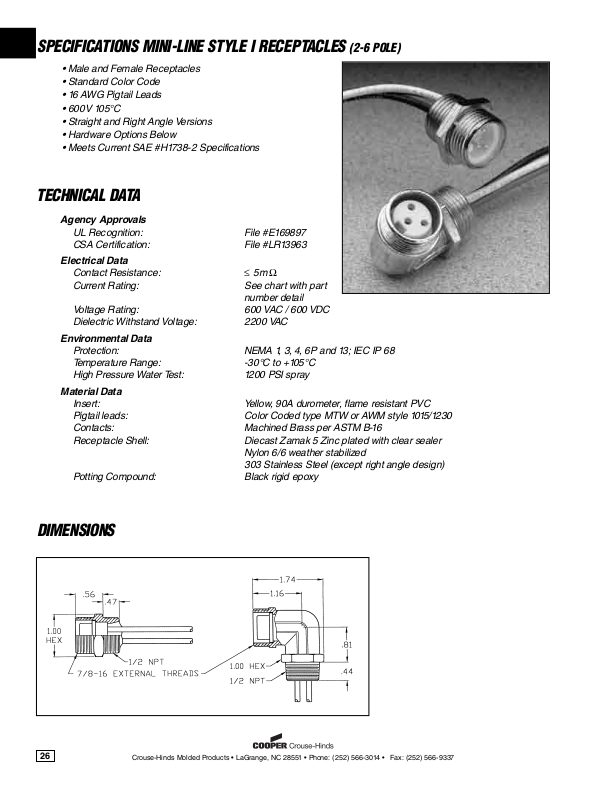

SPECIFICATIONS MINI-LINE STYLE I RECEPTACLES
• Male and Female Receptacles
• Standard Color Code
• 16 AWG Pigtail Leads
• 600V 105°C
• Straight and Right Angle Versions
• Hardware Options Below
• Meets Current SAE #H1738-2 Specifications
TECHNICAL DATA
Agency Approvals
UL Recognition: File #E169897
CSA Certification: File #LR13963
Electrical Data
Contact Resistance:
Current Rating: See chart with part
Voltage Rating: 600 VAC / 600 VDC
Dielectric Withstand Voltage: 2200 VAC
Environmental Data
Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -30°C to +105°C
High Pressure Water Test: 1200 PSI spray
Material Data
Insert: Yellow, 90A durometer, flame resistant PVC
Pigtail leads: Color Coded type MTW or AWM style 1015/1230
Contacts: Machined Brass per ASTM B-16
Receptacle Shell: Diecast Zamak 5 Zinc plated with clear sealer
Potting Compound: Black rigid epoxy
≤5mΩ
number detail
Nylon 6/6 weather stabilized
303 Stainless Steel (except right angle design)
(2-6 POLE)
DIMENSIONS
26
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
MINI-LINE FEMALE RECEPTACLE
WITH
ZINC DIECAST
RECEPTACLE SHELL
POLES FACE VIEW COLOR RATING AWG LEAD STRAIGHT RIGHT ANGLE
2 1. White 600V, 13A 16 10" 5000108-9 5000108-17
3 1. Green 600V, 13A 16 10" 5000109-9 5000109-17
4 1. Black 600V, 10A 16 10" 5000110-9 5000110-17
5 1. White 600V, 8A 16 10" 5000111-9 5000111-17
6 1. White 600V, 6A 16 10" 5000120-9 5000120-17
FEMALE CODE LENGTH
2. Black
2. Black
3. White
2. White
3. Red
4. Green
2. Red
3. Green
4. Orange
5. Black
2. Red
3. Green
4. Orange
5. Black
6. Blue
MINI-LINE MALE RECEPTACLE
POLES FACE VIEW COLOR RATING AWG LEAD STRAIGHT RIGHT ANGLE
MALE CODE LENGTH
2 1. White 600V, 13A 16 10" 5000108-10 5000108-18
2. Black
3 1. Green 600V, 13A 16 10" 5000109-10 5000109-18
2. Black
3. White
4 1. Black 600V, 10A 16 10" 5000110-10 5000110-18
2. White
3. Red
4. Green
5 1. White 600V, 8A 16 10" 5000111-10 5000111-18
2. Red
3. Green
4. Orange
5. Black
6 1. White 600V, 6A 16 10" 5000120-10 5000120-18
2. Red
3. Green
4. Orange
5. Black
6. Blue
Note: Special lead lengths available upon request — consult factory.
