Joy Cooper Interconnect MINI-LINE STYLE III STOOW PLUGS Data Sheet
SPECIFICATIONS MINI-LINE STYLE III STOOW PLUGS
• Male and Female Plugs
• 16 AWG Standard Color Code
• 600V 105°C STOOW Cable
• Straight and Right Angle Versions
• Hardware Options Below
• Meets Current SAE #H1738-2 Specifications
TECHNICAL DATA
Agency Approvals
UL Recognition: File #E169897
CSA Certification: File #LR13963
Electrical Data
Contact Resistance:
Current Rating: See chart with part
Voltage Rating: 600 VAC / 600 VDC
Dielectric Withstand Voltage: 2200 VAC
Environmental Data
Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -40°C to +105°C
Material Data
Body: Yellow, 82A durometer, flame resistant PVC
Cable: Yellow, STOOW per UL62
Contacts: Machined Brass per ASTM B-16
Female Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Machined Aluminum with anodize finish and clear sealant
≤5mΩ
number detail
303 Stainless Steel
(9, 10 AND 12 POLE)
DIMENSIONS
54
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
MINI-LINE STOOW FEMALE PLUG
WITH
MACHINED ALUMINUM
COUPLING NUT

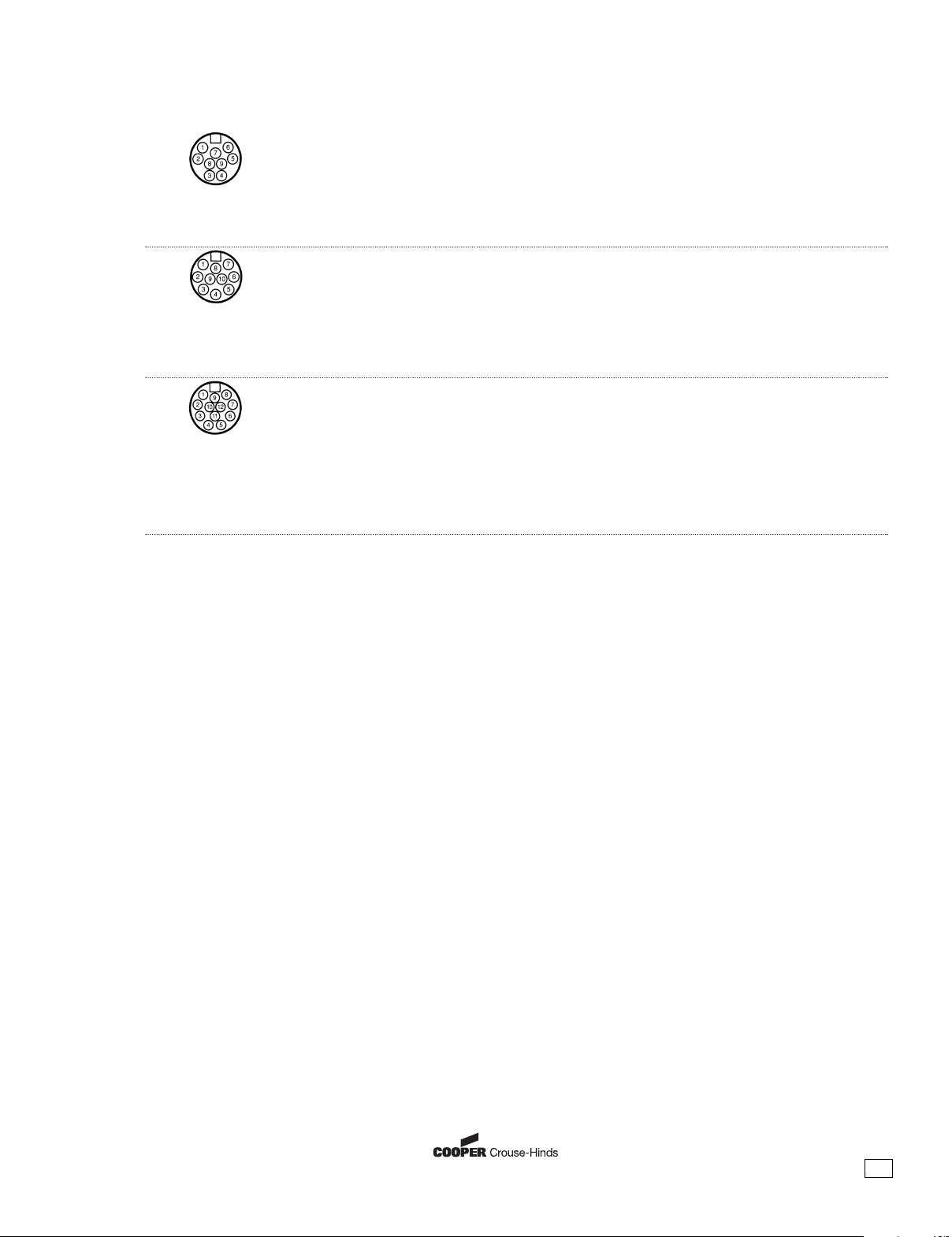

POLES FACE VIEW COLOR RATING AWG CABLE STRAIGHT RIGHT ANGLE
9 1. Orange 600V, 7A 16 3' X8990-3 X8990-80
10 1. Orange 600V, 7A 16 3' X8991-3 X8991-145
12 1. Orange 600V, 7A 16 3' X8992-3 X8992-110
FEMALE CODE LENGTH
2. Blue 6' X8990-4 X8990-81
3. Red-Black 12' X8990-5 X8990-82
4. Green-Black 15' X8990-4027 X8990-83
5. White 20' X8990-69 X8990-84
6. Red 25' X8990-70 X8990-85
7. Green 30' X8990-71 X8990-86
8. White-Black
9. Black
2. Blue 6' X8991-4 X8991-146
3. White-Black 12' X8991-5 X8991-147
4. Red-Black 15' X8991-4004 X8991-148
5. Green-Black 20' X8991-69 X8991-149
6. Orange-Black 25' X8991-70 X8991-150
7. Red 30' X8991-71 X8991-151
8. Green
9. Black
10. W h ite
2. Blue 6' X8992-4 X8992-111
3. White-Black 12' X8992-5 X8992-112
4. Red-Black 15' X8992-4036 X8992-113
5. Green-Black 20' X8992-69 X8992-114
6. Orange-Black 25' X8992-70 X8992-115
7. Blue-Black 30' X8992-71 X8992-116
8. Black-White
9. Green
10. R e d
11. Wh i t e
12. Black
MINI-LINE STOOW MALE PLUG
POLES FACE VIEW COLOR RATING AWG CABLE STRAIGHT RIGHT ANGLE
MALE CODE LENGTH
9 1. Orange 600V, 7A 16 3' X8990-6 X8990-87
2. Blue 6' X8990-7 X8990-88
3. Red-Black 12' X8990-8 X8990-89
4. Green-Black 15' X8990-4028 X8990-90
5. White 20' X8990-4029 X8990-91
6. Red 25' X8990-4030 X8990-92
7. Green 30' X8990-4017 X8990-93
8. White-Black
9. Black
10 1. Orange 600V, 7A 16 3' X8991-6 X8991-152
2. Blue 6' X8991-7 X8991-153
3. White-Black 12' X8991-8 X8991-154
4. Red-Black 15' X8991-4067 X8991-155
5. Green-Black 20' X8991-4068 X8991-156
6. Orange-Black 25' X8991-4069 X8991-157
7. Red 30' X8991-4039 X8991-158
8. Green
9. Black
10. W h ite
12 1. Orange 600V, 7A 16 3' X8992-6 X8992-117
2. Blue 6' X8992-7 X8992-118
3. White-Black 12' X8992-8 X8992-119
4. Red-Black 15' X8992-615 X8992-120
5. Green-Black 20' X8992-4014 X8992-121
6. Orange-Black 25' X8992-4043 X8992-122
7. Blue-Black 30' X8992-4031 X8992-123
8. Black-White
9. Green
10. R e d
11. Wh i t e
12. Black
Note: Special lengths available upon request — consult factory.
WITH
MACHINED ALUMINUM
COUPLING NUT
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
55
