Joy Cooper Interconnect MINI-LINE STYLE III RECEPTACLES Data Sheet

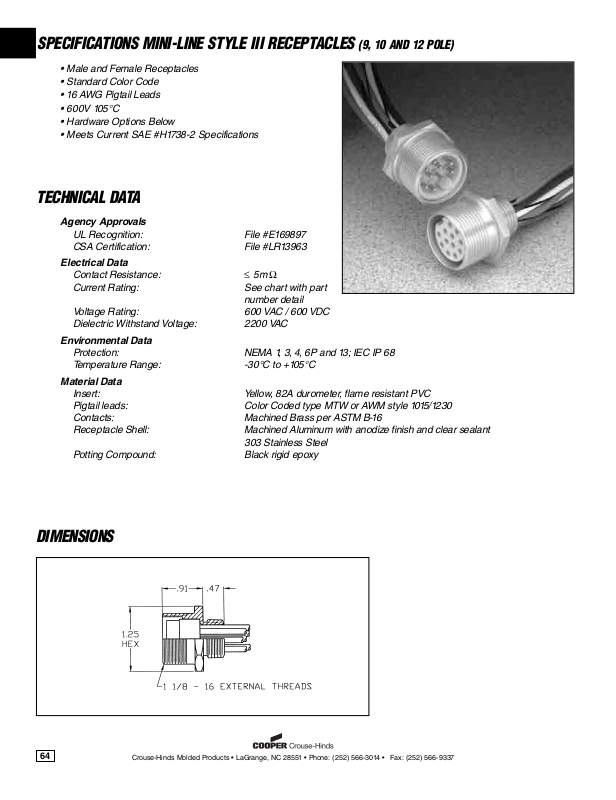

SPECIFICATIONS MINI-LINE STYLE III RECEPTACLES
• Male and Female Receptacles
• Standard Color Code
• 16 AWG Pigtail Leads
• 600V 105°C
• Hardware Options Below
• Meets Current SAE #H1738-2 Specifications
TECHNICAL DATA
Agency Approvals
UL Recognition: File #E169897
CSA Certification: File #LR13963
Electrical Data
Contact Resistance:
Current Rating: See chart with part
Voltage Rating: 600 VAC / 600 VDC
Dielectric Withstand Voltage: 2200 VAC
Environmental Data
Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -30°C to +105°C
Material Data
Insert: Yellow, 82A durometer, flame resistant PVC
Pigtail leads: Color Coded type MTW or AWM style 1015/1230
Contacts: Machined Brass per ASTM B-16
Receptacle Shell: Machined Aluminum with anodize finish and clear sealant
Potting Compound: Black rigid epoxy
≤5mΩ
number detail
303 Stainless Steel
(9, 10 AND 12 POLE)
DIMENSIONS
64
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
MINI-LINE FEMALE RECEPTACLES
WITH
MACHINED ALUMINUM
RECEPTACLE SHELL
POLES FACE VIEW COLOR RATING AWG LEAD 1/2" NPT
9 1. Orange 600V, 7A 16 12" X8990-1
10 1. Orange 600V, 7A 16 12" X8991-1
12 1. Orange 600V, 7A 16 12" X8992-1
FEMALE CODE LENGTH
2. Blue
3. Red-Black
4. Green-Black
5. White
6. Red
7. Gr e e n
8. White-Black
9. Black
2. Blue
3. White-Black
4. Red-Black
5. Green-Black
6. Orange-Black
7. Re d
8. Green
9. Black
10. W h ite
2. Blue
3. White-Black
4. Red-Black
5. Green-Black
6. Orange-Black
7. Blue-Black
8. Black-White
9. Green
10. R e d
11. Wh i t e
12. Black
MINI-LINE MALE RECEPTACLES
POLES FACE VIEW COLOR RATING AWG LEAD 1/2" NPT
MALE CODE LENGTH
9 1. Orange 600V, 7A 16 12" X8990-2
2. Blue
3. Red-Black
4. Green-Black
5. White
6. Red
7. Gr e e n
8. White-Black
9. Black
10 1. Orange 600V, 7A 16 12" X8991-2
2. Blue
3. White-Black
4. Red-Black
5. Green-Black
6. Orange-Black
7. Re d
8. Green
9. Black
10. W h ite
12 1. Orange 600V, 7A 16 12" X8992-2
2. Blue
3. White-Black
4. Red-Black
5. Green-Black
6. Orange-Black
7. Blue-Black
8. Black-White
9. Green
10. R e d
11. Wh i t e
12. Black
Note: Special lead lengths available upon request — consult factory.
WITH
MACHINED ALUMINUM
RECEPTACLE SHELL
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
65
