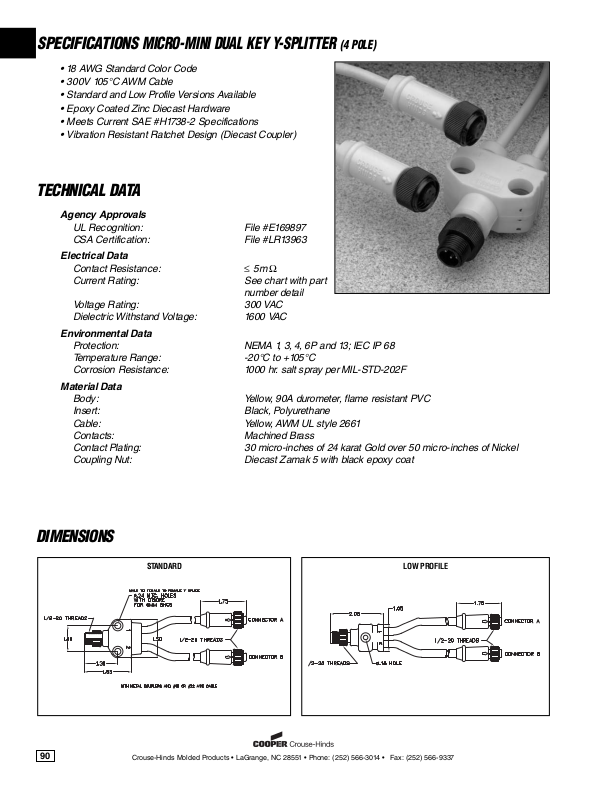

Joy Cooper Interconnect MICRO-MINI DUAL KEY Y-SPLITTER Data Sheet

SPECIFICATIONS

• 18 AWG Standard Color Code

• 300V 105°C AWM Cable

• Standard and Low Profile Versions Available

• Epoxy Coated Zinc Diecast Hardware

• Meets Current SAE #H1738-2 Specifications

• Vibration Resistant Ratchet Design (Diecast Coupler)

MICRO-MINI DUAL KEY Y-SPLITTER (4 POLE)

TECHNICAL DATA

Agency Approvals

UL Recognition: File #E169897
CSA Certification: File #LR13963

Electrical Data

Contact Resistance:
Current Rating: See chart with part

Voltage Rating: 300 VAC
Dielectric Withstand Voltage: 1600 VAC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C
Corrosion Resistance: 1000 hr. salt spray per MIL-STD-202F

Material Data

Body: Yellow, 90A durometer, flame resistant PVC
Insert: Black, Polyurethane
Cable: Yellow, AWM UL style 2661
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Diecast Zamak 5 with black epoxy coat

≤5mΩ

number detail

DIMENSIONS

90

STANDARD LOW PROFILE

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

MICRO-MINI DUAL KEY Y-SPLITTER

POLES FACE VIEW COLOR RATING AWG CABLE STANDARD LOW PROFILE

4 1. Red-Black 300V, 5A 18 12" 5000115-273 5000115-153

Note: Special lengths available upon request — consult factory.

MALE CODE LENGTH

2. Red-White

3. Red

4. Green

Stainless steel coupling nut available — consult factory.

WIRING DIAGRAM
