Joy Cooper Interconnect MICRO-MINI DUAL KEY MALE TO FEMALE EXTENSIONS Data Sheet

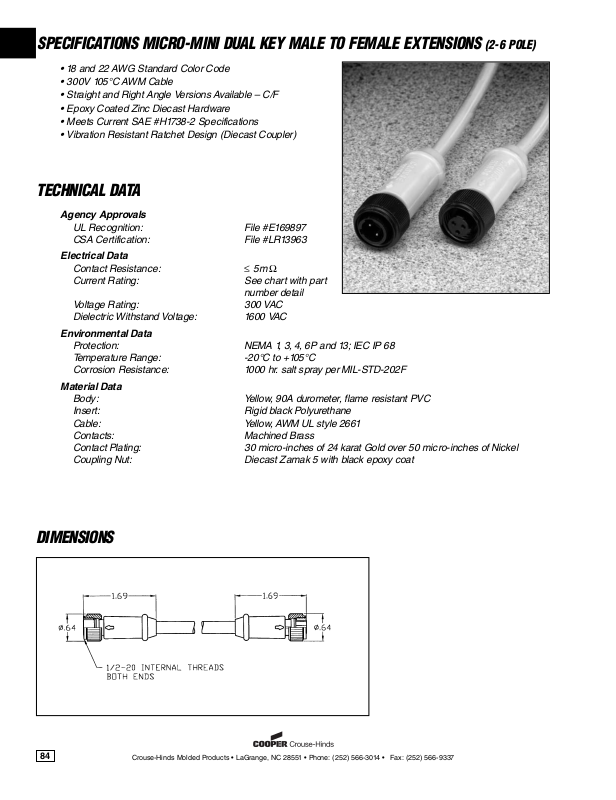

SPECIFICATIONS MICRO-MINI DUAL KEY MALE TO FEMALE EXTENSIONS
• 18 and 22 AWG Standard Color Code
• 300V 105°C AWM Cable
• Straight and Right Angle Versions Available – C/F
• Epoxy Coated Zinc Diecast Hardware
• Meets Current SAE #H1738-2 Specifications
• Vibration Resistant Ratchet Design (Diecast Coupler)
TECHNICAL DATA
Agency Approvals
UL Recognition: File #E169897
CSA Certification: File #LR13963
Electrical Data
Contact Resistance:
Current Rating: See chart with part
Voltage Rating: 300 VAC
Dielectric Withstand Voltage: 1600 VAC
Environmental Data
Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C
Corrosion Resistance: 1000 hr. salt spray per MIL-STD-202F
Material Data
Body: Yellow, 90A durometer, flame resistant PVC
Insert: Rigid black Polyurethane
Cable: Yellow, AWM UL style 2661
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Diecast Zamak 5 with black epoxy coat
≤5mΩ
number detail
(2-6 POLE)
DIMENSIONS
84
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
MICRO-MINI DUAL KEY MALE TO FEMALE EXTENSIONS
WITH
EPOXY COATED ZINC DIECAST
COUPLING NUT
POLES FACE VIEW COLOR RATING AWG CABLE MALE TO FEMALE
2 1. Brown 300V, 4A 22 6' 5000113-204
3 1. Green 300V, 4A 22 6' 5000114-204
4 1. Red-Black 300V, 4A 22 6' 5000115-204
5 1. Red-White 300V, 4A 22 6' 5000116-204
6 1. Red-White 300V, 4A 22 6' 5000127-204
MALE CODE LENGTH EXTENSIONS
2. Blue 12' 5000113-205
20' 5000113-206
25' 5000113-4053
30' 5000113-4054
2. Red-Black 12' 5000114-205
3. Red-White 20' 5000114-206
25' 5000114-4125
30' 5000114-4126
2. Red-White 12' 5000115-205
3. Red 20' 5000115-206
4. Green 25' 5000115-4080
30' 5000115-4081
2. Red 12' 5000116-205
3. Green 20' 5000116-206
4. Red-Yellow 25' 5000116-4086
5. Red-Black 30' 5000116-4087
2. Red 12' 5000127-205
3. Green 20' 5000127-206
4. Red-Yellow 25' 5000127-4035
5. Red-Black 30' 5000127-4036
6. Red-Blue
MICRO-MINI DUAL KEY MALE TO FEMALE EXTENSIONS
WITH
EPOXY COATED ZINC DIECAST
POLES FACE VIEW COLOR RATING AWG CABLE MALE TO FEMALE
MALE CODE LENGTH EXTENSIONS
2 1. Brown 300V, 5A 18 6' 5000113-201
2. Blue 12' 5000113-202
3 1. Green 300V, 5A 18 6' 5000114-201
2. Red-Black 12' 5000114-202
3. Red-White 20' 5000114-203
4 1. Red-Black 300V, 5A 18 6' 5000115-201
2. Red-White 12' 5000115-202
3. Red 20' 5000115-203
4. Green 25' 5000115-4082
5 1. Red-White 300V, 5A 18 6' 5000116-201
2. Red 12' 5000116-202
3. Green 20' 5000116-203
4. Red-Yellow 25' 5000116-4088
5. Red-Black 30' 5000116-4089
Note: Special lengths available upon request — consult factory.
Male in-line coupling nut available upon request — consult factory.
Nylon and stainless steel available upon request — consult factory.
Right angle male and female plugs available — consult factory.
COUPLING NUT
20' 5000113-203
25' 5000113-4055
30' 5000113-4056
25' 5000114-4127
30' 5000114-4128
30' 5000115-4083
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
85
