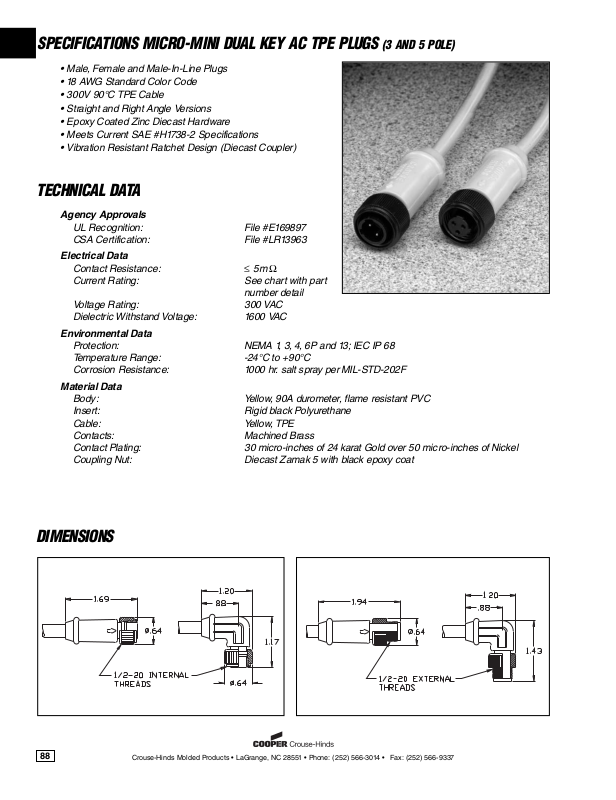

Joy Cooper Interconnect MICRO-MINI DUAL KEY AC TPE PLUGS Data Sheet

SPECIFICATIONS MICRO-MINI DUAL KEY AC TPE PLUGS

• Male, Female and Male-In-Line Plugs

• 18 AWG Standard Color Code

• 300V 90°C TPE Cable

• Straight and Right Angle Versions

• Epoxy Coated Zinc Diecast Hardware

• Meets Current SAE #H1738-2 Specifications

• Vibration Resistant Ratchet Design (Diecast Coupler)

TECHNICAL DATA

Agency Approvals

UL Recognition: File #E169897
CSA Certification: File #LR13963

Electrical Data

Contact Resistance:
Current Rating: See chart with part

Voltage Rating: 300 VAC
Dielectric Withstand Voltage: 1600 VAC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -24°C to +90°C
Corrosion Resistance: 1000 hr. salt spray per MIL-STD-202F

Material Data

Body: Yellow, 90A durometer, flame resistant PVC
Insert: Rigid black Polyurethane
Cable: Yellow, TPE
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Diecast Zamak 5 with black epoxy coat

≤5mΩ

number detail

(3 AND 5 POLE)

DIMENSIONS

88

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

MICRO-MINI DUAL KEY FEMALE PLUG

TPE CABLE

POLES FACE VIEW COLOR RATING AWG CABLE STRAIGHT RIGHT ANGLE

3 1. Green 300V, 5A 18 6' 5000114-8A 5000114-11A

5 1. Red-White 300V, 5A 18 6' 5000116-8A 5000116-11A

MICRO-MINI DUAL KEY MALE PLUG

POLES FACE VIEW COLOR RATING AWG CABLE STRAIGHT RIGHT ANGLE

3 1. Green 300V, 5A 18 6' 5000114-20A 5000114-23A

5 1. Red-White 300V, 5A 18 6' 5000116-20A 5000116-23A

FEMALE CODE LENGTH

2. Red-Black 12' 5000114-9A 5000114-12A

3. Red-White 20' 5000114-10A 5000114-13A
25' 5000114-4111A 5000114-4112A
30' 5000114-4037A 5000114-4045A

2. Red 12' 5000116-9A 5000116-12A

3. Green 20' 5000116-10A 5000116-13A

4. Red-Yellow 25' 5000116-4067A 5000116-4068A

4. Red-Black 30' 5000116-4033A 5000116-4069A

TPE CABLE

MALE CODE LENGTH

2. Red-Black 12' 5000114-21A 5000114-24A

3. Red-White 20' 5000114-22A 5000114-25A
25' 5000114-4114A 5000114-4115A
30' 5000114-4116A 5000114-4117A

2. Red 12' 5000116-21A 5000116-24A

3. Green 20' 5000116-22A 5000116-25A

4. Red-Yellow 25' 5000116-4070A 5000116-4071A

4. Red-Black 30' 5000116-4072A 5000116-4073A

MICRO-MINI DUAL KEY MALE-IN-LINE PLUG

POLES FACE VIEW COLOR RATING AWG CABLE STRAIGHT RIGHT ANGLE

MALE CODE LENGTH

3 1. Green 300V, 5A 18 6' 5000114-62A 5000114-68A

2. Red-Black 12' 5000114-63A 5000114-69A

3. Red-White 20' 5000114-64A 5000114-70A

5 1. Red-White 300V, 5A 18 6' 5000116-62A 5000116-68A

2. Red 12' 5000116-63A 5000116-69A

3. Green 20' 5000116-64A 5000116-70A

4. Red-Yellow 25' 5000116-4076A 5000116-4077A

4. Red-Black 30' 5000116-4078A 5000116-4079A

Note: Special lengths available upon request — consult factory.

Stainless steel coupling nut available — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

TPE CABLE

25' 5000114-4121A 5000114-4122A
30' 5000114-4123A 5000114-4124A
