Joy Cooper Interconnect MICRO-MINI DC DIN Y-SPLITTER Data Sheet

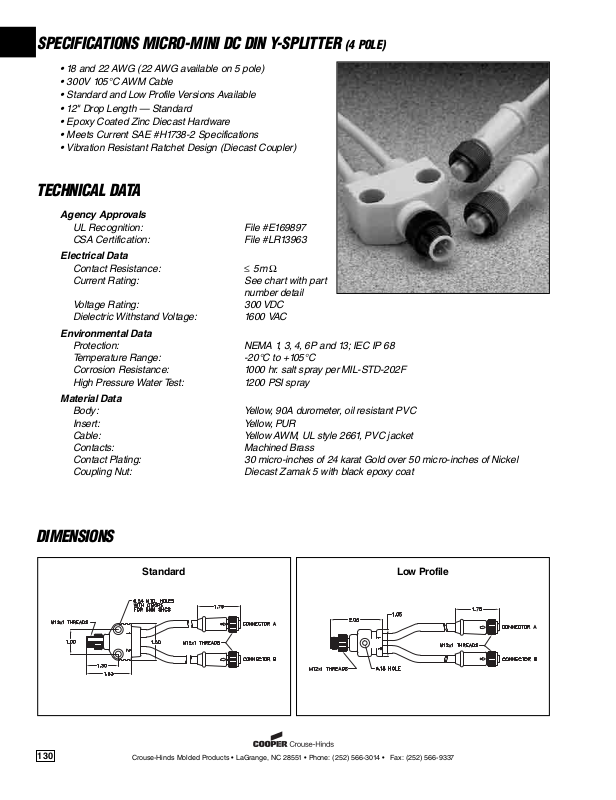

SPECIFICATIONS MICRO-MINI DC DIN Y-SPLITTER

• 18 and 22 AWG (22 AWG available on 5 pole)

• 300V 105°C AWM Cable

• Standard and Low Profile Versions Available

• 12" Drop Length — Standard

• Epoxy Coated Zinc Diecast Hardware

• Meets Current SAE #H1738-2 Specifications

• Vibration Resistant Ratchet Design (Diecast Coupler)

TECHNICAL DATA

Agency Approvals

UL Recognition: File #E169897
CSA Certification: File #LR13963

Electrical Data

Contact Resistance:
Current Rating: See chart with part

Voltage Rating: 300 VDC
Dielectric Withstand Voltage: 1600 VAC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C
Corrosion Resistance: 1000 hr. salt spray per MIL-STD-202F
High Pressure Water Test: 1200 PSI spray

Material Data

Body: Yellow, 90A durometer, oil resistant PVC
Insert: Yellow, PUR
Cable: Yellow AWM, UL style 2661, PVC jacket
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Diecast Zamak 5 with black epoxy coat

≤5mΩ

number detail

(4 POLE)

DIMENSIONS

130

Standard Low Profile

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

MICRO-MINI DC DIN Y-SPLITTER

POLES FACE VIEW COLOR RATING AWG CABLE STANDARD LOW PROFILE

4 1. Brown 300V, 4A 22 12" 5000118-197 5000118-317

FEMALE CODE LENGTH

2. Not Connected

3. Blue

4. Black (1)

4. White (2)

5. Not Used

MICRO-MINI DC DIN Y-SPLITTER

POLES FACE VIEW COLOR RATING AWG CABLE STANDARD LOW PROFILE

4 1. Brown 300V, 5A 18 12" 5000118-198 5000118-318

Note: Special lengths available upon request — consult factory.

FEMALE CODE LENGTH

2. Not Connected

3. Blue

4. Black (1)

4. White (2)

5. Not Used

Stainless steel coupling nut available — consult factory.

WIRING DIAGRAM

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

131
