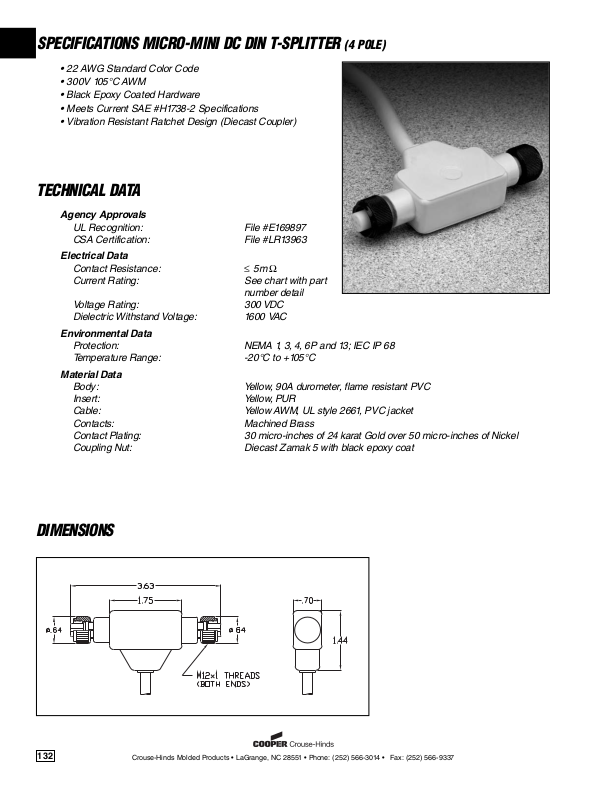

SPECIFICATIONS MICRO-MINI DC DIN T-SPLITTER

• 22 AWG Standard Color Code

• 300V 105°C AWM

• Black Epoxy Coated Hardware

• Meets Current SAE #H1738-2 Specifications

• Vibration Resistant Ratchet Design (Diecast Coupler)

TECHNICAL DATA

Agency Approvals

UL Recognition: File #E169897
CSA Certification: File #LR13963

Electrical Data

Contact Resistance:
Current Rating: See chart with part

Voltage Rating: 300 VDC
Dielectric Withstand Voltage: 1600 VAC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C

Material Data

Body: Yellow, 90A durometer, flame resistant PVC
Insert: Yellow, PUR
Cable: Yellow AWM, UL style 2661, PVC jacket
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Diecast Zamak 5 with black epoxy coat

≤5mΩ

number detail

(4 POLE)

DIMENSIONS

132

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

MICRO-MINI DC DIN T-SPLITTER

POLES FACE VIEW COLOR RATING AWG CABLE LENGTH SPLITTER

4 1. Brown 300, 4A 22 1 5000118-192

Note: Special lengths available upon request — consult factory.

Nylon and stainless steel coupling nuts available — consult factory.

WIRING DIAGRAM

FEMALE CODE (METERS)

2. Not Connected 2 5000118-193

3. Blue 4 5000118-194

4. Black (1) 5 5000118-195

4. White (2) 10 5000118-196
