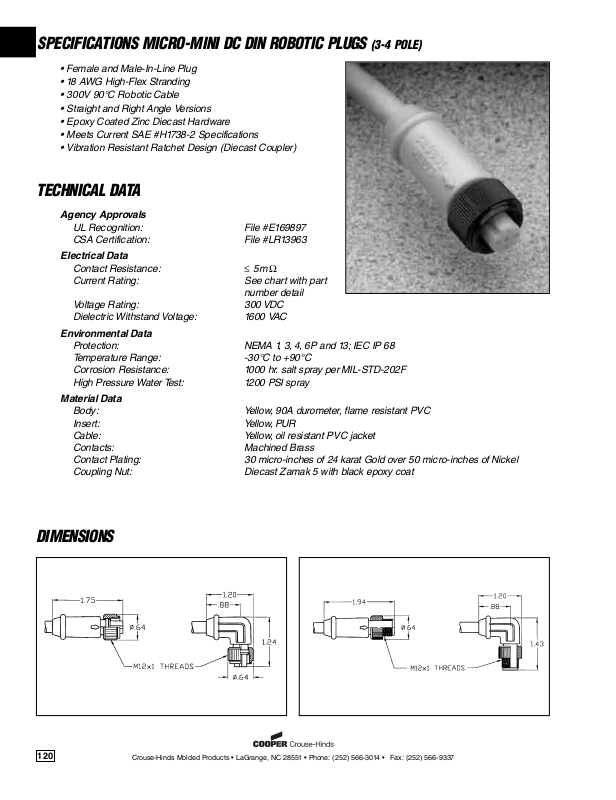

Joy Cooper Interconnect MICRO-MINI DC DIN ROBOTIC PLUGS Data Sheet
SPECIFICATIONS MICRO-MINI DC DIN ROBOTIC PLUGS
• Female and Male-In-Line Plug
• 18 AWG High-Flex Stranding
• 300V 90°C Robotic Cable
• Straight and Right Angle Versions
• Epoxy Coated Zinc Diecast Hardware
• Meets Current SAE #H1738-2 Specifications
• Vibration Resistant Ratchet Design (Diecast Coupler)
TECHNICAL DATA
Agency Approvals
UL Recognition: File #E169897
CSA Certification: File #LR13963
Electrical Data
Contact Resistance:
Current Rating: See chart with part
Voltage Rating: 300 VDC
Dielectric Withstand Voltage: 1600 VAC
Environmental Data
Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -30°C to +90°C
Corrosion Resistance: 1000 hr. salt spray per MIL-STD-202F
High Pressure Water Test: 1200 PSI spray
Material Data
Body: Yellow, 90A durometer, flame resistant PVC
Insert: Yellow, PUR
Cable: Yellow, oil resistant PVC jacket
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Diecast Zamak 5 with black epoxy coat
≤5mΩ
number detail
(3-4 POLE)
DIMENSIONS
120
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
1
2
3
5
4
1
2
3
5
4
MICRO-MINI DC DIN ROBOTIC FEMALE PLUG
WITH
EPOXY COATED ZINC DIECAST
COUPLING NUT
POLES FACE VIEW COLOR RATING AWG CABLE LENGTH STRAIGHT RIGHT ANGLE
FEMALE CODE (METERS)
3 1. Black #1 300V, 5A 18 1 5000117-2R 5000117-7R
2. Not Used 2 5000117-3R 5000117-8R
3. Black #2 3 5000117-4R 5000117-9R
4. Green/Yellow 4 5000117-5R 5000117-10R
5. Not Used 5 5000117-6R 5000117-11R
4 1. Black #1 300V, 5A 18 1 5000118-2R 5000118-7R
2. Black #2 2 5000118-3R 5000118-8R
3. Black #3 3 5000118-4R 5000118-9R
4. Green/Yellow 4 5000118-5R 5000118-10R
5. Not Used 5 5000118-6R 5000118-11R
MICRO-MINI DC DIN ROBOTIC MALE-IN-LINE PLUG
WITH
EPOXY COATED ZINC DIECAST
POLES FACE VIEW COLOR RATING AWG CABLE LENGTH STRAIGHT RIGHT ANGLE
MALE CODE (METERS)
3 1. Black #1 300V, 5A 18 1 5000117-13R 5000117-18R
2. Not Used 2 5000117-14R 5000117-19R
3. Black #2 3 5000117-15R 5000117-20R
4. Green/Yellow 4 5000117-16R 5000117-21R
5. Not Used 5 5000117-17R 5000117-22R
4 1. Black #1 300V, 5A 18 1 5000118-13R 5000118-18R
2. Black #2 2 5000118-14R 5000118-19R
3. Black #3 3 5000118-15R 5000118-20R
4. Green/Yellow 4 5000118-16R 5000118-21R
5. Not Used 5 5000118-17R 5000118-22R
COUPLING NUT
Note: Special lead lengths available upon request — consult factory.
Stainless steel coupling nut available — consult factory.
