Joy Cooper Interconnect MICRO-MINI DC DIN PLUGS WITH BRAIDED CABLE Data Sheet

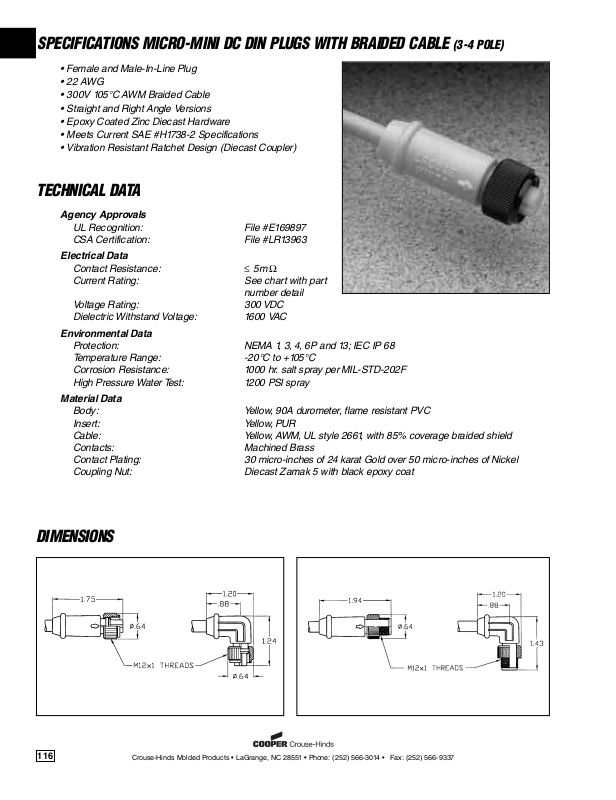

SPECIFICATIONS MICRO-MINI DC DIN PLUGS WITH BRAIDED CABLE

• Female and Male-In-Line Plug

• 22 AWG

• 300V 105°C AWM Braided Cable

• Straight and Right Angle Versions

• Epoxy Coated Zinc Diecast Hardware

• Meets Current SAE #H1738-2 Specifications

• Vibration Resistant Ratchet Design (Diecast Coupler)

TECHNICAL DATA

Agency Approvals

UL Recognition: File #E169897
CSA Certification: File #LR13963

Electrical Data

Contact Resistance:
Current Rating: See chart with part

Voltage Rating: 300 VDC
Dielectric Withstand Voltage: 1600 VAC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C
Corrosion Resistance: 1000 hr. salt spray per MIL-STD-202F
High Pressure Water Test: 1200 PSI spray

Material Data

Body: Yellow, 90A durometer, flame resistant PVC
Insert: Yellow, PUR
Cable: Yellow, AWM, UL style 2661, with 85% coverage braided shield
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Diecast Zamak 5 with black epoxy coat

≤5mΩ

number detail

(3-4 POLE)

DIMENSIONS

116

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

MICRO-MINI DC DIN FEMALE WITH BRAIDED CABLE

WITH

EPOXY COATED ZINC DIECAST

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE LENGTH STRAIGHT RIGHT ANGLE

3 1. Brown 300V, 4A 22 1 5000117-2B 5000117-7B

4 1. Brown 300V, 4A 22 1 5000118-2B 5000118-7B

FEMALE CODE (METERS)

2. Not Used 2 5000117-3B 5000117-8B

3. Blue 3 5000117-4B 5000117-9B

4. Black 4 5000117-5B 5000117-10B

5. Not Used 5 5000117-6B 5000117-11B

2. White 2 5000118-3B 5000118-8B

3. Blue 3 5000118-4B 5000118-9B

4. Black 4 5000118-5B 5000118-10B

5. Not Used 5 5000118-6B 5000118-11B

MICRO-MINI DC DIN MALE-IN-LINE WITH BRAIDED CABLE

WITH

EPOXY COATED ZINC DIECAST

POLES FACE VIEW COLOR RATING AWG CABLE LENGTH STRAIGHT RIGHT ANGLE

MALE CODE (METERS)

3 1. Brown 300V, 4A 22 1 5000117-13B 5000117-18B

2. Not Used 2 5000117-14B 5000117-19B

3. Blue 3 5000117-15B 5000117-20B

4. Black 4 5000117-16B 5000117-21B

5. Not Used 5 5000117-17B 5000117-22B

4 1. Brown 300V, 4A 22 1 5000118-13B 5000118-18B

2. White 2 5000118-14B 5000118-19B

3. Blue 3 5000118-15B 5000118-20B

4. Black 4 5000118-16B 5000118-21B

5. Not Used 5 5000118-17B 5000118-22B

COUPLING NUT

Note: Special lengths available upon request — consult factory.

Stainless steel coupling nut available — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

117
