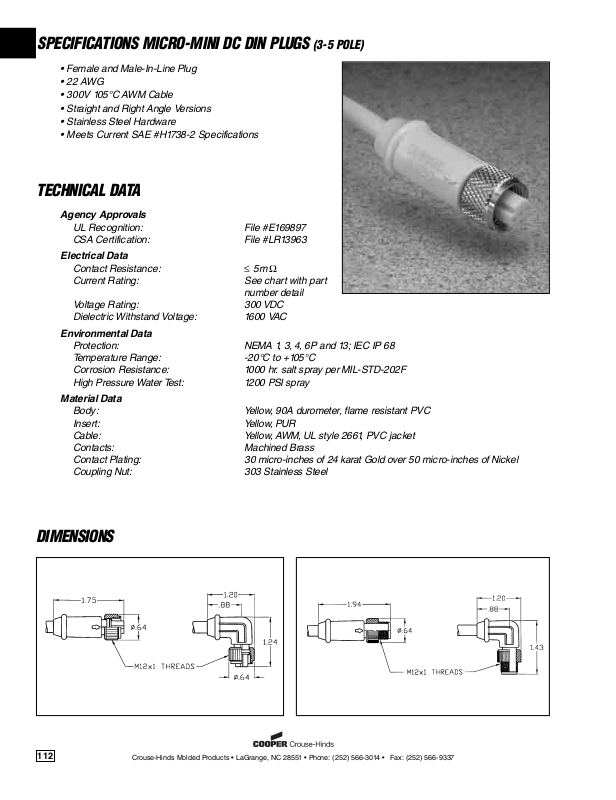

SPECIFICATIONS MICRO-MINI DC DIN PLUGS
• Female and Male-In-Line Plug
• 22 AWG
• 300V 105°C AWM Cable
• Straight and Right Angle Versions
• Stainless Steel Hardware
• Meets Current SAE #H1738-2 Specifications
TECHNICAL DATA
Agency Approvals
UL Recognition: File #E169897
CSA Certification: File #LR13963
Electrical Data
Contact Resistance:
Current Rating: See chart with part
Voltage Rating: 300 VDC
Dielectric Withstand Voltage: 1600 VAC
Environmental Data
Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C
Corrosion Resistance: 1000 hr. salt spray per MIL-STD-202F
High Pressure Water Test: 1200 PSI spray
Material Data
Body: Yellow, 90A durometer, flame resistant PVC
Insert: Yellow, PUR
Cable: Yellow, AWM, UL style 2661, PVC jacket
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: 303 Stainless Steel
≤5mΩ
number detail
(3-5 POLE)
DIMENSIONS
112
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
MICRO-MINI DC DIN FEMALE PLUG
WITH
STAINLESS STEEL
COUPLING NUT
POLES FACE VIEW COLOR RATING AWG CABLE LENGTH STRAIGHT RIGHT ANGLE
3 1. Brown 300V, 4A 22 1 5000117-2X 5000117-7X
4 1. Brown 300V, 4A 22 1 5000118-2X 5000118-7X
5 1. Brown 300V, 4A 22 1 5000129-2X 5000129-7X
MICRO-MINI DC DIN MALE-IN-LINE PLUG
POLES FACE VIEW COLOR RATING AWG CABLE LENGTH STRAIGHT RIGHT ANGLE
3 1. Brown 300V, 4A 22 1 5000117-13X 5000117-18X
4 1. Brown 300V, 4A 22 1 5000118-13X 5000118-18X
5 1. Brown 300V, 4A 22 1 5000129-13X 5000129-18X
FEMALE CODE (METERS)
2. Not Used 2 5000117-3X 5000117-8X
3. Blue 3 5000117-4X 5000117-9X
4. Black 4 5000117-5X 5000117-10X
5. Not Used 5 5000117-6X 5000117-11X
2. White 2 5000118-3X 5000118-8X
3. Blue 3 5000118-4X 5000118-9X
4. Black 4 5000118-5X 5000118-10X
5. Not Used 5 5000118-6X 5000118-11X
2. White 2 5000129-3X 5000129-8X
3. Blue 3 5000129-4X 5000129-9X
4. Black 4 5000129-5X 5000129-10X
5. Gray 5 5000129-6X 5000129-11X
WITH
STAINLESS STEEL
MALE CODE (METERS)
2. Not Used 2 5000117-14X 5000117-19X
3. Blue 3 5000117-15X 5000117-20X
4. Black 4 5000117-16X 5000117-21X
5. Not Used 5 5000117-17X 5000117-22X
2. White 2 5000118-14X 5000118-19X
3. Blue 3 5000118-15X 5000118-20X
4. Black 4 5000118-16X 5000118-21X
5. Not Used 5 5000118-17X 5000118-22X
2. White 2 5000129-14X 5000129-19X
3. Blue 3 5000129-15X 5000129-20X
4. Black 4 5000129-16X 5000129-21X
5. Gray 5 5000129-17X 5000129-22X
COUPLING NUT
Note: Special lengths available upon request — consult factory.
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
