Joy Cooper Interconnect MICRO-MINI DC DIN MALE RECEPTACLES Data Sheet

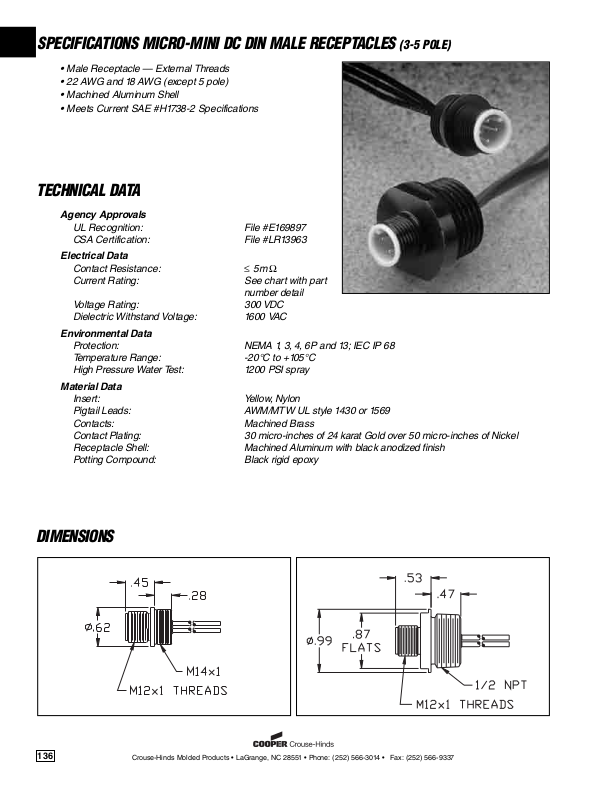

SPECIFICATIONS MICRO-MINI DC DIN MALE RECEPTACLES
• Male Receptacle — External Threads
• 22 AWG and 18 AWG (except 5 pole)
• Machined Aluminum Shell
• Meets Current SAE #H1738-2 Specifications
TECHNICAL DATA
Agency Approvals
UL Recognition: File #E169897
CSA Certification: File #LR13963
Electrical Data
Contact Resistance:
Current Rating: See chart with part
Voltage Rating: 300 VDC
Dielectric Withstand Voltage: 1600 VAC
Environmental Data
Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C
High Pressure Water Test: 1200 PSI spray
Material Data
Insert: Yellow, Nylon
Pigtail Leads: AWM/MTW UL style 1430 or 1569
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Receptacle Shell: Machined Aluminum with black anodized finish
Potting Compound: Black rigid epoxy
≤5mΩ
number detail
(3-5 POLE)
DIMENSIONS
136
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
MICRO-MINI DC DIN MALE RECEPTACLES
WITH
MACHINED ALUMINUM
RECEPTACLE SHELL
POLES FACE VIEW COLOR RATING AWG LEAD M14 1/2" - 14NPT
3 1. Brown 300V, 4A 22 3" 5000117-1 5000117-12
4 1. Brown 300V, 4A 22 3" 5000118-1 5000118-12
5 1. Brown 300V, 4A 22 3" 5000129-1 5000129-12
MICRO-MINI DC DIN TAPPING TEE
POLES FACE VIEW COLOR RATING AWG LEAD M14 1/2" - 14NPT
3 1. Brown 300V, 5A 18 3" 5000117-4126 5000117-4129
4 1. Brown 300V, 5A 18 3" 5000118-233 5000118-165
MALE CODE LENGTH THREAD THREAD
2. Not Used 6" 5000117-4123 5000117-4125
3. Blue 12" 5000117-4124 5000117-4105
4. Black
5. Not Used
2. White 6" 5000118-4159 5000118-4160
3. Blue 12" 5000118-4144 5000118-4060
4. Black
5. Not Used
2. White 6" 5000129-95 5000129-97
3. Blue 12" 5000129-96 5000129-84
4. Black
5. Gray
WITH
MACHINED ALUMINUM
MALE CODE LENGTH THREAD THREAD
2. Not Used 6" 5000117-4127 5000117-4130
3. Blue 12" 5000117-4128 5000117-4131
4. Black
5. Not Used
2. White 6" 5000118-234 5000118-236
3. Blue 12" 5000118-235 5000118-103
4. Black
5. Not Used
RECEPTACLE SHELL
Note: Special lead lengths available upon request — consult factory.
Stainless steel receptacle shell available — consult factory.
Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: (252) 566-3014 • Fax: (252) 566-9337
137
