Joy Cooper Interconnect MICRO-MINI DC DIN “LED” FEMALE PLUG Data Sheet

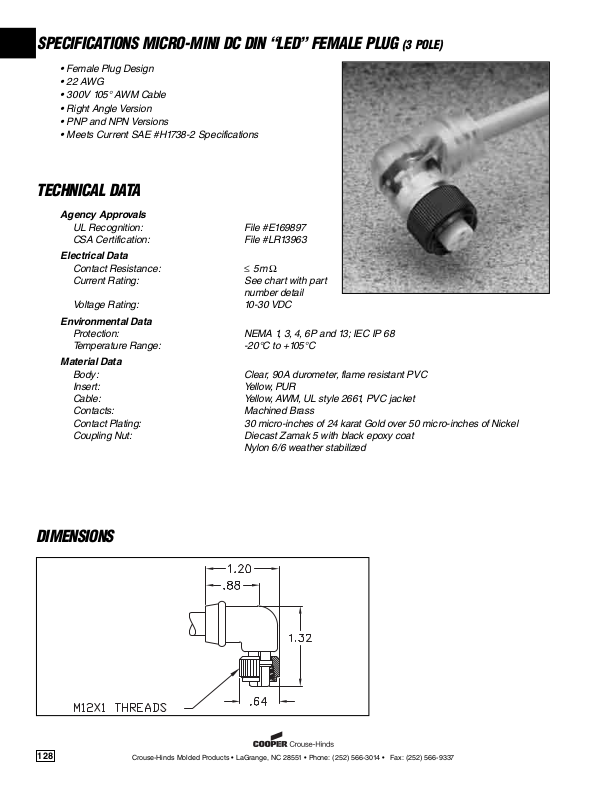

SPECIFICATIONS MICRO-MINI DC DIN “LED” FEMALE PLUG

• Female Plug Design

• 22 AWG

• 300V 105° AWM Cable

• Right Angle Version

• PNP and NPN Versions

• Meets Current SAE #H1738-2 Specifications

TECHNICAL DATA

Agency Approvals

UL Recognition: File #E169897
CSA Certification: File #LR13963

Electrical Data

Contact Resistance:
Current Rating: See chart with part

Voltage Rating: 10-30 VDC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C

Material Data

Body: Clear, 90A durometer, flame resistant PVC
Insert: Yellow, PUR
Cable: Yellow, AWM, UL style 2661, PVC jacket
Contacts: Machined Brass
Contact Plating: 30 micro-inches of 24 karat Gold over 50 micro-inches of Nickel
Coupling Nut: Diecast Zamak 5 with black epoxy coat

≤5mΩ

number detail

Nylon 6/6 weather stabilized

(3 POLE)

DIMENSIONS

128

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

1

2

3

5

4

1

2

3

5

4

MICRO-MINI DC DIN LED FEMALE PLUG

1

2

3

5

4

WITH

ZINC DIECAST

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE LENGTH RIGHT ANGLE RIGHT ANGLE

FEMALE CODE (METERS) — PNP — NPN

3 1. Brown 10-30 VDC 22 2 5000117-P8 5000117-N8

MICRO-MINI DC DIN LED FEMALE PLUG

2. Not Used 3A 3 5000117-P9 5000117-N9

3. Blue 4 5000117-P10 5000117-N10

4. Black 5 5000117-P11 5000117-N11

5. Not Used

WITH

NYLON

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE LENGTH RIGHT ANGLE RIGHT ANGLE

FEMALE CODE (METERS) — PNP — NPN

3 1. Brown 10-30 VDC 22 2 5000117-P8N 5000117-N8N

2. Not Used 3A 3 5000117-P9N 5000117-N9N

3. Blue 4 5000117-P10N 5000117-N10N

4. Black 5 5000117-P11N 5000117-N11N

5. Not Used

MICRO-MINI DC DIN LED FEMALE PLUG

WITH

BRAIDED CABLE, ZINC DIECAST

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE LENGTH RIGHT ANGLE RIGHT ANGLE

FEMALE CODE (METERS) — PNP — NPN

3 1. Brown 10-30 VDC 22 2 5000117-P8B 5000117-N8B

Note: Special lengths available upon request — consult factory.

Stainless steel coupling nut available — consult factory.

2. Not Used 3A 3 5000117-P9B 5000117-N9B

3. Blue 4 5000117-P10B 5000117-N10B

4. Black 5 5000117-P11B 5000117-N11B

5. Not Used

WIRING DIAGRAM

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

129
