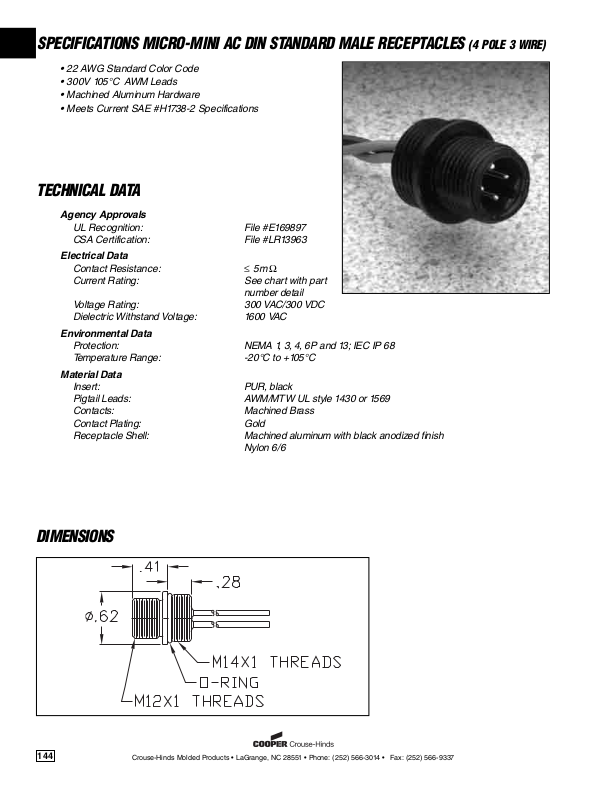

SPECIFICATIONS MICRO-MINI AC DIN STANDARD MALE RECEPTACLES

• 22 AWG Standard Color Code

• 300V 105°C AWM Leads

• Machined Aluminum Hardware

• Meets Current SAE #H1738-2 Specifications

TECHNICAL DATA

Agency Approvals

UL Recognition: File #E169897
CSA Certification: File #LR13963

Electrical Data

Contact Resistance:
Current Rating: See chart with part

Voltage Rating: 300 VAC/300 VDC
Dielectric Withstand Voltage: 1600 VAC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C

Material Data

Insert: PUR, black
Pigtail Leads: AWM/MTW UL style 1430 or 1569
Contacts: Machined Brass
Contact Plating: Gold
Receptacle Shell: Machined aluminum with black anodized finish

≤5mΩ

number detail

Nylon 6/6

(4 POLE 3 WIRE)

DIMENSIONS

144

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

MICRO-MINI AC DIN MALE RECEPTACLES

WITH

ZINC DIECAST

RECEPTACLE SHELL

POLES FACE VIEW COLOR RATING AWG LEAD M14X1 THREAD

MALE CODE LENGTH

4 1. Black 300V, 3A 22 3" 5000126-1

2. Blue

3. Not Used

4. Green/Yellow

MICRO-MINI AC DIN MALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG LEAD M14X1 THREAD

MALE CODE LENGTH

4 1. Black 300V, 3A 22 3" 5000126-1N

2. Blue

3. Not Used

4. Green/Yellow/

WITH

NYLON

RECEPTACLE SHELL

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

145
