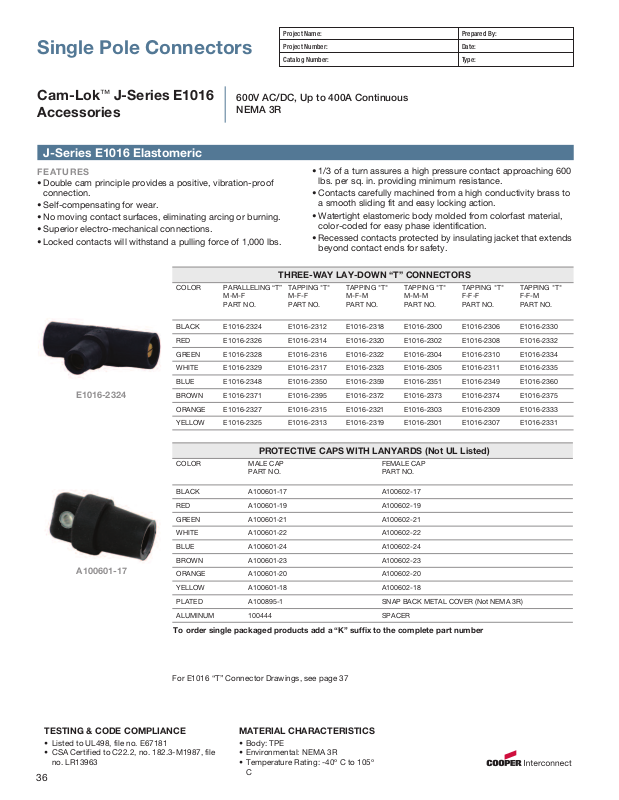

Joy Cooper Interconnect E1016 Catalog Page
Single Pole Connectors
Project Name: Prepared By:
Project Number: Date:
atalog Number: Type:
C
Cam-Lok™J-Series E1016
Accessories
600V AC/DC, Up to 400A Continuous
NEMA 3R
J-Series E1016 Elastomeric
FEATURES
• Double cam principle provides a positive, vibration-proof
connection.
• Self-compensating for wear.
• No moving contact surfaces, eliminating arcing or burning.
• Superior electro-mechanical connections.
• Locked contacts will withstand a pulling force of 1,000 lbs.
E1016-2324
COLOR PARALLELING “T”
BLACK E1016-2324 E1016-2312 E1016-2318 E1016-2300 E1016-2306 E1016-2330
ED
R
GREEN E1016-2328 E1016-2316 E1016-2322 E1016-2304 E1016-2310 E1016-2334
WHITE E1016-2329 E1016-2317 E1016-2323 E1016-2305 E1016-2311 E1016-2335
BLUE E1016-2348 E1016-2350 E1016-2359 E1016-2351 E1016-2349 E1016-2360
BROWN E1016-2371 E1016-2395 E1016-2372 E1016-2373 E1016-2374 E1016-2375
ORANGE E1016-2327 E1016-2315 E1016-2321 E1016-2303 E1016-2309 E1016-2333
YELLOW E1016-2325 E1016-2313 E1016-2319 E1016-2301 E1016-2307 E1016-2331
-M-F
M
PART NO.
1016-2326
E
• 1/3 of a turn assures a high pressure contact approaching 600
lbs. per sq. in. providing minimum resistance.
• Contacts carefully machined from a high conductivity brass to
a smooth sliding fit and easy locking action.
• Watertight elastomeric body molded from colorfast material,
color-coded for easy phase identification.
• Recessed contacts protected by insulating jacket that extends
beyond contact ends for safety.
THREE-WAY LAY-DOWN “T” CONNECTORS
TAPPING "T"
-F-F
M
PART NO.
1016-2314
E
TAPPING "T"
-F-M
M
PART NO.
1016-2320
E
TAPPING "T"
-M-M
M
PART NO.
1016-2302
E
TAPPING "T"
F
PART NO.
E
-F-F
1016-2308
TAPPING "T"
-F-M
F
PART NO.
1016-2332
E
COLOR MALE CAP
BLACK A100601-17 A100602-17
RED A100601-19 A100602-19
GREEN A100601-21 A100602-21
WHITE A100601-22 A100602-22
BLUE A100601-24 A100602-24
BROWN A100601-23 A100602-23
A100601-17
ORANGE A100601-20 A100602-20
YELLOW A100601-18 A100602-18
PLATED A100895-1 SNAP BACK METAL COVER (Not NEMA 3R)
ALUMINUM 100444 SPACER
To order single packaged products add a “K” suffix to the complete part number
For E1016 “T” Connector Drawings, see page 37
TESTING & CODE COMPLIANCE
• Listed to UL498, file no. E67181
• CSA Certified to C22.2, no. 182.3-M1987, file
no. LR13963
36
PROTECTIVE CAPS WITH LANYARDS (Not UL Listed)
PART NO.
FEMALE CAP
PART NO.
MATERIAL CHARACTERISTICS
• Body: TPE
• Environmental: NEMA 3R
• Temperature Rating: -40º C to 105º
C
