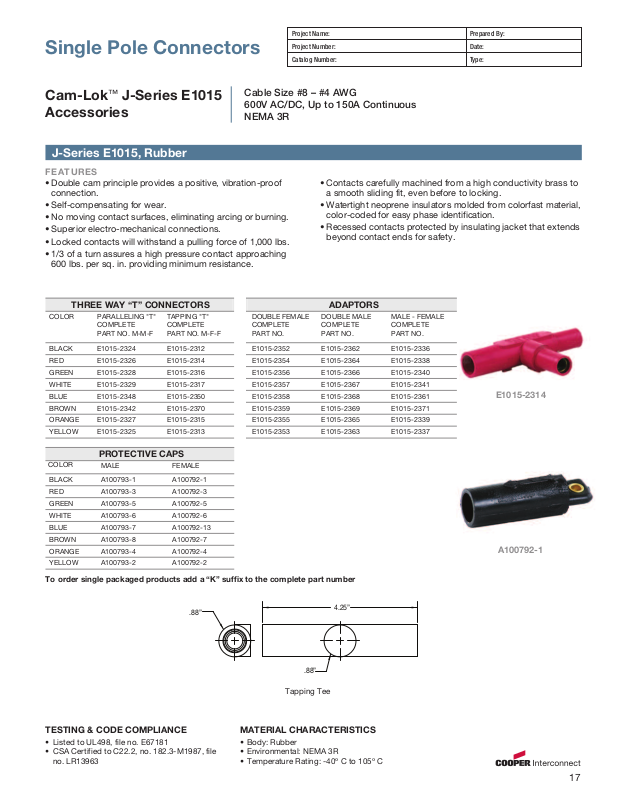

Joy Cooper Interconnect E1015 Catalog Page
Single Pole Connectors
4.25”
.88”
.88”
Project Name: Prepared By:
Project Number: Date:
atalog Number: Type:
C
Cam-Lok™J-Series E1015
Accessories
Cable Size #8 – #4 AWG
600V AC/DC, Up to 150A Continuous
NEMA 3R
J-Series E1015, Rubber
FEATURES
• Double cam principle provides a positive, vibration-proof
connection.
• Self-compensating for wear.
• No moving contact surfaces, eliminating arcing or burning.
• Superior electro-mechanical connections.
• Locked contacts will withstand a pulling force of 1,000 lbs.
• 1/3 of a turn assures a high pressure contact approaching
600 lbs. per sq. in. providing minimum resistance.
THREE WAY “T” CONNECTORS ADAPTORS
COLOR PARALLELING "T"
BLACK E1015-2324 E1015-2312 E1015-2352 E1015-2362 E1015-2336
RED E1015-2326 E1015-2314 E1015-2354 E1015-2364 E1015-2338
GREEN E1015-2328 E1015-2316 E1015-2356 E1015-2366 E1015-2340
WHITE E1015-2329 E1015-2317 E1015-2357 E1015-2367 E1015-2341
BLUE E1015-2348 E1015-2350 E1015-2358 E1015-2368 E1015-2361
BROWN E1015-2342 E1015-2370 E1015-2359 E1015-2369 E1015-2371
ORANGE E1015-2327 E1015-2315 E1015-2355 E1015-2365 E1015-2339
YELLOW E1015-2325 E1015-2313 E1015-2353 E1015-2363 E1015-2337
COMPLETE
ART NO. M-M-F
P
TAPPING "T"
COMPLETE
ART NO. M-F-F
P
DOUBLE FEMALE
COMPLETE
ART NO.
P
• Contacts carefully machined from a high conductivity brass to
a smooth sliding fit, even before to locking.
• Watertight neoprene insulators molded from colorfast material,
color-coded for easy phase identification.
• Recessed contacts protected by insulating jacket that extends
beyond contact ends for safety.
DOUBLE MALE
COMPLETE
ART NO.
P
MALE - FEMALE
COMPLETE
ART NO.
P
E1015-2314
COLOR
BLACK A100793-1 A100792-1
RED A100793-3 A100792-3
GREEN A100793-5 A100792-5
WHITE A100793-6 A100792-6
BLUE A100793-7 A100792-13
BROWN A100793-8 A100792-7
ORANGE A100793-4 A100792-4
YELLOW A100793-2 A100792-2
To order single packaged products add a “K” suffix to the complete part number
TESTING & CODE COMPLIANCE
• Listed to UL498, file no. E67181
• CSA Certified to C22.2, no. 182.3-M1987, file
no. LR13963
MALE FEMALE
Tapping Tee
MATERIAL CHARACTERISTICS
• Body: Rubber
• Environmental: NEMA 3R
• Temperature Rating: -40º C to 105º C
PROTECTIVE CAPS
A100792-1
