Joy Cooper Interconnect CHANGE-OUT RECEPTACLES Data Sheet

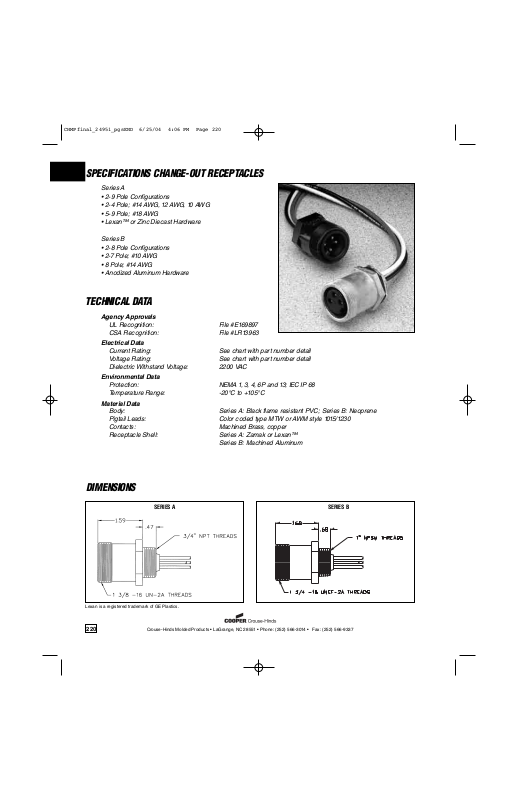

SPECIFICATIONS CHANGE-OUT RECEPTACLES

Series A

• 2-9 Pole Configurations

• 2-4 Pole; #14 AWG, 12 AWG, 10 AWG

• 5-9 Pole; #18 AWG

• Lexan™ or Zinc Diecast Hardware

Series B

• 2-8 Pole Configurations

• 2-7 Pole; #10 AWG

• 8 Pole; #14 AWG

• Anodized Aluminum Hardware

TECHNICAL DATA

Agency Approvals

UL Recognition: File #E169897
CSA Recognition: File #LR13963

Electrical Data

Current Rating: See chart with part number detail
Voltage Rating: See chart with part number detail
Dielectric Withstand Voltage: 2200 VAC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68
Temperature Range: -20°C to +105°C

Material Data

Body: Series A: Black flame resistant PVC; Series B: Neoprene
Pigtail Leads: Color coded type MTW or AWM style 1015/1230
Contacts: Machined Brass, copper
Receptacle Shell: Series A: Zamak or Lexan™

Series B: Machined Aluminum

DIMENSIONS

SERIES A SERIES B

Lexan is a registered trademark of GE Plastics.

220

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

CHANGE-OUT SERIES A FEMALE RECEPTACLES

WITH

ZINC DIECAST

RECEPTACLE SHELL

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

2 1. Black 600V, 18A 14 12" 1/2" X8651-10P

3 1. Black 600V, 18A 14 12" 1/2" X8652-14P

4 1. Black 600V, 15A 14 12" 1/2" X8653-15P

CHANGE-OUT SERIES A MALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

2 1. Black 600V, 18A 14 12" 1/2" X8651-8P

FEMALE CODE PIGTAIL THREAD

2. White 3/4" X8651-11P

2. White 3/4" X8652-15P

3. Green

2. Green 3/4" X8653-16P

3. Red

4. White

WITH

ZINC DIECAST

MALE CODE PIGTAIL THREAD

2. White 3/4" X8651-9P

RECEPTACLE SHELL

3 1. Black 600V, 18A 14 12" 1/2" X8652-12P

4 1. Black 600V, 15A 14 12" 1/2" X8653-13P

CHANGE-OUT SERIES A FEMALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

FEMALE CODE PIGTAIL THREAD

2 1. Black 600V, 18A 14 12" 1/2" X8651-76P

3 1. Black 600V, 18A 14 12" 1/2" X8652-90P

4 1. Black 600V, 15A 14 12" 1/2" X8653-90P

2. White 3/4" X8652-13P

3. Green

2. Green 3/4" X8653-14P

3. Red

4. White

WITH

LEXAN

2. White 3/4" X8651-84P

2. White 3/4" X8652-98P

3. Green

2. Green 3/4" X8653-98P

3. Red

4. White

RECEPTACLE SHELL

Note: Special lead lengths available upon request — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

221

CHANGE-OUT SERIES A MALE RECEPTACLES

WITH

LEXAN

RECEPTACLE SHELL

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

2 1. Black 600V, 18A 14 12" 1/2" X8651-77P

3 1. Black 600V, 18A 14 12" 1/2" X8652-91P

4 1. Black 600V, 15A 14 12" 1/2" X8653-91P

CHANGE-OUT SERIES A FEMALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

2 1. Black 600V, 25A 12 12" 1/2" X8651-654P

MALE CODE PIGTAIL THREAD

2. White 3/4" X8651-85P

2. White 3/4" X8652-99P

3. Green

2. Green 3/4" X8653-99P

3. Red

4. White

WITH

ZINC DIECAST

FEMALE CODE PIGTAIL THREAD

2. White 3/4" X8651-655P

RECEPTACLE SHELL

3 1. Black 600V, 25A 12 12" 1/2" X8652-654P

4 1. Black 600V, 20A 12 12" 1/2" X8653-654P

CHANGE-OUT SERIES A MALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG 1/C NPT PART NUMBER

MALE CODE PIGTAIL THREAD

2 1. Black 600V, 25A 12 12" 1/2" X8651-648P

3 1. Black 600V, 25A 12 12" 1/2" X8652-255P

4 1. Black 600V, 20A 12 12" 1/2" X8653-18P

2. White 3/4" X8652-686P

3. Green

2. Green 3/4" X8653-655P

3. Red

4. White

WITH

ZINC DIECAST

2. White 3/4" X8651-649P

2. White 3/4" X8652-649P

3. Green

2. Green 3/4" X8653-17P

3. Red

4. White

RECEPTACLE SHELL

Note: Special lead lengths available upon request — consult factory.

222

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

CHANGE-OUT SERIES A FEMALE RECEPTACLES

WITH

LEXAN

RECEPTACLE SHELL

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

2 1. Black 600V, 25A 12 12" 1/2" X8651-1654P

3 1. Black 600V, 25A 12 12" 1/2" X8652-221P

4 1. Black 600V, 20A 12 12" 1/2" X8653-1634P

CHANGE-OUT SERIES A MALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

2 1. Black 600V, 25A 12 12" 1/2" X8651-1648P

FEMALE CODE PIGTAIL THREAD

2. White 3/4" X8651-1655P

2. White 3/4" X8652-262P

3. Green

2. Green 3/4" X8653-383P

3. Red

4. White

WITH

LEXAN

MALE CODE PIGTAIL THREAD

2. White 3/4" X8651-1649P

RECEPTACLE SHELL

3 1. Black 600V, 25A 12 12" 1/2" X8652-219P

4 1. Black 600V, 20A 12 12" 1/2" X8653-253P

CHANGE-OUT SERIES A FEMALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

FEMALE CODE PIGTAIL THREAD

2 1. Black 600V, 30A 10 12" 1/2" X8651-656P

3 1. Black 600V, 30A 10 12" 1/2" X8652-656P

4 1. Black 600V, 25A 10 12" 1/2" X8653-656P

2. White 3/4" X8652-1649P

3. Green

2. Green 3/4" X8653-1649P

3. Red

4. White

WITH

ZINC DIECAST

2. White 3/4" X8651-657P

2. White 3/4" X8652-657P

3. Green

2. Green 3/4" X8653-657P

3. Red

4. White

RECEPTACLE SHELL

Note: Special lead lengths available upon request — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

223

CHANGE-OUT SERIES A MALE RECEPTACLES

WITH

ZINC DIECAST

RECEPTACLE SHELL

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

2 1. Black 600V, 30A 10 12" 1/2" X8651-650P

3 1. Black 600V, 30A 10 12" 1/2" X8652-650P

4 1. Black 600V, 25A 10 12" 1/2" X8653-650P

CHANGE-OUT SERIES A FEMALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

2 1. Black 600V, 30A 10 12" 1/2" X8651-1656P

MALE CODE PIGTAIL THREAD

2. White 3/4" X8651-651P

2. White 3/4" X8652-651P

3. Green

2. Green 3/4" X8653-651P

3. Red

4. White

WITH

LEXAN

FEMALE CODE PIGTAIL THREAD

2. White 3/4" X8651-1657P

RECEPTACLE SHELL

3 1. Black 600V, 30A 10 12" 1/2" X8652-1656P

4 1. Black 600V, 25A 10 12" 1/2" X8653-1656P

CHANGE-OUT SERIES A MALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

MALE CODE PIGTAIL THREAD

2 1. Black 600V, 30A 10 12" 1/2" X8651-1650P

3 1. Black 600V, 30A 10 12" 1/2" X8652-1650P

4 1. Black 600V, 25A 10 12" 1/2" X8653-1650P

2. White 3/4" X8652-1657P

3. Green

2. Green 3/4" X8653-384P

3. Red

4. White

WITH

LEXAN

2. White 3/4" X8651-1651P

2. White 3/4" X8652-1651P

3. Green

2. Green 3/4" X8653-1651P

3. Red

4. White

RECEPTACLE SHELL

Note: Special lead lengths available upon request — consult factory.

224

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

CHANGE-OUT SERIES A FEMALE RECEPTACLES

WITH

ZINC DIECAST

RECEPTACLE SHELL

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

5 1. Red 300V, 6A 18 12" 1/2" X8872-1B

6 1. Red 300V, 6A 18 12" 1/2" X8871-1B

7 1. Red 300V, 5A 18 12" 1/2" X8870-12B

CHANGE-OUT SERIES A MALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

5 1. Red 300V, 6A 18 12" 1/2" X8872-3B

6 1. Red 300V, 6A 18 12" 1/2" X8871-3B

7 1. Red 300V, 5A 18 12" 1/2" X8870-13B

FEMALE CODE PIGTAIL THREAD

2. White 3/4" X8872-11B

3. Black

4. Orange

5. Green

2. White 3/4" X8871-11B

3. Black

4. Blue

5. Orange

6. Green

2. White 3/4" X8870-2B

3. Black

4. Blue

5. Orange

6. Green

7. White-Black

WITH

ZINC DIECAST

MALE CODE PIGTAIL THREAD

2. White 3/4" X8872-12B

3. Black

4. Orange

5. Green

2. White 3/4" X8871-12B

3. Black

4. Blue

5. Orange

6. Green

2. White 3/4" X8870-4B

3. Black

4. Blue

5. Orange

6. Green

7. White-Black

RECEPTACLE SHELL

Note: Special lead lengths available upon request — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

225

CHANGE-OUT SERIES A FEMALE RECEPTACLES

WITH

LEXAN

RECEPTACLE SHELL

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

5 1. Red 300V, 6A 18 12" 1/2" X8872-13B

6 1. Red 300V, 6A 18 12" 1/2" X8871-19B

7 1. Red 300V, 5A 18 12" 1/2" X8870-22B

9 1. Green 110V, 3A 18 12" 3/4" X8980-3B

FEMALE CODE PIGTAIL THREAD

2. White 3/4" X8872-21B

3. Black

4. Orange

5. Green

2. White 3/4" X8871-27B

3. Black

4. Blue

5. Orange

6. Green

2. White 3/4" X8870-14B

3. Black

4. Blue

5. Orange

6. Green

7. White-Black

2. Red

3. White

4. Black

5. Red-Black

6. White-Black

7. Bl u e

8. Orange

9. Green-Black

CHANGE-OUT SERIES A MALE RECEPTACLES

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

MALE CODE PIGTAIL THREAD

5 1. Red 300V, 30A 6 12" 1/2" X8872-14B

2. White 3/4" X8872-22B

3. Black

4. Orange

5. Green

6 1. Red 300V, 30A 6 12" 1/2" X8871-20B

2. White 3/4" X8871-28B

3. Black

4. Blue

5. Orange

6. Green

7 1. Red 300V, 25A 5 12" 1/2" X8870-23B

2. White 3/4" X8870-15B

3. Black

4. Blue

5. Orange

6. Green

7. White-Black

9 1. Green 110V, 25A 3 12" 3/4" X8980-5B

2. Red

3. White

4. Black

5. Red-Black

6. White-Black

7. Bl u e

8. Orange

9. Green-Black

Note: Special lead lengths available upon request — consult factory.

WITH

LEXAN

RECEPTACLE SHELL

226

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

CHANGE-OUT SERIES B FEMALE RECEPTACLES

WITH

MACHINED ALUMINUM

RECEPTACLE SHELL

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

FEMALE CODE PIGTAIL THREAD

2 1. White 600V, 25A 10 12" 1" X8881-1

2. Black

3 1. Black 600V, 25A 10 12" 1" X8880-1

2. White

3. Green

4 1. Red 600V, 20A 10 12" 1" X8879-1

2. White

3. Black

4. Green

5 1. Red 600V, 20A 10 12" 1" X8878-1

2. White

3. Black

4. Orange

5. Green

6 1. Red 600V, 20A 10 12" 1" X8877-1

2. White

3. Black

4. Blue

5. Orange

6. Green

7 1. Red 600V, 18A 10 12" 1" X8876-1

2. White

3. Black

4. Blue

5. Orange

6. Green

7. White-Black

8 1. Red 600V, 11A 14 12" 1" X8916-1

2. White

3. Black

4. White-Black

5. Blue

6. Orange

7. Gr e e n

8. Red-Black

Note: Special lead lengths available upon request — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

227

CHANGE-OUT SERIES B MALE RECEPTACLES

WITH

MACHINED ALUMINUM

RECEPTACLE SHELL

POLES FACE VIEW COLOR RATING AWG 1/C NPT PIPE PART NUMBER

MALE CODE PIGTAIL THREAD

2 1. White 600V, 25A 10 12" 1" X8881-3B

2. Black

3 1. Black 600V, 25A 10 12" 1" X8880-3B

2. White

3. Green

4 1. Red 600V, 20A 10 12" 1" X8879-3B

2. White

3. Black

4. Green

5 1. Red 600V, 20A 10 12" 1" X8878-3B

2. White

3. Black

4. Orange

5. Green

6 1. Red 600V, 20A 10 12" 1" X8877-3B

2. White

3. Black

4. Blue

5. Orange

6. Green

7 1. Red 600V, 18A 10 12" 1" X8876-3B

2. White

3. Black

4. Blue

5. Orange

6. Green

7. White-Black

8 1. Red 600V, 11A 14 12" 1" X8916-3B

2. White

3. Black

4. White-Black

5. Blue

6. Orange

7. Gr e e n

8. Red-Black

228

Note: Special lead lengths available upon request — consult factory.
