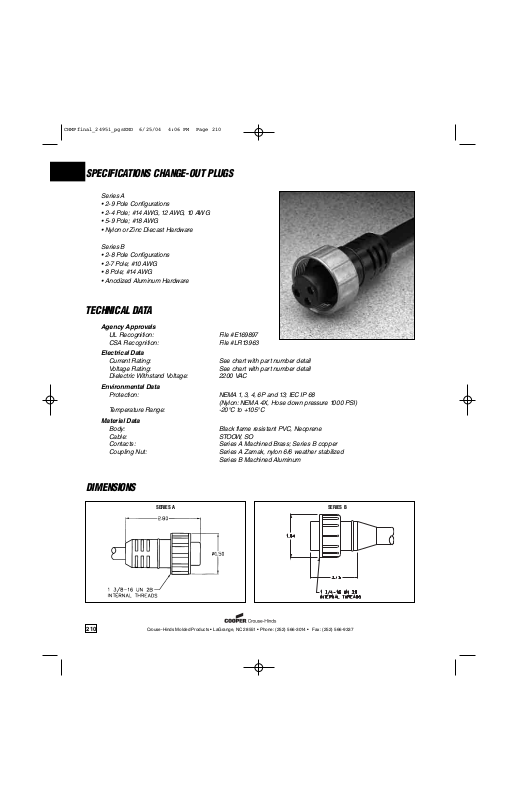

Joy Cooper Interconnect CHANGE-OUT PLUGS Data Sheet

SPECIFICATIONS CHANGE-OUT PLUGS

Series A

• 2-9 Pole Configurations

• 2-4 Pole; #14 AWG, 12 AWG, 10 AWG

• 5-9 Pole; #18 AWG

• Nylon or Zinc Diecast Hardware

Series B

• 2-8 Pole Configurations

• 2-7 Pole; #10 AWG

• 8 Pole; #14 AWG

• Anodized Aluminum Hardware

TECHNICAL DATA

Agency Approvals

UL Recognition: File #E169897
CSA Recognition: File #LR13963

Electrical Data

Current Rating: See chart with part number detail
Voltage Rating: See chart with part number detail
Dielectric Withstand Voltage: 2200 VAC

Environmental Data

Protection: NEMA 1, 3, 4, 6P and 13; IEC IP 68

(Nylon: NEMA 4X, Hose down pressure 1000 PSI)

Temperature Range: -20°C to +105°C

Material Data

Body: Black flame resistant PVC, Neoprene
Cable: STOOW, SO
Contacts: Series A Machined Brass; Series B copper
Coupling Nut: Series A Zamak, nylon 6/6 weather stabilized

Series B Machined Aluminum

DIMENSIONS

210

SERIES A SERIES B

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

CHANGE-OUT SERIES A STOOW FEMALE PLUGS

WITH

ZINC DIECAST

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

FEMALE CODE LENGTH

2 1. Black 600V, 18A 14 6' X8651-49P

2. White 12' X8651-50P

3 1. Black 600V, 18A 14 6' X8652-48P

2. White 12' X8652-49P

3. Green 18' X8652-50P

4 1. Black 600V, 15A 14 6' X8653-44P

2. Green 12' X8653-45P

3. Red 18' X8653-46P

4. White

CHANGE-OUT SERIES A STOOW MALE PLUGS

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

MALE CODE LENGTH

2 1. Black 600V, 18A 14 6' X8651-52P

2. White 12' X8651-53P

WITH

ZINC DIECAST

18' X8651-51P

COUPLING NUT

18' X8651-54P

3 1. Black 600V, 18A 14 6' X8652-51P

2. White 12' X8652-52P

3. Green 18' X8652-53P

4 1. Black 600V, 15A 14 6' X8653-47P

2. Green 12' X8653-48P

3. Red 18' X8653-49P

4. White

CHANGE-OUT SERIES A STOOW FEMALE PLUGS

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

FEMALE CODE LENGTH

2 1. Black 600V, 18A 14 6' X8651-78P

2. White 12' X8651-80P

3 1. Black 600V, 18A 14 6' X8652-92P

2. White 12' X8652-94P

3. Green 18' X8652-96P

4 1. Black 600V, 15A 14 6' X8653-92P

2. Green 12' X8653-94P

3. Red 18' X8653-96P

4. White

WITH

NYLON

COUPLING NUT

18' X8651-82P

Note: Special lengths available upon request — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

211

CHANGE-OUT SERIES A STOOW MALE PLUGS

WITH

NYLON

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

MALE CODE LENGTH

2 1. Black 600V, 18A 14 6' X8651-79P

2. White 12' X8651-81P

3 1. Black 600V, 18A 14 6' X8652-93P

2. White 12' X8652-95P

3. Green 18' X8652-97P

4 1. Black 600V, 15A 14 6' X8653-93P

2. Green 12' X8653-95P

3. Red 18' X8653-97P

4. White

CHANGE-OUT SERIES A STOOW FEMALE PLUGS

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

FEMALE CODE LENGTH

2 1. Black 600V, 25A 12 6' X8651-528P

2. White 12' X8651-529P

WITH

ZINC DIECAST

18' X8651-83P

COUPLING NUT

18' X8651-644P

3 1. Black 600V, 25A 12 6' X8652-528P

2. White 12' X8652-529P

3. Green 18' X8652-644P

4 1. Black 600V, 20A 12 6' X8653-528P

2. Green 12' X8653-529P

3. Red 18' X8653-644P

4. White

CHANGE-OUT SERIES A STOOW MALE PLUGS

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

MALE CODE LENGTH

2 1. Black 600V, 25A 12 6' X8651-516P

2. White 12' X8651-517P

3 1. Black 600V, 25A 12 6' X8652-516P

2. White 12' X8652-517P

3. Green 18' X8652-640P

4 1. Black 600V, 20A 12 6' X8653-516P

2. Green 12' X8653-517P

3. Red 18' X8653-640P

4. White

WITH

ZINC DIECAST

COUPLING NUT

18' X8651-640P

212

Note: Special lengths available upon request — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

CHANGE-OUT SERIES A STOOW FEMALE PLUGS

WITH

NYLON

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

FEMALE CODE LENGTH

2 1. Black 600V, 25A 12 6' X8651-1528P

2. White 12' X8651-1529P

3 1. Black 600V, 25A 12 6' X8652-1528P

2. White 12' X8652-1529P

3. Green 18' X8652-1644P

4 1. Black 600V, 20A 12 6' X8653-1528P

2. Green 12' X8653-1529P

3. Red 18' X8653-1644P

4. White

CHANGE-OUT SERIES A STOOW MALE PLUGS

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

MALE CODE LENGTH

2 1. Black 600V, 25A 12 6' X8651-1516P

2. White 12' X8651-1517P

3 1. Black 600V, 25A 12 6' X8652-1516P

2. White 12' X8652-222P

3. Green 18' X8652-1640P

WITH

NYLON

18' X8651-1644P

COUPLING NUT

18' X8651-1640P

4 1. Black 600V, 20A 12 6' X8653-1516P

2. Green 12' X8653-1517P

3. Red 18' X8653-1640P

4. White

CHANGE-OUT SERIES A STOOW FEMALE PLUGS

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

FEMALE CODE LENGTH

2 1. Black 600V, 30A 10 6' X8651-645P

2. White 12' X8651-646P

3 1. Black 600V, 30A 10 6' X8652-645P

2. White 12' X8652-646P

3. Green 18' X8652-647P

4 1. Black 600V, 25A 10 6' X8653-645P

2. Green 12' X8653-646P

3. Red 18' X8653-647P

4. White

Note: Special lengths available upon request — consult factory.

WITH

ZINC DIECAST

COUPLING NUT

18' X8651-647P

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

213

CHANGE-OUT SERIES A STOOW MALE PLUGS

WITH

ZINC DIECAST

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

MALE CODE LENGTH

2 1. Black 600V, 30A 10 6' X8651-641P

2. White 12' X8651-642P

3 1. Black 600V, 30A 10 6' X8652-641P

2. White 12' X8652-642P

3. Green 18' X8652-643P

4 1. Black 600V, 25A 10 6' X8653-641P

2. Green 12' X8653-642P

3. Red 18' X8653-643P

4. White

CHANGE-OUT SERIES A STOOW FEMALE PLUGS

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

FEMALE CODE LENGTH

2 1. Black 600V, 30A 10 6' X8651-1645P

2. White 12' X8651-1646P

WITH

NYLON

18' X8651-643P

COUPLING NUT

18' X8651-1647P

3 1. Black 600V, 30A 10 6' X8652-1645P

2. White 12' X8652-1646P

3. Green 18' X8652-1647P

4 1. Black 600V, 25A 10 6' X8653-1645P

2. Green 12' X8653-1646P

3. Red 18' X8653-1647P

4. White

CHANGE-OUT SERIES A STOOW MALE PLUGS

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

MALE CODE LENGTH

2 1. Black 600V, 30A 10 6' X8651-1641P

2. White 12' X8651-1642P

3 1. Black 600V, 30A 10 6' X8652-1641P

2. White 12' X8652-1642P

3. Green 18' X8652-1643P

4 1. Black 600V, 25A 10 6' X8653-1641P

2. Green 12' X8653-1642P

3. Red 18' X8653-1643P

4. White

WITH

NYLON

COUPLING NUT

18' X8651-1643P

214

Note: Special lengths available upon request — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

CHANGE-OUT SERIES A “SO” FEMALE PLUGS

WITH

ZINC DIECAST

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

FEMALE CODE LENGTH

5 1. Red 300V, 6A 18 6' X8872-5A

2. White 12' X8872-7A

3. Black 18' X8872-9A

4. Orange

5. Green

6 1. Red 300V, 6A 18 6' X8871-5A

2. White 12' X8871-7A

3. Black 18' X8871-9A

4. Blue

5. Orange

6. Green

7 1. Red 300V, 5A 18 6' X8870-5A

2. White 12' X8870-8A

3. Black 18' X8870-10A

4. Blue

5. Orange

6. Green

7. White-Black

CHANGE-OUT SERIES A “SO” MALE PLUGS

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

MALE CODE LENGTH

5 1. Red 300V, 6A 18 6' X8872-6A

2. White 12' X8872-8A

3. Black 18' X8872-10A

4. Orange

5. Green

6 1. Red 300V, 6A 18 6' X8871-6A

2. White 12' X8871-8A

3. Black 18' X8871-10A

4. Blue

5. Orange

6. Green

7 1. Red 300V, 5A 18 6' X8870-6A

2. White 12' X8870-9A

3. Black 18' X8870-11A

4. Blue

5. Orange

6. Green

7. White-Black

WITH

ZINC DIECAST

COUPLING NUT

Note: Special lengths available upon request — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

215

CHANGE-OUT SERIES A “SO” FEMALE PLUGS

WITH

NYLON

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

5 1. Red 300V, 6A 18 6' X8872-15A

6 1. Red 300V, 6A 18 6' X8871-21A

7 1. Red 300V, 5A 18 6' X8870-16A

9 1. Green 110V, 3A 18 6' X8980-7

FEMALE CODE LENGTH

2. White 12' X8872-17A

3. Black 18' X8872-19A

4. Orange

5. Green

2. White 12' X8871-23A

3. Black 18' X8871-25A

4. Blue

5. Orange

6. Green

2. White 12' X8870-18A

3. Black 18' X8870-20A

4. Blue

5. Orange

6. Green

7. White-Black

2. Red

3. White

4. Black

5. Red-Black

6. White-Black

7. Bl u e

8. Orange

9. Green-Black

CHANGE-OUT SERIES A “SO” MALE PLUGS

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

MALE CODE LENGTH

5 1. Red 300V, 6A 18 6' X8872-16A

2. White 12' X8872-18A

3. Black 18' X8872-20A

4. Orange

5. Green

6 1. Red 300V, 6A 18 6' X8871-22A

2. White 12' X8871-24A

3. Black 18' X8871-26A

4. Blue

5. Orange

6. Green

7 1. Red 300V, 5A 18 6' X8870-17A

2. White 12' X8870-19A

3. Black 18' X8870-21A

4. Blue

5. Orange

6. Green

7. White-Black

9 1. Green 110V, 3A 18 6' X8980-10

2. Red

3. White

4. Black

5. Red-Black

6. White-Black

7. Bl u e

8. Orange

9. Green-Black

Note: Special lengths available upon request — consult factory.

WITH

NYLON

COUPLING NUT

216

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

CHANGE-OUT SERIES B “SO” FEMALE PLUGS

WITH

MACHINED ALUMINUM

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

FEMALE CODE LENGTH

2 1. White 600V, 25A 10 6' X8881-5

2. Black 12' X8881-7
18' X8881-9

3 1. Black 600V, 25A 10 6' X8880-5

2. White 12' X8880-7

3. Green 18' X8880-9

4 1. Red 600V, 20A 10 6' X8879-5

2. White 12' X8879-7

3. Black 18' X8879-9

4. Green

5 1. Red 600V, 20A 10 6' X8878-5

2. White 12' X8878-7

3. Black 18' X8878-9

4. Orange

5. Green

6 1. Red 600V, 20A 10 6' X8877-7

2. White 12' X8877-9

3. Black 18' X8877-11

4. Blue

5. Orange

6. Green

7 1. Red 600V, 18A 10 6' X8876-7

2. White 12' X8876-9

3. Black 18' X8876-11

4. Blue

5. Orange

6. Green

7. White-Black

8 1. Red 600V, 11A 14 6' X8916-5

2. White 12' X8916-6

3. Black 18' X8916-7

4. White-Black

5. Blue

6. Orange

7. Gr e e n

8. Red-Black

Note: Special lengths available upon request — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]

217

CHANGE-OUT SERIES B “SO” MALE PLUGS

WITH

DIECAST ALUMINUM

COUPLING NUT

POLES FACE VIEW COLOR RATING AWG CABLE PART NUMBER

MALE CODE LENGTH

2 1. White 600V, 25A 10 6' X8881-6B

2. Black 12' X8881-8B
18' X8881-10B

3 1. Black 600V, 25A 10 6' X8880-6B

2. White 12' X8880-8B

3. Green 18" X8880-10B

4 1. Red 600V, 20A 10 6' X8879-6B

2. White 12' X8879-8B

3. Black 18' X8879-10B

4. Green

5 1. Red 600V, 20A 10 6' X8878-6B

2. White 12' X8878-8B

3. Black 18' X8878-10B

4. Orange

5. Green

6 1. Red 600V, 20A 10 6' X8877-8B

2. White 12' X8877-10B

3. Black 18' X8877-12B

4. Blue

5. Orange

6. Green

7 1. Red 600V, 18A 10 6' X8876-8B

2. White 12' X8876-10B

3. Black 18' X8876-12B

4. Blue

5. Orange

6. Green

7. White-Black

8 1. Red 600V, 11A 14 6' X8916-8B

2. White 12' X8916-9B

3. Black 18' X8916-10B

4. White-Black

5. Blue

6. Orange

7. Gr e e n

8. Red-Black

218

Note: Special lengths available upon request — consult factory.

Crouse-Hinds Molded Products • LaGrange, NC 28551 • Phone: [phone] • Fax: [phone]
