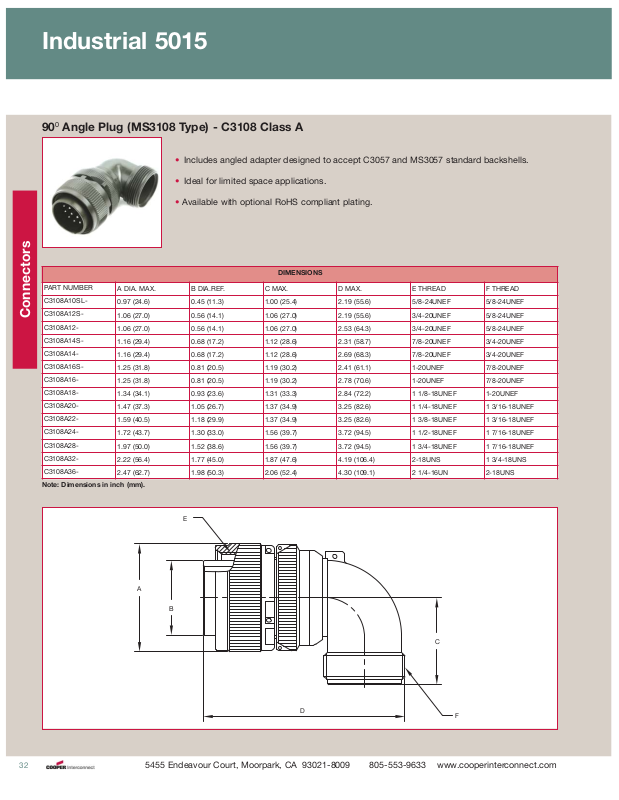

900Angle Plug (MS3108 Type) - C3108 Class A

DIMENSIONS

PART NU MBER

A DIA. MAX. B DIA.REF. C MAX. D MAX. E THREAD F THREAD

C3108A10SL-

0.97 (24.6) 0.45 (11.3) 1.00 (25.4) 2.19 (55.6) 5/8-24UNEF 5/8-24UNEF

C3108A12S-

1.06 (27.0) 0.56 (14.1) 1.06 (27.0) 2.19 (55.6) 3/4-20UNEF 5/8-24UNEF

C3108A12-

1.06 (27.0) 0.56 (14.1) 1.06 (27.0) 2.53 (64.3) 3/4-20UNEF 5/8-24UNEF

C3108A14S-

1.16 (29.4) 0.68 (17.2) 1.12 (28.6) 2.31 (58.7) 7/8-20UNEF 3/4-20UNEF

C3108A14-

1.16 (29.4) 0.68 (17.2) 1.12 (28.6) 2.69 (68.3) 7/8-20UNEF 3/4-20UNEF

C3108A16S-

1.25 (31.8) 0.81 (20.5) 1.19 (30.2) 2.41 (61.1) 1-20UNEF 7/8-20UNEF

C3108A16-

1.25 (31.8) 0.81 (20.5) 1.19 (30.2) 2.78 (70.6) 1-20UNEF 7/8-20UNEF

C3108A18-

1.34 (34.1) 0.93 (23.6) 1.31 (33.3) 2.84 (72.2) 1 1/8-18UNEF 1-20UNEF

C3108A20-

1.47 (37.3) 1.05 (26.7) 1.37 (34.9) 3.25 (82.6) 1 1/4-18UNEF 1 3/16-18UNEF

C3108A22-

1.59 (40.5) 1.18 (29.9) 1.37 (34.9) 3.25 (82.6) 1 3/8-18UNEF 1 3/16-18UNEF

C3108A24-

1.72 (43.7) 1.30 (33.0) 1.56 (39.7) 3.72 (94.5) 1 1/2-18UNEF 1 7/16-18UNEF

C3108A28-

1.97 (50.0) 1.52 (38.6) 1.56 (39.7) 3.72 (94.5) 1 3/4-18UNEF 1 7/16-18UNEF

C3108A32-

2.22 (56.4) 1.77 (45.0) 1.87 (47.6) 4.19 (106.4) 2-18UNS 1 3/4-18UNS

C3108A36-

2.47 (62.7) 1.98 (50.3) 2.06 (52.4) 4.30 (109.1) 2 1/4-16UN 2-18UNS

Industrial 5015

Note: Dimensions in inch (mm).

• Includes angled adapter designed to accept C3057 and MS3057 standard backshells.

• Ideal for limited space applications.

• Available with optional RoHS compliant plating.
