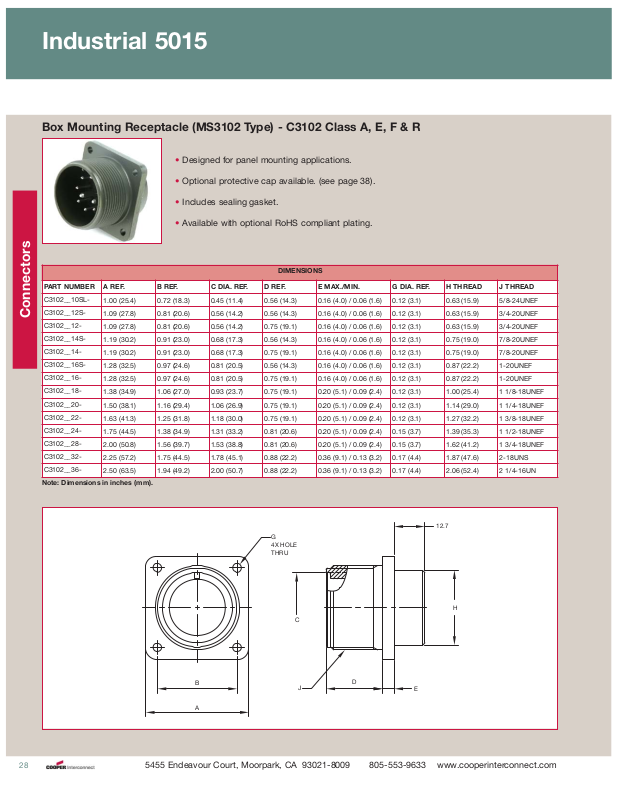

Box Mounting Receptacle (MS3102 Type) - C3102 Class A, E, F & R

DIMENSIONS

PART NU MBER A REF. B REF. C DIA. REF. D REF. E MAX./MIN. G DIA. REF. H THREAD J THREAD

C3102__10SL-

1.00 (25.4) 0.72 (18.3) 0.45 (11.4) 0.56 (14.3) 0.16 (4.0) / 0.06 (1.6) 0.12 (3.1) 0.63 (15.9) 5/8-24UNEF

C3102__12S-

1.09 (27.8) 0.81 (20.6) 0.56 (14.2) 0.56 (14.3) 0.16 (4.0) / 0.06 (1.6) 0.12 (3.1) 0.63 (15.9) 3/4-20UNEF

C3102__12-

1.09 (27.8) 0.81 (20.6) 0.56 (14.2) 0.75 (19.1) 0.16 (4.0) / 0.06 (1.6) 0.12 (3.1) 0.63 (15.9) 3/4-20UNEF

C3102__14S-

1.19 (30.2) 0.91 (23.0) 0.68 (17.3) 0.56 (14.3) 0.16 (4.0) / 0.06 (1.6) 0.12 (3.1) 0.75 (19.0) 7/8-20UNEF

C3102__14-

1.19 (30.2) 0.91 (23.0) 0.68 (17.3) 0.75 (19.1) 0.16 (4.0) / 0.06 (1.6) 0.12 (3.1) 0.75 (19.0) 7/8-20UNEF

C3102__16S-

1.28 (32.5) 0.97 (24.6) 0.81 (20.5) 0.56 (14.3) 0.16 (4.0) / 0.06 (1.6) 0.12 (3.1) 0.87 (22.2) 1-20UNEF

C3102__16-

1.28 (32.5) 0.97 (24.6) 0.81 (20.5) 0.75 (19.1) 0.16 (4.0) / 0.06 (1.6) 0.12 (3.1) 0.87 (22.2) 1-20UNEF

C3102__18-

1.38 (34.9) 1.06 (27.0) 0.93 (23.7) 0.75 (19.1) 0.20 (5.1) / 0.09 (2.4) 0.12 (3.1) 1.00 (25.4) 1 1/8-18UNEF

C3102__20-

1.50 (38.1) 1.16 (29.4) 1.06 (26.9) 0.75 (19.1) 0.20 (5.1) / 0.09 (2.4) 0.12 (3.1) 1.14 (29.0) 1 1/4-18UNEF

C3102__22-

1.63 (41.3) 1.25 (31.8) 1.18 (30.0) 0.75 (19.1) 0.20 (5.1) / 0.09 (2.4) 0.12 (3.1) 1.27 (32.2) 1 3/8-18UNEF

C3102__24-

1.75 (44.5) 1.38 (34.9) 1.31 (33.2) 0.81 (20.6) 0.20 (5.1) / 0.09 (2.4) 0.15 (3.7) 1.39 (35.3) 1 1/2-18UNEF

C3102__28-

2.00 (50.8) 1.56 (39.7) 1.53 (38.8) 0.81 (20.6) 0.20 (5.1) / 0.09 (2.4) 0.15 (3.7) 1.62 (41.2) 1 3/4-18UNEF

C3102__32-

2.25 (57.2) 1.75 (44.5) 1.78 (45.1) 0.88 (22.2) 0.36 (9.1) / 0.13 (3.2) 0.17 (4.4) 1.87 (47.6) 2-18UNS

C3102__36-

2.50 (63.5) 1.94 (49.2) 2.00 (50.7) 0.88 (22.2) 0.36 (9.1) / 0.13 (3.2) 0.17 (4.4) 2.06 (52.4) 2 1/4-16UN

Industrial 5015

Note: Dimensions in inches (mm).

• Designed for panel mounting applications.

• Optional protective cap available. (see page 38).

• Includes sealing gasket.

• Available with optional RoHS compliant plating.

Connectors

12.7

G 4X HOLE THRU

Specifications and Main Features
