Industrial 5015

DIMENSIONS

PART NU MBER A DIA. MAX. B MAX. C DIA. REF. D REF. E MAX./MIN. F MAX. G THREAD H THREAD

C3101A10SL-

0.86 (21.8) 0.64 (16.2) 0.45 (11.4) 0.56 (14.3) 0.16 (4.0) / 0.06 (1.6) 1.53 (38.9) 5/8-24UNEF 5/8-24UNEF

C3101A12S-

0.98 (25.0) 0.76 (19.3) 0.56 (14.2) 0.56 (14.3) 0.16 (4.0) / 0.06 (1.6) 1.69 (42.9) 3/4-20UNEF 5/8-24UNEF

C3101A12-

0.98 (25.0) 0.76 (19.3) 0.56 (14.2) 0.75 (19.1) 0.16 (4.0) / 0.06 (1.6) 2.06 (52.4) 3/4-20UNEF 5/8-24UNEF

C3101A14S-

1.11 (28.2) 0.89 (22.5) 0.68 (17.3) 0.56 (14.3) 0.16 (4.0) / 0.06 (1.6) 1.69 (42.9) 7/8-20UNEF 3/4-20UNEF

C3101A14-

1.11 (28.2) 0.89 (22.5) 0.68 (17.3) 0.75 (19.1) 0.16 (4.0) / 0.06 (1.6) 2.06 (52.4) 7/8-20UNEF 3/4-20UNEF

C3101A16S-

1.24 (31.4) 1.01 (25.6) 0.81 (20.5) 0.56 (14.3) 0.16 (4.0) / 0.06 (1.6) 1.69 (42.9) 1-20UNEF 7/8-20UNEF

C3101A16-

1.24 (31.4) 1.01 (25.6) 0.81 (20.5) 0.75 (19.1) 0.16 (4.0) / 0.06 (1.6) 2.06 (52.4) 1-20UNEF 7/8-20UNEF

C3101A18-

1.36 (34.5) 1.13 (28.8) 0.93 (23.7) 0.75 (19.1) 0.20 (5.1) / 0.09 (2.4) 2.06 (52.4) 1 1/8-18UNEF 1-20UNEF

C3101A20-

1.48 (37.6) 1.26 (32.0) 1.06 (26.9) 0.75 (19.1) 0.20 (5.1) / 0.09 (2.4) 2.19 (55.6) 1 1/4-18UNEF 1 3/16-18UNEF

C3101A22-

1.61 (41.0) 1.39 (35.2) 1.18 (30.0) 0.75 (19.1) 0.20 (5.1) / 0.09 (2.4) 2.19 (55.6) 1 3/8-18UNEF 1 3/16-18UNEF

C3101A24-

1.72 (43.8) 1.51 (38.4) 1.31 (33.2) 0.81 (20.6) 0.20 (5.1) / 0.09 (2.4) 2.31 (58.7) 1 1/2-18UNEF 1 7/16-18UNEF

C3101A28-

1.99 (50.5) 1.76 (44.8) 1.53 (38.8) 0.81 (20.6) 0.20 (5.1) / 0.09 (2.4) 2.31 (58.7) 1 3/4-18UNEF 1 7/16-18UNEF

C3101A32-

2.24 (57.0) 2.02 (51.2) 1.78 (45.1) 0.88 (22.2) 0.36 (9.1) / 0.13 (3.2) 2.44 (61.9) 2-18UNS 1 3/4-18UNS

C3101A36-

2.49 (63.2) 2.26 (57.5) 2.00 (50.7) 0.88 (22.2) 0.36 (9.1) / 0.13 (3.2) 2.44 (61.9) 2 1/4-16UN 2-18UNS

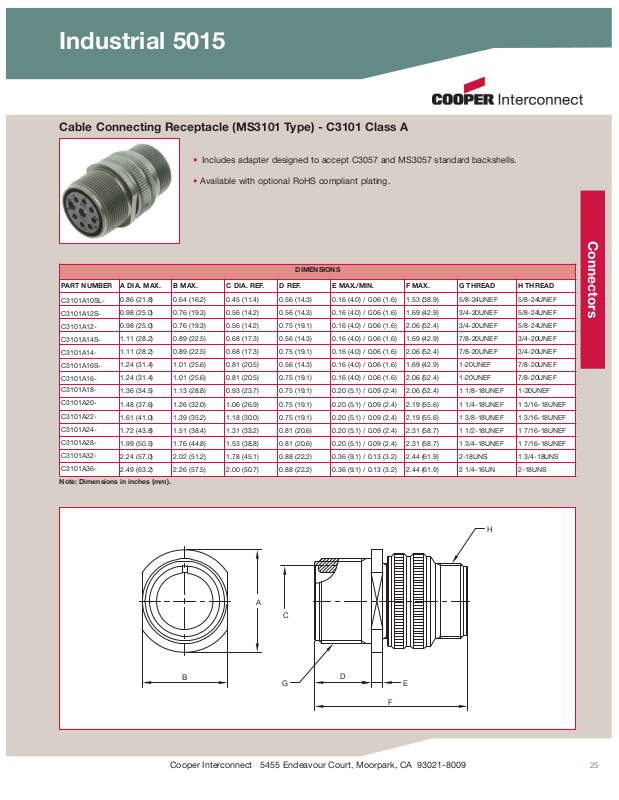

Cable Connecting Receptacle (MS3101 Type) - C3101 Class A

Note: Dimensions in inches (mm).

• Includes adapter designed to accept C3057 and MS3057 standard backshells.

• Available with optional RoHS compliant plating.
