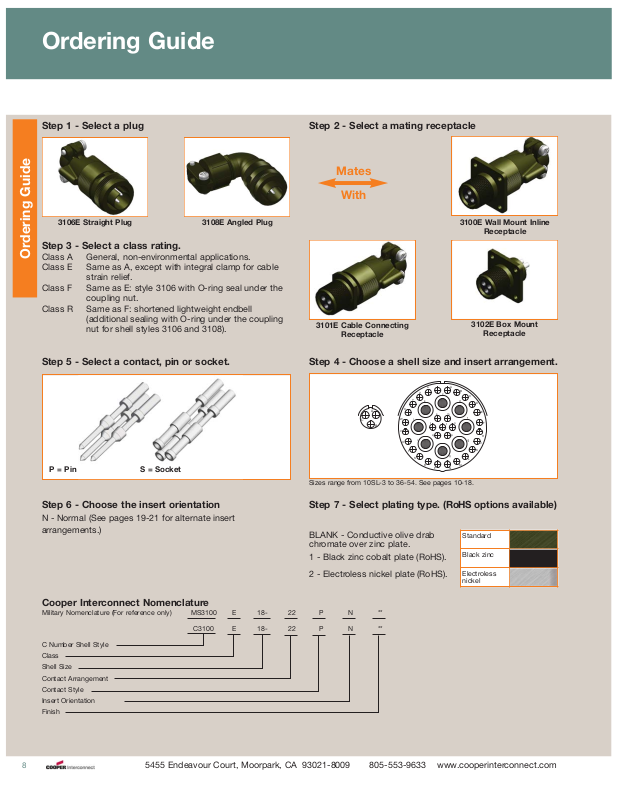

Ordering Guide

5455 Endeavour Court, Moorpark, CA 93021-8009 805-553-9633 www.cooperinterconnect.com

Cooper Interconnect Nomenclature

Step 1 - Select a plug Step 2 - Select a mating receptacle

Step 3 - Select a class rating.

Class A General, non-environmental applications. Class E Same as A, except with integral clamp for cable

strain relief.

Class F Same as E: style 3106 with O-ring seal under the

coupling nut.

Class R Same as F: shortened lightweight endbell

(additional sealing with O-ring under the coupling nut for shell styles 3106 and 3108).

Step 4 - Choose a shell size and insert arrangement.Step 5 - Select a contact, pin or socket.

Step 7 - Select plating type. (RoHS options available)

Ordering Guide

Mates

With

3106E Straight Plug

P = Pin S = Socket

3108E Angled Plug

3102E Box Mount

Receptacle

3101E Cable Connecting

Receptacle

3100E Wall Mount Inline

Receptacle

Step 6 - Choose the insert orientation

N - Normal (See pages 19-21 for alternate insert arrangements.)

Military Nomenclature (For reference only) MS3100 E 18- 22 P N **

C3100 E 18- 22 P N **

C Number Shell Style

Class

Shell Size

Contact Arrangement

Contact Style

Insert Orientation

Finish

Standard

Black zinc

Electroless nickel

Sizes range from 10SL-3 to 36-54. See pages 10-18.

BLANK - Conductive olive drab chromate over zinc plate.

1 - Black zinc cobalt plate (RoHS).

2 - Electroless nickel plate (RoHS).
