Page 1

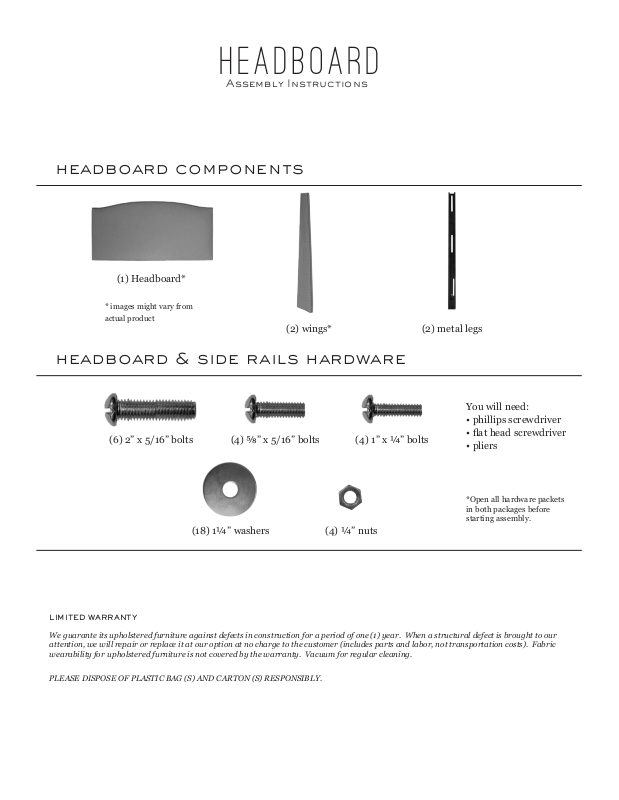

headboard
Assembly Instructions
headboard components
(1) Headboard*
* images might vary from
actual product
(2) wings*
headboard & side rails hardware
(2) metal legs
You will need:
• phillips screwdriver
(6) 2” x 5/16” bolts
(18) 1¼” washers
LIMITED WARRANTY
We guarante its upholstered furniture against defects in construction for a period of one (1) year. When a structural defect is brought to our
attention, we will repair or replace it at our option at no charge to the customer (includes parts and labor, not transportation costs). Fabric
wearability for upholstered furniture is not covered by the warranty. Vacuum for regular cleaning.
PLEASE DISPOSE OF PLASTIC BAG (S) AND CARTON (S) RESPONSIBLY.
(4) ⅝” x 5/16” bolts (4) 1” x ¼” bolts
(4) ¼” nuts
• at head screwdriver
• pliers
*Open all hardware packets
in both packages before
starting assembly.
Page 2
Step 1
1
2
Attach each wing to headboard using:
1. (1) 2” x 5/16” bolt and (1) 1¼” washer
2. (1) 2” x 5/16” bolts and (1) 1¼” washer
3. Repeat process for the other wing.
Step 2
Insert metal legs through the
holes in the headboard. Make
sure that you place the correct
leg facing “Out.”
Attach each metal leg to the
headboard using (2) ⅝” x 5/16”
bolts and (2) 1¼” washers for
each leg.
