Page 1

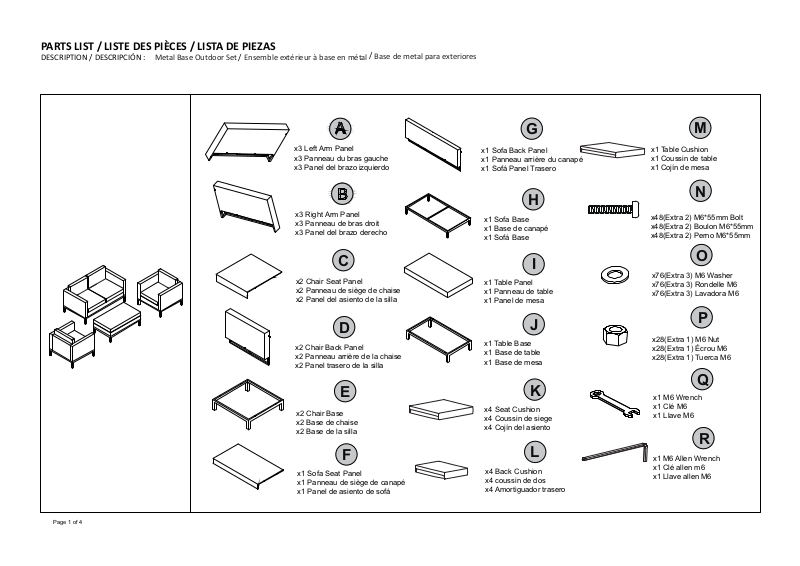

PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS
DESCRIPTION / DESCRIPCIÓN : Metal Base Outdoor Set /
Ensemble extérieur à base en métal
/
Base de metal para exteriores
x3 Left Arm Panel
x3 Panneau du bras gauche
x3 Panel del brazo izquierdo
x3 Right Arm Panel
x3 Panneau de bras droit
x3 Panel del brazo derecho
C
x2 Chair Seat Panel
x2 Panneau de siège de chaise
x2 Panel del asiento de la silla
D
x2 Chair Back Panel
x2 Panneau arrière de la chaise
x2 Panel trasero de la silla
E
x2 Chair Base
x2 Base de chaise
x2 Base de la silla
F
x1 Sofa Seat Panel
x1 Panneau de siège de canapé
x1 Panel de asiento de sofá
G
x1 Sofa Back Panel
x1 Panneau arrière du canapé
x1 Sofá Panel Trasero
H
x1 Sofa Base
x1 Base de canapé
x1 Sofá Base
I
x1 Table Panel
x1 Panneau de table
x1 Panel de mesa
J
x1 Table Base
x1 Base de table
x1 Base de mesa
K
x4 Seat Cushion
x4 Coussin de siege
x4 Cojín del asiento
L
x4 Back Cushion
x4 coussin de dos
x4 Amortiguador trasero
M
x1 Table Cushion
x1 Coussin de table
x1 Cojín de mesa
N
x48(Extra 2) M6*55mm Bolt
x48(Extra 2) Boulon M6*55mm
x48(Extra 2) Perno M6*55mm
O
x76(Extra 3) M6 Washer
x76(Extra 3) Rondelle M6
x76(Extra 3) Lavadora M6
P
x28(Extra 1) M6 Nut
x28(Extra 1) Écrou M6
x28(Extra 1) Tuerca M6
Q
x1 M6 Wrench
x1 Clé M6
x1 Llave M6
R
x1 M6 Allen Wrench
x1 Clé allen m6
x1 Llave allen M6
Page 1 of 4
Page 2
ASSEMBLY INSTRUCTIONS / NOTICE DE MONTAGE / INSTRUCCIONES DE MONTAJE
/
DESCRIPTION / DESCRIPCIÓN : Metal Base Outdoor Set /
Ensemble extérieur à base en métal
Base de metal para exteriores
Steps 1-3
Chair Assembly:
Lay Right Arm Panel (B) on a soft dry
surface and align the bolt holes on Chair
Back Panel (D) with those on the arm
panel. Add Washer (O) to Bolt (N) and
insert through the bolt holes as shown in
the diagram. Add another Washer (O) and
then Nut (P) and finger tighten. Use the
provided Wrench (Q) and Allen Wrench(R)
to tighten, but do not tighten completely.
Now add Seat Panel (C) aligning the bolt
holes, and repeat the bolt process as in
step 1. Now add Left Arm Panel (A)
repeating the bolt process. Make sure all of
the panels are aligned properly.
Step1
O
Step3
Step2
R
N
O
D
R
N
B
O
P
Q
O
P
Q
D
C
B
Step4
Step 4
Chair Assembly Continued:
Align the bolt holes in Chair Base (E) with
the bolt holes in assembled parts (A,
B&C). Add Washer (O) to Bolt (N) and
insert into the bolt holes and finger
tighten, but do not tighten completely.
After finger tightening all four bolts, make
sure all the parts are properly aligned and
tighten all bolts completely.
Page 2 of 4
A
E
Q
P
O
O
N
R
D
C
B
O
N
R
D
Made in China / Fabriqué au Chine / Hecho en China
A
C
B
Page 3
ASSEMBLY INSTRUCTIONS / NOTICE DE MONTAGE / INSTRUCCIONES DE MONTAJE
/
DESCRIPTION / DESCRIPCIÓN : Metal Base Outdoor Set /
Ensemble extérieur à base en métal
Base de metal para exteriores
Steps 5-7
Sofa Assembly:
Lay Right Arm Panel (B) on a soft dry
surface and align the bolt holes on Sofa
Back Panel (G) with those on the arm
panel. Add Washer (O) to Bolt (N) and
insert through the bolt holes as shown in
the diagram. Add another Washer (O) and
then Nut (P) and finger tighten. Use the
provided Wrench (Q) and Allen Wrench(R)
to tighten, but do not tighten completely.
Now add Sofa Seat Panel (F) aligning the
bolt holes, and repeat the bolt process as
in step 1. Now add Left Arm Panel (A)
repeating the bolt process. Make sure all of
the panels are aligned properly.
Step 8
Sofa Assembly Continued:
Align the bolt holes in Sofa Base (H) with
the bolt holes in assembled parts (A,
B&F). Add Washer (O) to Bolt (N) and
insert into the bolt holes and finger
tighten, but do not tighten completely.
After finger tightening all four bolts, make
sure all the parts are properly aligned and
tighten all bolts completely.
Step5
O
Step7
Step6
R
N
O
G
R
N
O
B
P
Q
O
P
Q
G
F
B
Step8
A
H
G
Q
P
O
O
N
R
F
O
R
N
B
G
A
F
B
Page 3 of 4
Made in China / Fabriqué au Chine / Hecho en China
Page 4
ASSEMBLY INSTRUCTIONS / NOTICE DE MONTAGE / INSTRUCCIONES DE MONTAJE
/
DESCRIPTION / DESCRIPCIÓN : Metal Base Outdoor Set /
Ensemble extérieur à base en métal
Base de metal para exteriores
Step 9
Ottoman Table Assembly:
Align the bolt holes in Ottoman Table
Base(J) with the bolt holes in the Table
Panel (I) Add Washer (O) to Bolt (N).
Insert the bolts and washers into the bolt
holes and finger tighten, but do not tighten
completely. After all four bolts have been
finger tightened, making sure that the top
and base are aligned, use provided Allen
Wrench (R) to tighten all bolts completely.
Step9
Step10
L
L
K
J
O
N
R
I
L
K
K
M
L
K
Step 10
Place the assembled furniture in your
desired location. Add Table Cushion (M),
Seat Cushions (K), and Back Cushions
(L).
Enjoy!
Page 4 of 4
Made in China / Fabriqué au Chine / Hecho en China
