Page 1

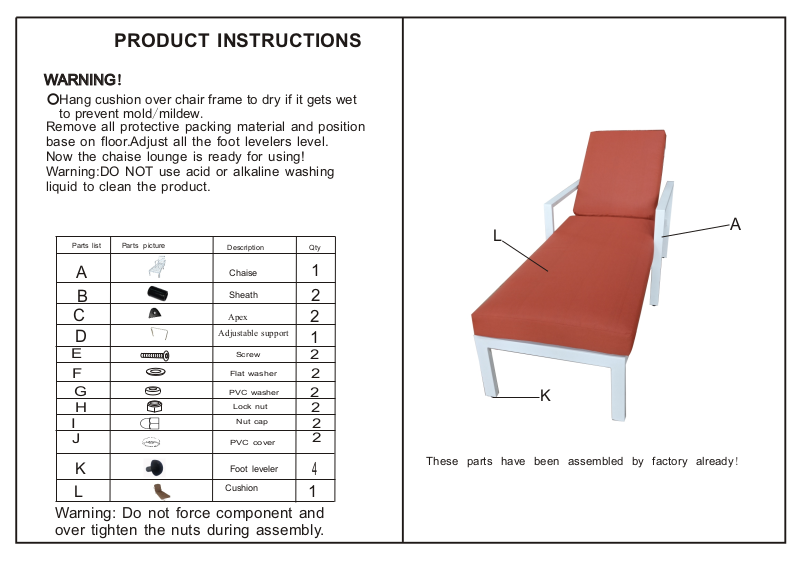

PRODUCT INSTRUCTIONS
WARNING!WARNING!
Hang cushion over chair frame to dry if it gets wet
to prevent mold/mildew.
Remove all protective packing material and position
base on floor.Adjust all the foot levelers level.
Now the chaise lounge is ready for using!
Warning:DO NOT use acid or alkaline washing
liquid to clean the product.
Parts list
Parts picture
Description
Qty
A
L
C
E
F
G
H
I
J
L
A
B
D
K
Chaise
Sheath
Apex
Adjustable support
Screw
Flat washer
PVC washer
Lock nut
Nut cap
PVC cover
Foot leveler
Cushion
1
2
2
1
2
2
2
2
2
2
4
1
Warning: Do not force component and
over tighten the nuts during assembly.
K
These parts have been assembled by factory already!
Page 2
PRODUCT INSTRUCTIONS
WARNING!WARNING!
Remove all protective packing material and position
base on floor. Adjust all the foot levelers level . Now
the table is ready for using!
Warning: DO NOT use acid or alkaline washing
liquid to clean the product.
A
A
B
TABLE
FOOT LEVELER
1
4
B
These parts have been assemble by factory already!
Page 3
PRODUCT INSTRUCTIONS
WARNING!WARNING!
Hang cushion over chair frame to dry if it gets wet
to prevent mold/mildew.
Remove all protective packing material and position
base on floor. Adjust all the foot levelers level , and
put on the cushion, attached the cushion on the chair
frame. Now the chair is ready for using!
Warning: DO NOT use acid or alkaline washing
liquid to clean the product.
D
A
A
B
C
D
CHAIR
FOOT LEVELER
SEAT CUSHION
BACK CUSHION
1
4
1
1
C
B
These parts have been assemble by factory already!
Page 4
PRODUCT INSTRUCTIONS
WARNING!WARNING!
Hang cushion over chair frame to dry if it gets wet
to prevent mold/mildew.
Remove all protective packing material and position
base on floor. Adjust all the foot levelers level , and
put on the cushion, attached the cushion on the chair
frame. Now the chair is ready for using!
Warning: DO NOT use acid or alkaline washing
liquid to clean the product.
D
C
A
A
B
C
D
CHAIR
FOOT LEVELER
SEAT CUSHION
BACK CUSHION
1
4
B
2
2
These parts have been assemble by factory already!
