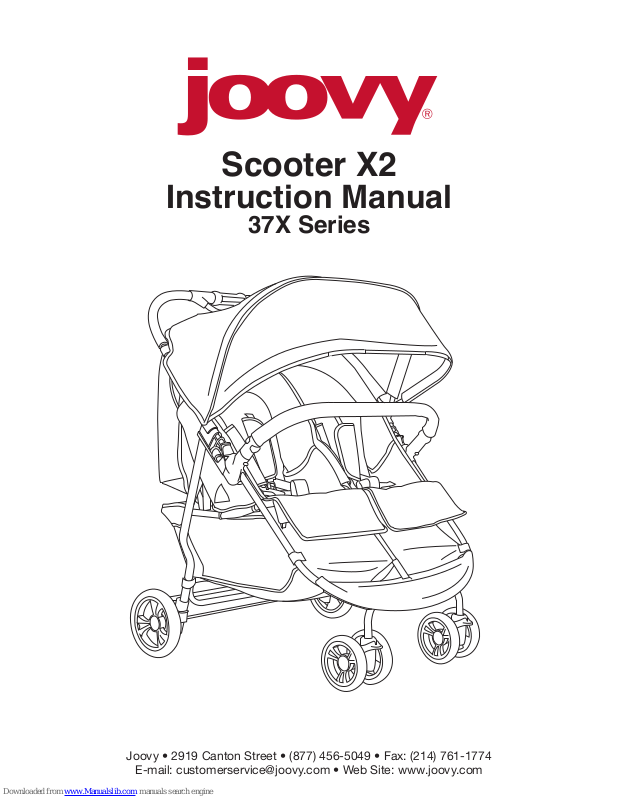

Joovy Scooter X2 Instruction Manual

Scooter X2

Instruction Manual

37X Series

Joovy • 2919 Canton Street • [phone] • Fax: [phone]

E-mail: [e-mail] • Web Site: www.joovy.com

Scooter X2 Instruction Manual

Page 1

Please read this instruction manual completely before using

this stroller. Keep these instructions for future reference.

• Failure to follow these instructions could result in serious injury or death.

• Never leave child unattended.

• Avoid serious injury from falling or sliding out.

• Always use safety belts and ensure that all children are positioned according to these
instructions.

• Be certain that the stroller is fully opened, locked securely into position, and the wheel
brakes are on before allowing children near the stroller.

• The maximum weight of the child that can be seated in each seat is 45 lbs.

• Use the more upright seatback positions ONLY for children who are at least 6 months old.

• Use of the stroller with a child weighing more than 45 lbs, or two children totaling more than
90 lbs. will cause excessive wear and stress on the stroller and may cause a hazardous
unstable condition.

• Never allow a child to step on the footrest to get into or out of the stroller.

• Do not use the stroller on stairways or escalators.

• Keep children away from the stroller when folding or unfolding.

• Hanging purses, shopping bags, parcels, diaper bags or other accessory items from the
handlebar or any other parts of the stroller may change the balance of the stroller and cause
a hazardous unstable condition.

• The maximum weight that can be carried in the storage basket is 5 lbs. Excessive weight
may result in a hazardous unstable condition.

• The total weight that can be placed in the zipper pockets should be less than 2 lbs.

• The total weight that can be placed in the cup holders should be less than 2 lbs.

• Never carry hot beverages or open containers in the cup holders.

• The total weight that can be placed in the in-seat mesh pockets should be less than 2 lbs.

• Never allow your stroller to be used as a toy.

• Discard all packaging materials properly. Do not allow children to play with them.

• Check your stroller for loose rivets, snaps, worn parts, and torn material or stitching on a
regular basis.

• Discontinue use of the stroller should it malfunction or become damaged.

Please do not return this product to the store

If you experience any diculty with the assembly or use of this product, or if you have a question

regarding these instructions, please contact our Customer Service Department at [phone]

between the hours of 8:30 am and 5:00 pm Central Time.

Please note: Styles and colors may vary.

!

WARNING

Scooter X2 Instruction Manual

Figure 1.1

Page 2

Assembling and Using your Stroller

Figure 2.1

Figure 2.2

!

CAUTION

Adult assembly is required for this product. This package contains small parts. Keep small

parts away from children during assembly. No Tools Required.

1 Unpacking the Product

• Carefully remove stroller and all parts from the box
and plastic bag.

• Remove any cardboard packing materials from the
stroller.

• Remove everything from the box and identify the
parts using Figure 1.1 (not to scale):

stroller, front wheel set (2), rear wheels (2), rear axle

and brake set, canopy, bumper bar, small washers
(2), spring washers (2), large washers (4), snap pins
(2), hubcaps (2) and documents [not shown]). Also,
extra rear wheel assembly parts may be included.

• Discard all packaging materials properly including
plastic coverings.

• DO NOT allow children to play with any packaging
materials.

2 Unfolding the Stroller

• Keep children away from stroller while unfolding.

• Orient the stroller with the handlebar facing upward
and closest to you.

• If necessary, release the folding lock located on the
right side by lifting the lock off of the extended rivet.

See Figure 2.1.

• Pull upwards on the handlebar until the stroller is
completely opened and the latching mechanism on
each side is engaged. See Figure 2.2.

NOTE: Be careful not to scratch the oor when

opening the stroller.

• Visually check and gently push downward on the
handlebar to ensure that the stroller is completely
opened and locked before ANY use of the product.

!

WARNING

ALWAYS keep children away from the stroller when

unfolding.

x2 x4 x2 x2

x2

small

washers

large

washers

spring

washers

snap

pins

hub

caps

Scooter X2 Instruction Manual

Page 3

Small Washer

Rear Wheel

Large Washer

Spring Washer

Snap Pin

Step 1

Step 2

Step 3

Step 4

Large Washer

Step 5

Step 6

REAR WHEEL SEQUENCE

Figure 3.1

Figure 3.2

3 Installing the Rear Wheel Axle
and Brake Set and Rear Wheels

• In a clean, dry place rest the stroller upside down with the rear
legs facing upwards.

• Locate the rear axle and brake set and slide it onto the rear legs
with the link brake facing the rear of the stroller. Be sure to slide
each side all the way on until the push pins are engaged in the
holes of the plastic.

NOTE: You may need to push each of the push pins in to slide

the plastic into place. See Figure 3.1.

• Pull upward on each side of the rear axle to ensure it is installed
properly.

• Push the bar linking the brake levers into the disengaged
position. See Figure 3.2.

TO INSTALL A REAR WHEEL

• Locate a small washer and slide the washer onto the axle.

• Next place a rear wheel onto the axle over the small washer.

NOTE: The brake teeth on the wheel should be facing inward

toward the brake lever.

• Then place one large washer onto the axle over the wheel.

• Next slide a spring washer onto the axle.

• Take another large washer and slide it onto the axle.

• Push the washers in to expose the axle hole. Then take one snap
pin and insert the straight leg into the small hole in the axle.

Push it rmly into this hole until the round portion of the other leg

snaps completely around the outside of the axle.

NOTE: The snap pin is curved (concave) to make insertion

easier.

• Repeat the SAME installation sequence of washers, wheel, and
snap pin for the remaining wheel.

• Install a hubcap onto each wheel by aligning the 5 tabs on the
hubcap with the 5 slots in the wheel, and then pushing it into
place. Ensure that ALL 5 snaps have engaged securely and the
hubcap cannot be pulled off.

4 Rear Wheel Brakes

• The Scooter comes equipped with a linked rear wheel brake
system.

• To engage the rear wheel brakes, push down on one of the
brake levers or the bar that connects the levers. See Figure 4.1.
The stroller may require slight forward or rearward movement in
order to line up the teeth on the brake with each wheel brake
cluster.

• Check that the brakes are properly applied by attempting to
push the stroller backwards and forwards.

• To release the brakes, gently lift up on one of the brake levers or
the bar that connects the levers. See Figure 4.2.

Scooter X2 Instruction Manual

Page 4

Figure 5.1

Figure 5.2

!

WARNING

Always make sure the wheel brakes are engaged when the stroller is not being pushed

so that the stroller will not roll away. Never leave stroller unattended, especially on a hill or

incline, as the stroller may tip over or slide.

Figure 4.1 Figure 4.2

Figure 6.1

5 Installing the Front Wheels

• Position the stroller so it is resting on the rear wheels
and the handlebar. Locate one front wheel set and
position the wheel set with the swivel lock tab facing
upward. Insert it onto a plastic post located at the
bottom front on one side of the stroller until an audible
click is heard. See Figure 5.1.

• Pull outward on the wheel set to ensure the wheel set is
installed properly.

• Repeat this procedure for the other wheel.

• To remove a front wheel set, squeeze the two tabs at
the bottom of the front wheel housing and slide the
wheel set off of the plastic post. See Figure 5.2.

6 Front Wheel Locks

• The front wheels can be either in swivel mode or locked
mode.

• To put each front wheel set into its locked mode, push
up on the locking tab located at the top of the wheel
housing and between the wheels. Be sure to lift the
locking tab all the way up until an audible click is heard.
See Figure 6.1.

NOTE: You may need to rotate the front wheel so the

swivel lock tab is facing the front of the stroller.

• To unlock each wheel and put it into swivel mode, push
down on the locking tab to disengage the lock.

Scooter X2 Instruction Manual

Page 5

7 Seatback Positioning

Each seatback can be adjusted to any position from fully
upright to reclining. These seats should only be used
for children who are at least 3 months old. For children
between 3 and 6 months, use the most reclined position.
For children 6 months and older, use the more upright
positions.

• Engage the rear wheel brakes.

• Locate the recline mechanism on the backside of the
seat.

• To recline a seat, grasp the buttons on the top and
bottom of the recline mechanism and gently pull
towards the rear of the stroller until the seat is in the
desired position. See Figure 7.1.

• To adjust a seatback to a more upright position, pull the
straps at the end of the recline mechanism rearward
while pushing the mechanism forward until the seatback
is in the desired position. See Figure 7.2.

NOTE: To get a seatback into its most upright position

you may need to push the seatback toward the front of
the stroller before pulling the straps.

!

WARNING

ALWAYS ensure that the seat back is secured into position before placing a child in the seat.

Push down on the seatback to be sure it is secure. NEVER adjust the seatback when the

child is in the seat. Use the more upright seatback positions ONLY for children who are at

least 6 months old.

8 Adjusting the Leg Supports

The leg support can be adjusted to two positions horizontal or all the way down.

• To place the leg support into the down position, locate the trigger mechanism underneath BOTH sides
of the leg support on the bottom. Squeeze BOTH triggers and rotate the leg support down.

See Figure 8.1.

NOTE: The leg support does not “lock” into the down position, but will remain there by gravity only.

• There are fabric aps that cover the triggers. If necessary, pull each ap over the trigger and attach

the Velcro® to secure it.

• To place the leg support into the horizontal position, pull up on both sides of the leg support until it is
locked into position. See Figure 8.2.

• Push down on both sides of the leg support to ensure it is secure.

Figure 7.1

Figure 7.2

!

WARNING

NEVER allow a child to step onto or sit on the leg support. This may cause the stroller to tip

over and injure the child.

Scooter X2 Instruction Manual

Page 6

Figure 8.2

Figure 8.1

9 Installing/Removing the
Bumper Bar

• Remove the two safety caps from the frame mount
points by pressing the release button and pulling each
cap off. See Figure 9.1.

• Locate the bumper bar and orient it with the male tting

pointed towards the seat unit and the shiny round rivet

head facing upward. While holding the male ttings
straight, insert the male ttings on the bumper bar into
the female ttings located on both sides of the seat.

You will hear both sides of the bumper bar “click” in.

See Figure 9.2.

• Pull outward on the bumper bar to ensure it is installed
properly and securely.

• To remove the bumper bar, press the buttons located

on the underside of both male ttings inward and pull

the bumper bar away from the seat. See Figure 9.3.

• The bumper bar fabric cover can be removed for
cleaning. To remove the fabric cover, simply open the
zipper on the inside of the fabric cover and pull the
cover off of the bumper bar.

• To replace the cover, remove the bumper bar from the

stroller, t the cover over the bumper bar with the zipper

facing inward and close the zipper completely.

• When using the stroller without the bumper bar always
replace the safety caps.

!

WARNING

The bumper bar is not a restraint device. Always secure your child with the seat belt. NEVER

lift the stroller by the bumper bar. Use caution when attaching the bumper bar when there is

a child seated in the stroller.

Figure 9.1

Figure 9.3

Figure 9.2

Scooter X2 Instruction Manual

Page 7

10 Installing, Operating and
Removing the Canopy

• Stand behind the stroller with the stroller in the unfolded
position.

• Orient the canopy in front of the handlebar with the visor
towards the front of the stroller.

• Locate the plastic slide locks on the bottom of each side

of the canopy and slide them onto the plastic tting on

each side of the stroller just above the rear leg.

See Figure 10.1.

• Push each side of the canopy rmly down along the
tting until it cannot go any further.

• Fit each rear canopy apron around the back of each
seat.

• Attach the Velcro on each canopy apron to the Velcro®
on the sides and back of each seat. See Figure 10.2.

• Attach the Velcro® tabs at the top rear corners of the
canopy to the handle tubes just below the handlebar
foam. See Figure 10.3.

• Open the canopy by pulling forward on the front edge.

• The canopy and visor can be adjusted into several
positions ranging from fully closed to fully extended, or
any position in between. See Figure 10.4.

• The visor can be opened (or closed) by pulling (or
pushing) it from under the canopy.

• Note: The top rear portion of the canopy has a roll back

window. To open, pull the forward edge up, roll the ap

back and secure it using the elastic loop attachment.

• To close the canopy, push the front edge of the canopy
toward the rear of the stroller.

• To remove the canopy, undo the Velcro® attachments
on the sides and back of the seat and the handle tubes.

Then, slide the canopy up off of both ttings on the

sides of the stroller. See Figure 10.5.

Figure 10.1

Figure 10.2

Figure 10.3

Figure 10.4

Figure 10.5

Scooter X2 Instruction Manual

Page 8

11 Securing the Child

• There are three height adjustment positions for the
shoulder harness. Adjust the height to the closest

height above your child’s shoulders.

• To remove the shoulder harness, turn the plastic ends
sideways and push them through the slots in the
seatback. Reattach the harness at the proper height
by reinserting the plastic ends through the slots. See
Figure 11.1. Ensure both straps are the same height.

• To remove the crotch strap, turn the plastic end
sideways and push it through the slot in the seat bottom.
Reattach the crotch strap by pushing the plastic end
down through the slot.

• Remove the waist straps by sliding the strap through
the small opening in the metal D-ring, then pull the
strap away from the seat. See Figure 11.2. Reattach
by pushing the metal-D ring through the slot in the seat,
wrap the strap around the seat rear tube. Slide the
strap through the small opening of the metal D-Ring
and pull the strap to secure it to the tube. Repeat for the
other end of the strap

• To unlatch the buckle press the center button and
remove the male ends of each buckle.

See Figure 11.3.

• Carefully place the child in the seat with the shoulder
straps over their shoulders and chest. Then place the

crotch strap between the child’s legs.

• Bring the shoulder/waist buckles into the crotch buckle
until the shoulder/waist buckles snap into place.

See Figure 11.4.

• Tighten the waist belt to be snug around the child’s

waist.

• The shoulder, waist, and crotch straps may be adjusted
using the sliding buckles on these straps.

Figure 11.1

Figure 11.2

Figure 11.3

Figure 11.4

!

WARNING

Avoid serious injury from falling or sliding out.

Always use the safety harness.

12 Storage Basket

The maximum weight that can be carried in the storage
basket is 5 lbs. Excessive weight may result in a
hazardous unstable condition.

NOTE: The basket can be removed if desired by
unsnapping all of the snaps, opening the zipper in the
front and releasing Velcro® straps.

Scooter X2 Instruction Manual

Page 9

Maintenance

All of the ttings, snaps, locks, rivets, and other hardware and plastic parts on the stroller should be
inspected periodically to ensure that they are secured properly and not damaged or malfunctioning. The
safety harness, as well as all other straps and fabric items and their stitching should also be inspected
periodically to ensure that they are secured properly and not loose, torn or otherwise damaged. All
moving parts, such as wheels, brakes, and hinges should also be checked periodically to ensure they

are operating properly.

Any missing, broken, or worn components should be replaced immediately, and the stroller should not
be used until they are replaced. Only original manufacturer’s components should be used. If needed,
please contact Joovy at our toll-free phone number.

Cleaning

The fabric material on this stroller can be cleaned using mild household soap or detergent and warm
water on a sponge or clean cloth. Always allow the fabric to completely air dry before using the stroller.

The frame and wheels should always be kept clean and free of dirt and foreign matter, especially after
operating the stroller in rain, snow, or other harsh environments. Use a sponge or cloth dampened with
warm water and a mild detergent cleaner to clean the wheels after such use.

13 Folding the Stroller

NOTE: BOTH SEATBACKS MUST BE FULLY RECLINED

TO ACHIEVE THE MOST COMPACT FOLD.

• Keep children away from stroller while folding.

• Position the stroller with the handle bars closest to you.

• Engage the rear wheel brakes.

• Close the canopy and push it to the rear of the stroller.

• Recline each seatback downward until it cannot go any
further.

• To fold, squeeze the button on the fold mechanism in
the center of the handlebar and rotate the mechanism
forward until the stroller begins to collapse. Gently
rotate the stroller downward until the stroller is fully
collapsed. See Figure 13.1.

• Locate the locking latch near the canopy on the right
side of the stroller and rotate the latch until it is engaged
on the extended rivet on the rear leg tube.

See Figure 13.2.

CAUTION: While folding the stroller, be careful to keep

your ngers from being pinched by moving parts.

Figure 13.1

Figure 13.2

!

WARNING

ALWAYS keep children away from the stroller when folding.

Scooter X2 Instruction Manual

Page 10

SATISFACTION GUARANTEED

We want you to be completely satised with your purchase of this product.
Should you experience any difculty in assembling or using this product, or

if you have any questions, please contact our Customer Service Department
at [phone] between the hours of 8:30 am and 5:00 pm Central Time.

Please log onto www.joovy.com to register your new Joovy product.

Joovy • 2919 Canton Street • [phone] • Fax: [phone]

E-mail: [e-mail] • Web Site: www.joovy.com

©Joovy 2013 • Document Version 100913
