j o n e s s t e p h e n s c o r p o r a t i o n
jones stephens corporation
3249 moody parkway • moody, alabama 35004
toll free phone: 1-800-355-6637 • toll free fax: 1-800-462-6991
www.plumbest.com
UPC appro v e d
Two-hole face plates
Bolt holes on top elbows are
pre-threaded
All drains 3/8” thread size for
t e s t i n g
This product and others like it can be found
in the Jones Stephens catalog. Call today
to order your catalog or download it from
our website: www.plumbest.com

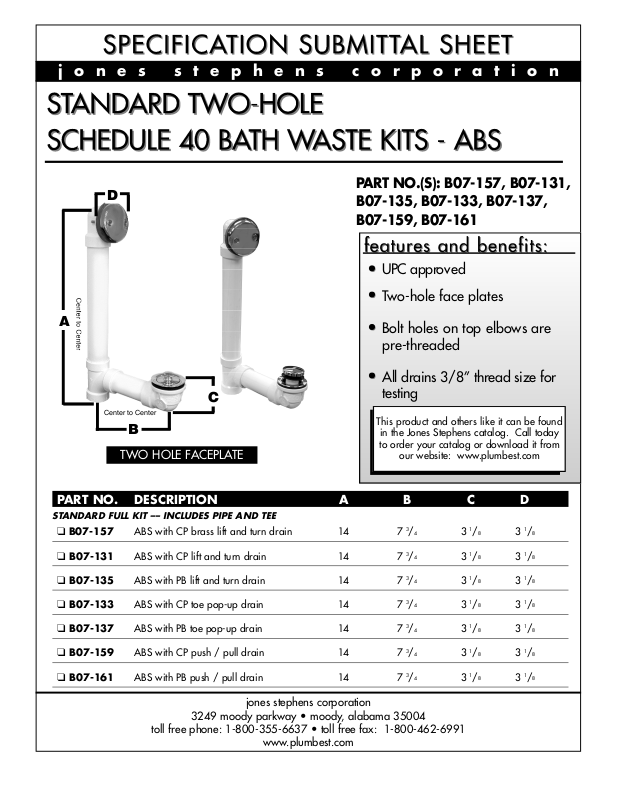

PART NO. DESCRIPTION A B C D
STANDARD FULL KIT –– INCLUDES PIPE AND TEE
❑
B07-157 ABS with CP brass lift and turn drain 1 4 7 3/
4
3 1/
8
3 1/
8
❑
B07-131 ABS with CP lift and turn drain 1 4 7 3/
4
3 1/
8
3 1/
8
❑
B07-135 ABS with PB lift and turn drain 1 4 7 3/
4
3 1/
8
3 1/
8
❑
B07-133 ABS with CP toe pop-up drain 1 4 7 3/
4
3 1/
8
3 1/
8
❑
B07-137 ABS with PB toe pop-up drain 1 4 7 3/
4
3 1/
8
3 1/
8
❑
B07-159 ABS with CP push / pull drain 1 4 7 3/
4
3 1/
8
3 1/
8
❑
B07-161 ABS with PB push / pull drain 1 4 7 3/
4
3 1/
8
3 1/
8
PART NO.(S): B07-157, B07-131,
B07-135, B07-133, B07-137,
B07-159, B07-161
TWO HOLE FACEPLATE
D
A
Center to Center
B
C
