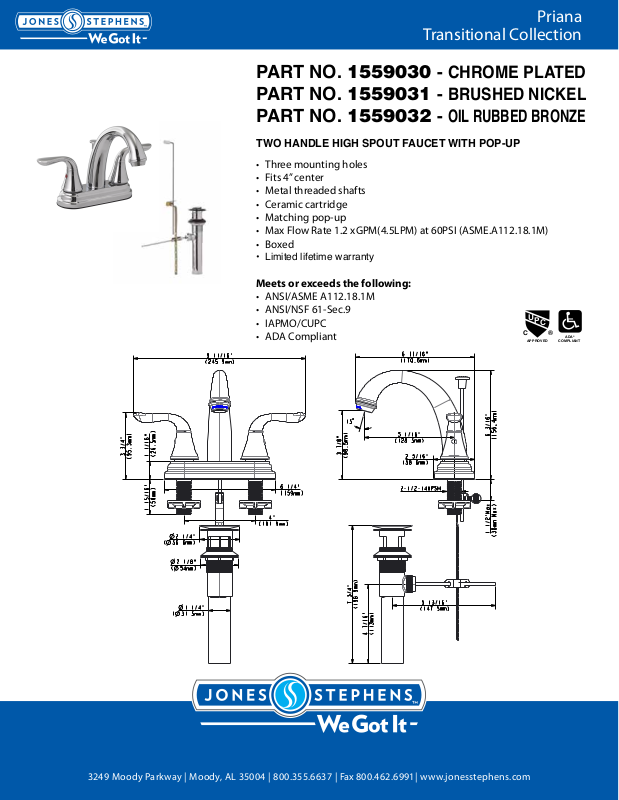

Lavatory Faucet
Priana
Transitional Collection
PART NO. 1559030 -
PART NO. 1559031 -
PART NO. 1559032 -
TWO HANDLE HIGH SPOUT FAUCET WITH POP-UP
• Three mounting holes
• Fits 4” center
• Metal threaded shafts
• Ceramic cartridge
• Matching pop-up
• Max Flow Rate 1.2 xGPM(4.5LPM) at 60PSI (ASME.A112.18.1M)
• Boxed
• Limited lifetime warranty
Meets or exceeds the following:
• ANSI/ASME A112.18.1M
• ANSI/NSF 61-Sec.9
• IAPMO/CUPC
• ADA Compliant
CHROME PLATED
BRUSHED NICKEL
OIL RUBBED BRONZE
U
P
C
APPROVED
®C
ADA
COMPLIANT
®
3249 Moody Parkway | Moody, AL 35004 | 800.355.6637 | Fax 800.462.6991| www.jonesstephens.com
Lavatory Faucet
1559030-Chrome
1559031-Brushed Nickel
1559032-Oil Rubbed Bronze
Ceramic Cartridge
Metal Handle
Max Flow Rate 1.2GPM(4.5LPM)
at 60PSI (ASME.A112.18.1M)
Metal Pop-up
No.
Component Desription
1
Lock Nut
2
Bottom Plate
3
Screw
4
Waterway
5
O-ring
6
Deck Plate
7
Gasket
8
Cartridge
9
Lock Nut
10
Index Button
11
Screw
12
Handle
13
Spout
14
Gasket
15
Aerator
16
Aerator Cover
17
Handle
18
Index Button
19
Cartridge
20
Lift Rod Head
21
Lift Rod
22
Pop -up
Priana
Transitional Collection
PART NO. 1559030 -
PART NO. 1559031 -
PART NO. 1559032 -
TWO HANDLE HIGH SPOUT FAUCET WITH POP-UP
CHROME PLATED
BRUSHED NICKEL
OIL RUBBED BRONZE
3249 Moody Parkway | Moody, AL 35004 | 800.355.6637 | Fax 800.462.6991| www.jonesstephens.com
