*FIXTURE IS UL RATED
FOR DAMP LOCATIONS
ILLUSTRATION A
(F)
(G)
(D)
(J)

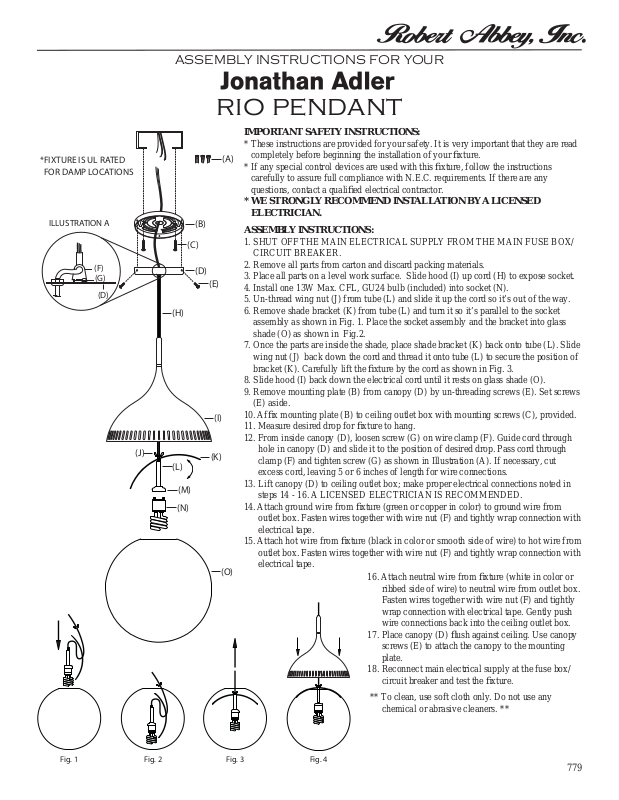

ASSEMBLY INSTRUCTIONS FOR YOUR
rio pendant
IMPORTANT SAFETY INSTRUCTIONS:
* These instructions are provided for your safety. It is very important that they are read
completely before beginning the installation of your fi xture.
(A)
* If any special control devices are used with this fi xture, follow the instructions
carefully to assure full compliance with N.E.C. requirements. If there are any
questions, contact a qualifi ed electrical contractor.
* WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED
ELECTRICIAN.
(B)
(C)
(D)
(E)
(H)
(K)
(L)
(M)
(N)
ASSEMBLY INSTRUCTIONS:
1. SHUT OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/
CIRCUIT BREAKER.
2. Remove all parts from carton and discard packing materials.
3. Place all parts on a level work surface. Slide hood (I) up cord (H) to expose socket.
4. Install one 13W Max. CFL, GU24 bulb (included) into socket (N).
5. Un-thread wing nut (J) from tube (L) and slide it up the cord so it’s out of the way.
6. Remove shade bracket (K) from tube (L) and turn it so it’s parallel to the socket
assembly as shown in Fig. 1. Place the socket assembly and the bracket into glass
shade (O) as shown in Fig.2.
7. Once the parts are inside the shade, place shade bracket (K) back onto tube (L). Slide
wing nut (J) back down the cord and thread it onto tube (L) to secure the position of
bracket (K). Carefully lift the fi xture by the cord as shown in Fig. 3.
8. Slide hood (I) back down the electrical cord until it rests on glass shade (O).
9. Remove mounting plate (B) from canopy (D) by un-threading screws (E). Set screws
(E) aside.
10. Affi x mounting plate (B) to ceiling outlet box with mounting screws (C), provided.
(I)
11. Measure desired drop for fi xture to hang.
12. From inside canopy (D), loosen screw (G) on wire clamp (F). Guide cord through
hole in canopy (D) and slide it to the position of desired drop. Pass cord through
clamp (F) and tighten screw (G) as shown in Illustration (A). If necessary, cut
excess cord, leaving 5 or 6 inches of length for wire connections.
13. Lift canopy (D) to ceiling outlet box; make proper electrical connections noted in
steps 14 - 16. A LICENSED ELECTRICIAN IS RECOMMENDED.
14. Attach ground wire from fi xture (green or copper in color) to ground wire from
outlet box. Fasten wires together with wire nut (F) and tightly wrap connection with
electrical tape.
15. Attach hot wire from fi xture (black in color or smooth side of wire) to hot wire from
outlet box. Fasten wires together with wire nut (F) and tightly wrap connection with
electrical tape.
(O)
16. Attach neutral wire from fi xture (white in color or
ribbed side of wire) to neutral wire from outlet box.
Fasten wires together with wire nut (F) and tightly
wrap connection with electrical tape. Gently push
wire connections back into the ceiling outlet box.
17. Place canopy (D) fl ush against ceiling. Use canopy
screws (E) to attach the canopy to the mounting
plate.
18. Reconnect main electrical supply at the fuse box/
circuit breaker and test the fi xture.
** To clean, use soft cloth only. Do not use any
chemical or abrasive cleaners. **
Fig. 1 Fig. 2 Fig. 3 Fig. 4
779
