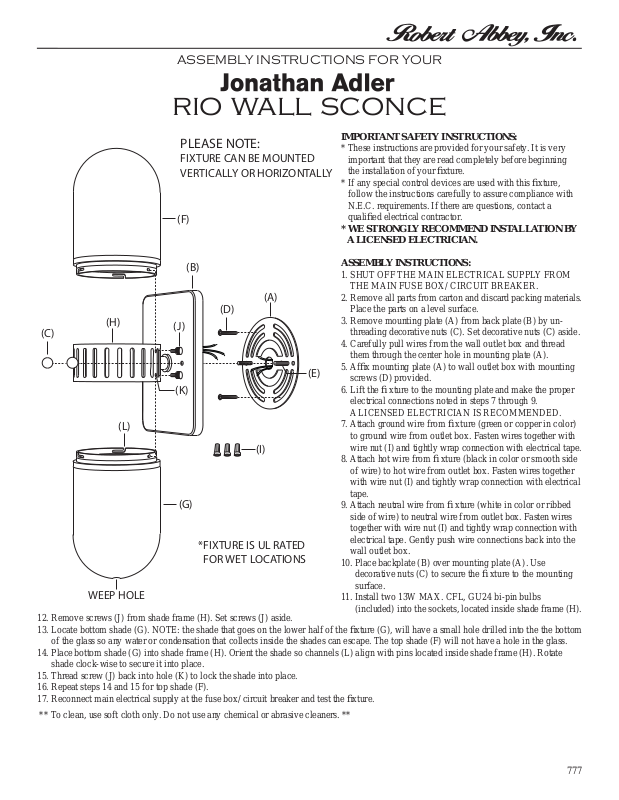

ASSEMBLY INSTRUCTIONS FOR YOUR
rio wall sconce
PLEASE NOTE:
FIXTURE CAN BE MOUNTED
VERTICALLY OR HORIZONTALLY
(F)
(B)
(A)
(D)
(H)
(C)
(L)
WEEP HOLE
12. Remove screws (J) from shade frame (H). Set screws (J) aside.
13. Locate bottom shade (G). NOTE: the shade that goes on the lower half of the fi xture (G), will have a small hole drilled into the the bottom
of the glass so any water or condensation that collects inside the shades can escape. The top shade (F) will not have a hole in the glass.
14. Place bottom shade (G) into shade frame (H). Orient the shade so channels (L) align with pins located inside shade frame (H). Rotate
shade clock-wise to secure it into place.
15. Thread screw (J) back into hole (K) to lock the shade into place.
16. Repeat steps 14 and 15 for top shade (F).
17. Reconnect main electrical supply at the fuse box/ circuit breaker and test the fi xture.
** To clean, use soft cloth only. Do not use any chemical or abrasive cleaners. **
(J)
(E)
(K)
(I)
(G)
*FIXTURE IS UL RATED
FOR WET LOCATIONS
IMPORTANT SAFETY INSTRUCTIONS:
* These instructions are provided for your safety. It is very
important that they are read completely before beginning
the installation of your fi xture.
* If any special control devices are used with this fi xture,
follow the instructions carefully to assure compliance with
N.E.C. requirements. If there are questions, contact a
qualifi ed electrical contractor.
* WE STRONGLY RECOMMEND INSTALLATION BY
A LICENSED ELECTRICIAN.
ASSEMBLY INSTRUCTIONS:
1. SHUT OFF THE MAIN ELECTRICAL SUPPLY FROM
THE MAIN FUSE BOX/ CIRCUIT BREAKER.
2. Remove all parts from carton and discard packing materials.
Place the parts on a level surface.
3. Remove mounting plate (A) from back plate (B) by un threading decorative nuts (C). Set decorative nuts (C) aside.
4. Carefully pull wires from the wall outlet box and thread
them through the center hole in mounting plate (A).
5. Affi x mounting plate (A) to wall outlet box with mounting
screws (D) provided.
6. Lift the fi xture to the mounting plate and make the proper
electrical connections noted in steps 7 through 9.
A LICENSED ELECTRICIAN IS RECOMMENDED.
7. Attach ground wire from fi xture (green or copper in color)
to ground wire from outlet box. Fasten wires together with
wire nut (I) and tightly wrap connection with electrical tape.
8. Attach hot wire from fi xture (black in color or smooth side
of wire) to hot wire from outlet box. Fasten wires together
with wire nut (I) and tightly wrap connection with electrical
tape.
9. Attach neutral wire from fi xture (white in color or ribbed
side of wire) to neutral wire from outlet box. Fasten wires
together with wire nut (I) and tightly wrap connection with
electrical tape. Gently push wire connections back into the
wall outlet box.
10. Place backplate (B) over mounting plate (A). Use
decorative nuts (C) to secure the fi xture to the mounting
surface.
11. Install two 13W MAX. CFL, GU24 bi-pin bulbs
(included) into the sockets, located inside shade frame (H).
777
