(L)
(B)
(A)
(D)
(C)
(F)
(E)
(G)
(I)
(J)
(K)
(H)

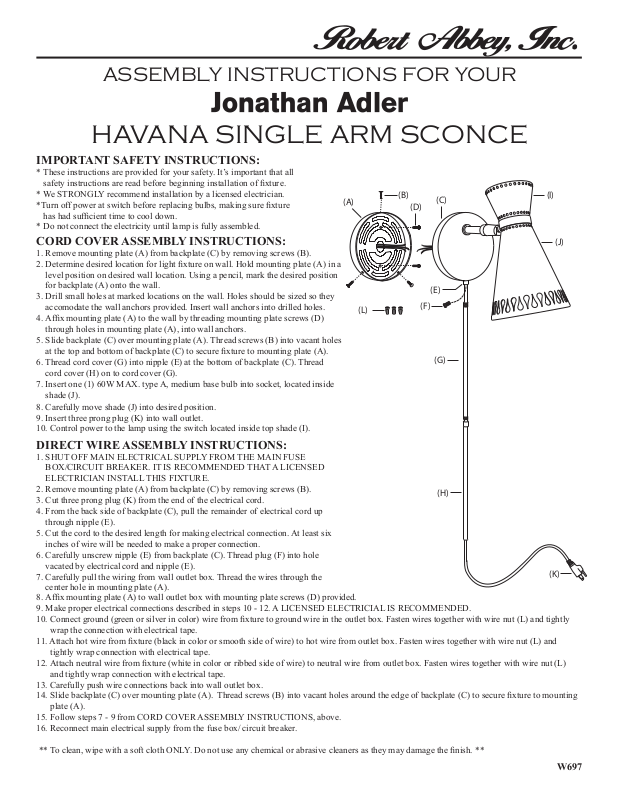

ASSEMBLY INSTRUCTIONS FOR YOUR
HAVANA SINGLE ARM SCONCE
IMPORTANT SAFETY INSTRUCTIONS:
* These instructions are provided for your safety. It’s important that all
safety instructions are read before beginning installation of xture.
* We STRONGLY recommend installation by a licensed electrician.
*Turn off power at switch before replacing bulbs, making sure xture
has had sufcient time to cool down.
* Do not connect the electricity until lamp is fully assembled.
CORD COVER ASSEMBLY INSTRUCTIONS:
1. Remove mounting plate (A) from backplate (C) by removing screws (B).
2. Determine desired location for light xture on wall. Hold mounting plate (A) in a
level position on desired wall location. Using a pencil, mark the desired position
for backplate (A) onto the wall.
3. Drill small holes at marked locations on the wall. Holes should be sized so they
accomodate the wall anchors provided. Insert wall anchors into drilled holes.
4. Afx mounting plate (A) to the wall by threading mounting plate screws (D)
through holes in mounting plate (A), into wall anchors.
5. Slide backplate (C) over mounting plate (A). Thread screws (B) into vacant holes
at the top and bottom of backplate (C) to secure xture to mounting plate (A).
6. Thread cord cover (G) into nipple (E) at the bottom of backplate (C). Thread
cord cover (H) on to cord cover (G).
7. Insert one (1) 60W MAX. type A, medium base bulb into socket, located inside
shade (J).
8. Carefully move shade (J) into desired position.
9. Insert three prong plug (K) into wall outlet.
10. Control power to the lamp using the switch located inside top shade (I).
DIRECT WIRE ASSEMBLY INSTRUCTIONS:
1. SHUT OFF MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE
BOX/CIRCUIT BREAKER. IT IS RECOMMENDED THAT A LICENSED
ELECTRICIAN INSTALL THIS FIXTURE.
2. Remove mounting plate (A) from backplate (C) by removing screws (B).
3. Cut three prong plug (K) from the end of the electrical cord.
4. From the back side of backplate (C), pull the remainder of electrical cord up
through nipple (E).
5. Cut the cord to the desired length for making electrical connection. At least six
inches of wire will be needed to make a proper connection.
6. Carefully unscrew nipple (E) from backplate (C). Thread plug (F) into hole
vacated by electrical cord and nipple (E).
7. Carefully pull the wiring from wall outlet box. Thread the wires through the
center hole in mounting plate (A).
8. Afx mounting plate (A) to wall outlet box with mounting plate screws (D) provided.
9. Make proper electrical connections described in steps 10 - 12. A LICENSED ELECTRICIAL IS RECOMMENDED.
10. Connect ground (green or silver in color) wire from xture to ground wire in the outlet box. Fasten wires together with wire nut (L) and tightly
wrap the connection with electrical tape.
11. Attach hot wire from xture (black in color or smooth side of wire) to hot wire from outlet box. Fasten wires together with wire nut (L) and
tightly wrap connection with electrical tape.
12. Attach neutral wire from xture (white in color or ribbed side of wire) to neutral wire from outlet box. Fasten wires together with wire nut (L)
and tightly wrap connection with electrical tape.
13. Carefully push wire connections back into wall outlet box.
14. Slide backplate (C) over mounting plate (A). Thread screws (B) into vacant holes around the edge of backplate (C) to secure xture to mounting
plate (A).
15. Follow steps 7 - 9 from CORD COVER ASSEMBLY INSTRUCTIONS, above.
16. Reconnect main electrical supply from the fuse box/ circuit breaker.
** To clean, wipe with a soft cloth ONLY. Do not use any chemical or abrasive cleaners as they may damage the nish. **
W697
