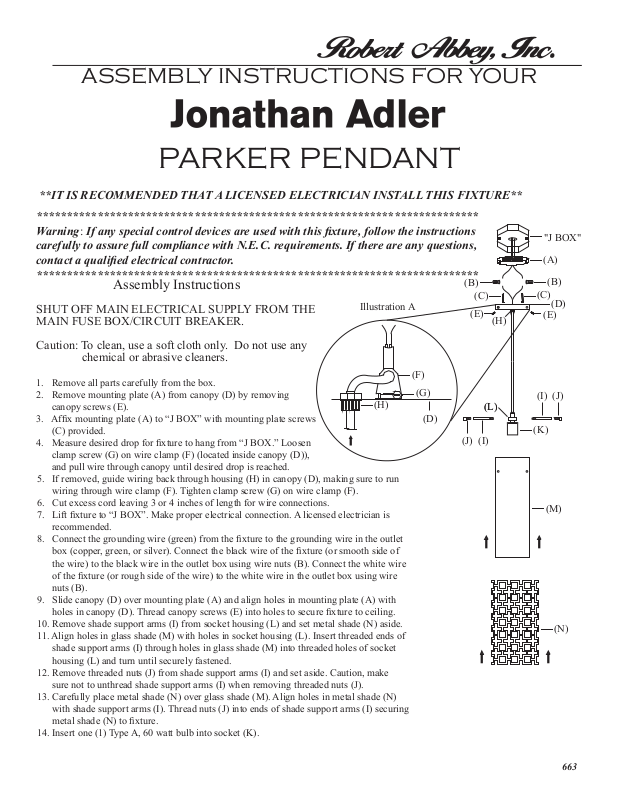

Jonathan Adler RAB2498 Installation & Assembly

ASSEMBLY INSTRUCTIONS FOR YOUR

"J BOX"

(A)

(C)

(D)

(D)

(C)

(E)

(H)

(B)

(K)

(M)

(F)

(H)

(G)

(N)

(B)

(E)

(J)

(J)

(L)(L)

(I)

(I)

Illustration A

PARKER PENDANT

**IT IS RECOMMENDED THAT A LICENSED ELECTRICIAN INSTALL THIS FIXTURE**

*************************************************************************
Warning: If any special control devices are used with this xture, follow the instructions
carefully to assure full compliance with N.E.C. requirements. If there are any questions,
contact a qualied electrical contractor.
*************************************************************************

SHUT OFF MAIN ELECTRICAL SUPPLY FROM THE
MAIN FUSE BOX/CIRCUIT BREAKER.

Caution: To clean, use a soft cloth only. Do not use any
chemical or abrasive cleaners.

1. Remove all parts carefully from the box.

2. Remove mounting plate (A) from canopy (D) by removing
canopy screws (E).

3. Afx mounting plate (A) to “J BOX” with mounting plate screws
(C) provided.

4. Measure desired drop for xture to hang from “J BOX.” Loosen
clamp screw (G) on wire clamp (F) (located inside canopy (D)),
and pull wire through canopy until desired drop is reached.

5. If removed, guide wiring back through housing (H) in canopy (D), making sure to run
wiring through wire clamp (F). Tighten clamp screw (G) on wire clamp (F).

6. Cut excess cord leaving 3 or 4 inches of length for wire connections.

7. Lift xture to “J BOX”. Make proper electrical connection. A licensed electrician is
recommended.

8. Connect the grounding wire (green) from the xture to the grounding wire in the outlet
box (copper, green, or silver). Connect the black wire of the xture (or smooth side of
the wire) to the black wire in the outlet box using wire nuts (B). Connect the white wire
of the xture (or rough side of the wire) to the white wire in the outlet box using wire
nuts (B).

9. Slide canopy (D) over mounting plate (A) and align holes in mounting plate (A) with
holes in canopy (D). Thread canopy screws (E) into holes to secure xture to ceiling.

10. Remove shade support arms (I) from socket housing (L) and set metal shade (N) aside.

11. Align holes in glass shade (M) with holes in socket housing (L). Insert threaded ends of
shade support arms (I) through holes in glass shade (M) into threaded holes of socket
housing (L) and turn until securely fastened.

12. Remove threaded nuts (J) from shade support arms (I) and set aside. Caution, make
sure not to unthread shade support arms (I) when removing threaded nuts (J).

13. Carefully place metal shade (N) over glass shade (M). Align holes in metal shade (N)
with shade support arms (I). Thread nuts (J) into ends of shade support arms (I) securing
metal shade (N) to xture.

14. Insert one (1) Type A, 60 watt bulb into socket (K).

Assembly Instructions

663
