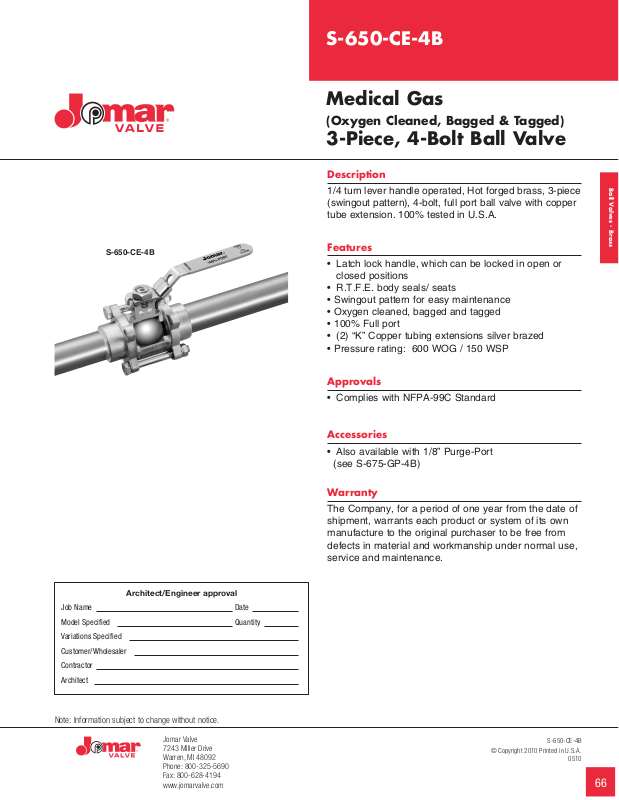

Jomar S-650-CE-4B User Manual
S-650-CE-4B
Medical Gas
(Oxygen Cleaned, Bagged & Tagged)
3-Piece, 4-Bolt Ball Valve
Description
1/4 turn lever handle operated, Hot forged brass, 3-piece
(swingout pattern), 4-bolt, full port ball valve with copper
tube extension. 100% tested in U.S.A.
Ball Valves - Brass
S-650-CE-4B
Features
• Latch lock handle, which can be locked in open or
closed positions
• R.T.F.E. body seals/ seats
• Swingout pattern for easy maintenance
• Oxygen cleaned, bagged and tagged
• 100% Full port
• (2) “K” Copper tubing extensions silver brazed
• Pressure rating: 600 WOG / 150 WSP
Approvals
• Complies with NFPA-99C Standard
Accessories
• Also available with 1/8” Purge-Port
(see S-675-GP-4B)
Warranty
The Company, for a period of one year from the date of
shipment, warrants each product or system of its own
manufacture to the original purchaser to be free from
defects in material and workmanship under normal use,
service and maintenance.
Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
Note: Information subject to change without notice.
Jomar Valve
7243 Miller Drive
Warren, MI 48092
Phone: 800-325-5690
Fax: 800-628-4194
www.jomarvalve.com
© Copyright 2010 Printed in U.S.A.
S-650-CE-4B
0510
66
S-650-CE-4B
Medical Gas
(Oxygen Cleaned, Bagged & Tagged)
3-Piece, 4-Bolt Ball Valve
Description
1/4 turn lever handle operated, Hot forged brass, 3-piece
(swingout pattern), 4-bolt, full port ball valve with copper
tube extension. 100% tested in U.S.A.
.
Ball Valves - Brass
Dimensions in Inches
Computer No. Size D L CxC H W O
500-803 1/2” .59 2.64 1.81 2.87 17.50
500-804 3/4” .79 2.95 2.44 4.67 17.50
500-805 1” .99 3.46 2.56 4.67 19.00
500-806 1-1/4” 1.26 3.97 3.11 5.86 20.00
500-807 1-1/2” 1.50 4.45 3.27 5.86 23.50
500-808 2” 1.97 5.55 3.66 7.87 26.00
Material Specification
No. Part Name Materials ASTM Spec
1 Body Forged Brass B 124 C37000
2 End Plug (2) Forged Brass B 124 C37000
3 Ball Solid Brass/C.P. B16C3600
4 Seat (2) 15% Fiberglass RTFE Dupont
5 Reversible Handle w/Slip Loc
6 Stem Brass B16C3600
7 Stem Gland Brass B16C3600
8 Stem Seal 15% Fiberglass RTFE Dupont
9 Body Seal (2) 15% Fiberglass RTFE Dupont
10 Stem Washer 15% Fiberglass RTFE Dupont
11 Stem O-Ring (2) Viton* D2000
11 Stem O-ring (2 optional) Nitrile D2000
12 Stem Nut Steel Nickel Plated AZ9-1015
13 Body Bolt (4) Steel Nickel Plated AZ9-1015
14 Spring Washer (4) Steel Nickel Plated AZ9-1015
15 Body Nut (4) Steel Nickel Plated AZ9-1015
16 Grip Plastic Vinyl
17 Copper Extension Typek
18 End Plug Plastic
TM
Steel Nickel Plated AZ9-1015
Pressure Rating
600 WOG
150 WSP
Note: Information subject to change without notice.
67
Jomar Valve
7243 Miller Drive
Warren, MI 48092
Phone: 800-325-5690
Fax: 800-628-4194
www.jomarvalve.com
© Copyright 2010 Printed in U.S.A.
