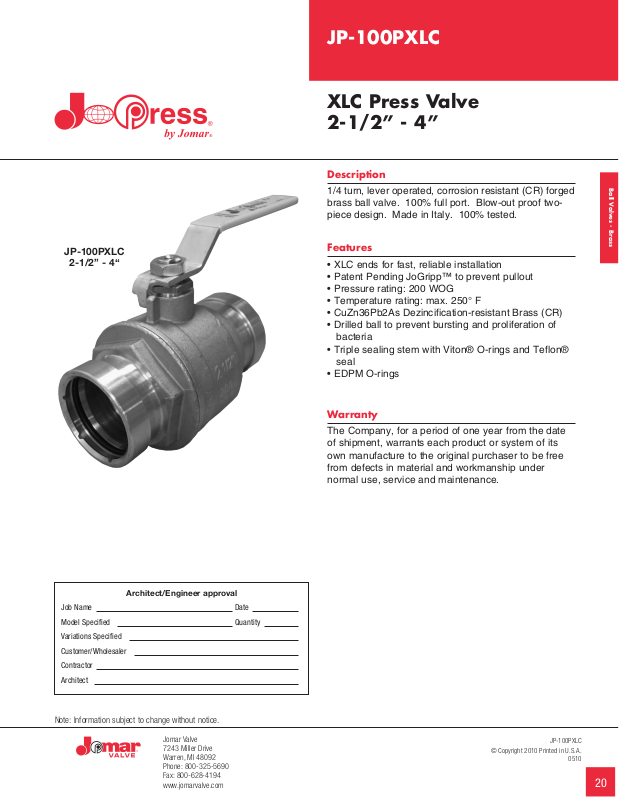

Jomar JP-100PXLC User Manual
JP-100PXLC
XLC Press Valve
2-1/2” - 4”
Description
1/4 turn, lever operated, corrosion resistant (CR) forged
brass ball valve. 100% full port. Blow-out proof twopiece design. Made in Italy. 100% tested.
Ball Valves - Brass
JP-100PXLC
2-1/2” - 4“
Features
• XLC ends for fast, reliable installation
• Patent Pending JoGripp™ to prevent pullout
• Pressure rating: 200 WOG
• Temperature rating: max. 250° F
• CuZn36Pb2As Dezincification-resistant Brass (CR)
• Drilled ball to prevent bursting and proliferation of
bacteria
• Triple sealing stem with Viton® O-rings and Teflon®
seal
• EDPM O-rings
Warranty
The Company, for a period of one year from the date
of shipment, warrants each product or system of its
own manufacture to the original purchaser to be free
from defects in material and workmanship under
normal use, service and maintenance.
Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
Note: Information subject to change without notice.
Jomar Valve
7243 Miller Drive
Warren, MI 48092
Phone: 800-325-5690
Fax: 800-628-4194
www.jomarvalve.com
© Copyright 2010 Printed in U.S.A.
JP-100PXLC
0510
20
JP-100PXLC
5
10
8
7
2
4
3
4
1
11
C
A
D
B
9
6
11
XLC Press Valve
2-1/2” - 4”
Description
1/4 turn, lever operated, corrosion resistant (CR) forged
brass ball valve. 100% full port. Blow-out proof twopiece design. Made in Italy. 100% tested.
Ball Valves - Brass
Dimensions in Inches
Computer Valve
No. Size A B C D
100-209XLC 2-1/2” 7.13 4.72 2.50 1.75
100-210XLC 3” 8.49 5.31 3.00 1.92
100-211XLC 4” 10.79 5.90 4.00 2.22
Material Specification
No. Part Name Materials
1 Body Corrosion Resistant Forged Brass
2 End Piece Corrosion Resistant Forged Brass
3 Special Solid "T" Ball Diamond Polished TEA Coated Brass
4 Seat (2) Hostaflon®-TFM 1600
5 Stem Corrosion Resistant Forged Brass
6 Stem O-ring (2) Viton®
7 Stem Packing Hostaflon®-TFM 1600
8 Packing Nut Corrosion Resistant Forged Brass
9 Lever Handle Dacromet Coated Steel
10 Handle Dacromet Coated Steel
11 O-ring (2) EPDM
Pressure Rating
200 WOG
Patent Pending JoGripp™
Note: Information subject to change without notice.
21
Jomar Valve
7243 Miller Drive
Warren, MI 48092
Phone: 800-325-5690
Fax: 800-628-4194
www.jomarvalve.com
© Copyright 2010 Printed in U.S.A.
