GB
Welcome to Joie
™
Congratulations on becoming part of the Joie family! We are so excited to be part of your journey
with your little one. While traveling with the Joie LITETRAX™4, you are using a high quality, fully
certified stroller, approved to European safety standards EN 1888:2012. This product is suitable for
use with children weighing under 15kg. Please carefully read this manual and follow each step to
ensure a comfortable ride and best protection for your child.
IMPORTANT - Keep these instructions for future reference.
Visit us at joiebaby.com to download manuals and see more exciting Joie products!
Contents
Figures 1-8
WARNING 11
Stroller Assembly
12
Open Stroller 12
Assemble Front Wheel 12
Assemble Rear Wheels 12
Assemble Armbar 13
Stroller Operation
13
Adjust Backrest 13
Use Buckle 13
Use Shoulder & Waist Harnesses 13
Adjust Calf Support 14
Use Front Swivel Lock 14
Use Brake 14
Use Hood 14
Fold Stroller 14
Use Accessories 15
Care and Maintenance 16
Emergency
In case of emergency or accident, it is most important to have your child taken care of with first aid and
medical treatment immediately.
Product Information
Read all the instructions in this manual before using this product. If you have any further questions, please
consult the retailer. Some features may vary depending on model.
Product Litetrax™4 Stroller
Suitable for Child weighing under 15kg (birth - 36 months)
Materials Plastics, metal, fabrics
Patent No. Patents pending
Made in China
Brand Name Joie
Website www.joiebaby.com
Manufacturer Joie Childrens Products (UK) Limited
1 Stroller Frame
2 Front Wheel
3 Rear Wheels
4 Hood
5 Seat Pad
6 Armbar
7 Calf Support
8 Front Wheel
9 Swivel Lock
10 Storage Basket
11 Shoulder Harness
12 Handle
13 Window
14 Rear Wheel
15 Brake Lever
16 Storage Mount
17 Storage Latch
Parts List
Make sure all parts are available before assembly. If any part is missing, please contact local retailer.
No tools are required for assembly.
16
17
14
12
13
15
6
4
5
7
8
9
10
11
1
2
3
Accessories
(May not be included)
1 Rain cover (on certain models)
2 Footmuff (on certain models)
3 Adapter (on certain models)
4 Armbar Cover (on certain models)
5 Parent Tray (on certain models)
1
2
3
4
5
Accessories may be sold separately or
may not be available depending on region.
11
12
WARNING
! WARNING Always use the crotch combination with the waist belt. It is
suggested that the shoulder harnesses be used as well.
! WARNING Ensure that all the locking devices are engaged before use.
! WARNING Do not let your child play with this product.
! WARNING Check that the pram body or seat unit attachment devices
are correctly engaged before use.
! Adult assembly required.
! Use the stroller with a child weighing less than 15kg. It will cause
damage to the stroller with an unfitted child.
! To prevent a hazardous, unstable condition, do not place more than
4.5kg in the storage basket.
! The maximum recommended weight of the parent tray is 3lbs (1.36kg).
! Never leave child unattended. Always keep child in view while in stroller.
! Use the stroller with only one child at a time. Never place purses,
shopping bags, parcels or accessory items on the handle or hood.
! Overloading, folding incorrectly, or using component parents from other
manufacturers may cause the stroller to be damaged, broken or unsafe.
Please read the instruction manual carefully.
! Never use it along with component parts from other manufacturers.
! Please read all the instructions in the manual before using the product.
Please save instruction manual for future use. Failure to follow these
warnings and instructions may result in serious injury or death.
! Safety belts and restraint systems must be used correctly.
! To avoid serious injury from falling or sliding out, always use seat belt.
! Make sure your child’s body is clear from the moving parts when
adjusting the stroller.
! Child may slip into leg openings and be strangled if the harness is not
used.
! Never use stroller on stairs or escalators.
! Keep away from high temperature objects, liquids, and electronics.
! Never allow your child to stand on the stroller or sit in the stroller with
head toward front of stroller.
! Never place the stroller on roads, slopes or dangerous areas.
! Do make sure all mechanisms are fixed before using the stroller.
! To avoid strangulation, DO NOT place items with a string around your
child’s neck, suspend strings from this product, or attach strings to
toys.
! To prevent tipping DO NOT put anything on the handle.
! DO NOT lift stroller while child is in stroller.
! DO NOT use storage basket as a child carrier.
! To prevent tipping, never let child climb the stroller. Always lift the child
in and out of the stroller.
! To avoid finger entrapment, use care when folding and unfolding the
stroller.
! To avoid injury ensure that your child is kept away when unfolding and
folding this product.
! To ensure your child’s safety, please make sure all parts are assembled
and fastened properly before using the stroller.
! To avoid strangulation, do make sure your child is clear from the hood.
! Always engage the brakes when parking the stroller.
! Discontinue using stroller if it is damaged or broken.
! Stroller to be used only at walking speed. This product is not intended
for use while jogging.
! Do not place any item that may do harm to the baby and stroller in the
parent tray.
! To avoid suffocation, remove plastic bag and packaging materials
before using this product. The plastic bag and packaging materials
should then be kept away from babies and children.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of
the most reclined position for new born babies.
! The parking device shall be engaged when placing and removing
children.
! For car seats used in conjunction with a chassis, this vehicle does not
replace a cot or a bed. Should your child need to sleep, then it should
be placed in a suitable pram boby, cot or bed.
Stroller Assembly
Please read all the instructions in this manual before assembling and using this product.
Open Stroller

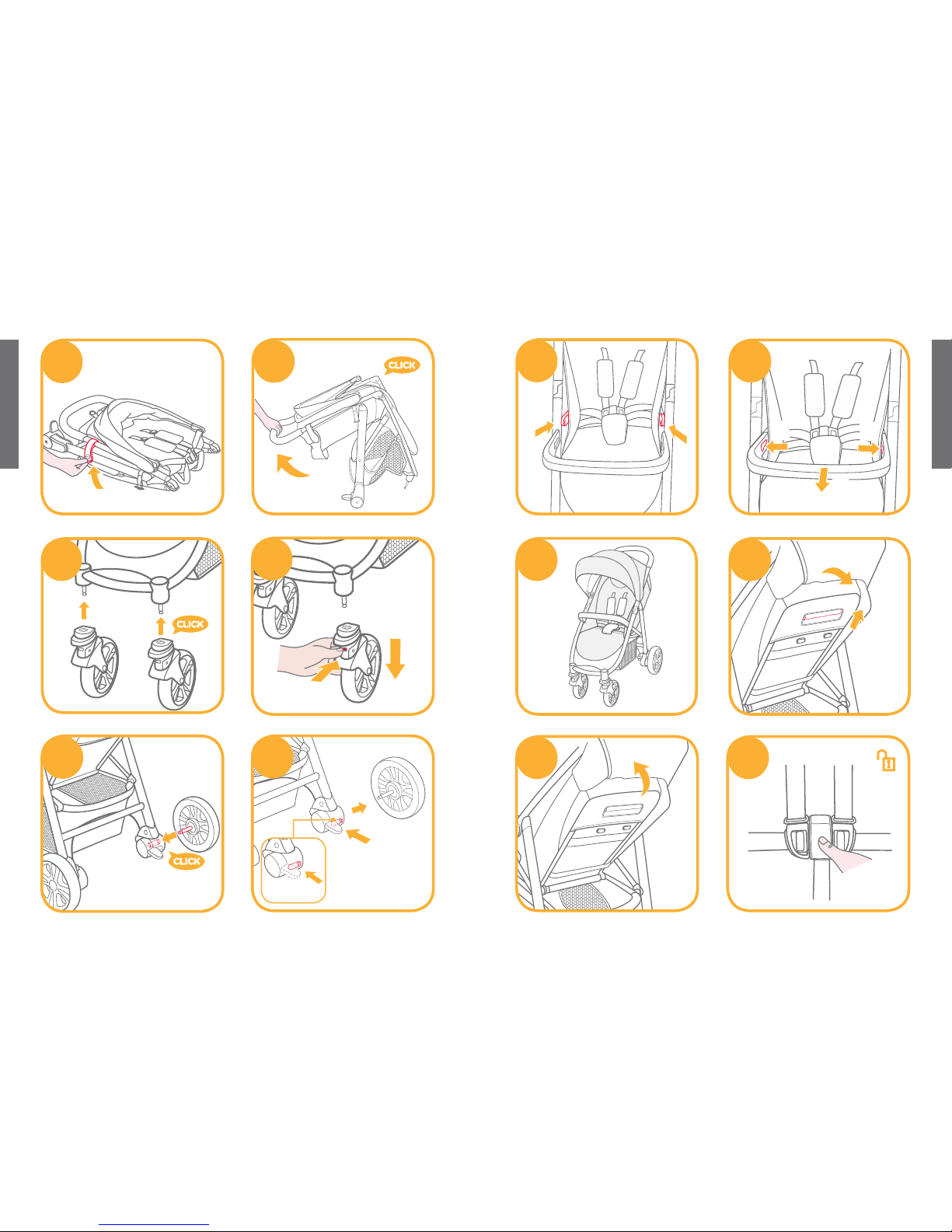

see images
1
-
2
Separate storage latch from storage mount 1, and then lift the handle upwards 2, a click sound means the
stroller is open completely.
! Check that the stroller is completely latched before continuing to use.
Assemble Front Wheel
see images
3
-
4
Assemble Rear Wheels
13
14
see images
5
-
6
Assemble Armbar
see images
7
-
8
The completely assembled stroller is shown as
9
Stroller Operation
Adjust Backrest
see images
10
-
11
There are 4 recline angles for the backrest.
Recline Backrest
To recline the backrest, squeeze the recline handle on the back of the seat, pull down on the backrest.
10
Raise Backrest
To raise the backrest, push up.
11
! Make sure the recline is set properly for use.
Use Buckle
see images
12
-
13
Release Buckle
Press the center button to release the buckle.
12
Lock Buckle
Match the waist belt buckle with the shoulder buckle
13
- 1, and click into the center buckle.
13
- 2
A “click” sound means the buckle is locked completely.
13
- 3
! To avoid serious injury from falling or sliding out, always secure your child with harness.
! Make sure your child is snugly secured. The space between the child and the shoulder harness is about the
thickness of one hand.
! Do not cross the shoulder belts. This will cause pressure on a child’s neck.
Use Shoulder & Waist Harnesses
see images
14
-
17
! In order to protect your child from falling out, after your child is placed into the seat, check whether the
shoulder and waist harnesses are at proper height and length.
14
- 1 Shoulder harness anchor A
14
- 2 Shoulder harness anchor B
14
- 3 Slide adjuster
For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder
harness anchor B and the lowest shoulder slots.
To adjust the position of the shoulder harness anchor, tur n the anchor to be level with the side facing forward.
Thread it through the shoulder harness slot from back to front.
15
Rethread it through the slot that is closest to
child's shoulder height.
16
Use slide adjuster to change the harness length.
17
- 1
Press the button
17
- 2, while pulling the waist harness to proper length.
17
- 3
Adjust Calf Support
see images
18
The calf support has 2 positions.
To raise the calf support, push it upwards. A "click" sound means the calf is locked completely.
To lower calf support, press the adjustment buttons on both sides of the calf support
18
- 1, and rotate the calf
support downwards.
18
- 2
Use Front Swivel Lock
see images
19
Push up the front swivel locks to maintain the moving direction.
19
Tip
It is recommended to use swivel locks on uneven surfaces.
Use Brake
see images
20
-
21
To lock wheels, step the brake lever downwards.
20
To release wheels, just lift the brake lever upwards.
21
Tip
Always set the parking brake when stroller is not moving.
Use Hood
see images
22
The hood can be opened or folded, pull it toward front or back.
The hood can be opened completely to protect your child from the sun uttermostly, just unzip the hook
22
,
and then pull the hood toward front.
There is a window on the hood, through which you can view your baby.
! Total maximum weight of hood pocket MUST not exceed 0.5kg.
Fold Stroller
see images
23
-
25
! Please fold the hood before folding the stroller.
1. Pull the folding webbing upward, the frame will automatically fold backward.
23
- 1
2. The storage latch will automatically hook onto the storage mount, then the stroller is folded and locked
completely.
24
3. The stroller can stand when folded.
25
15
16
Use Accessories
Accessories may be sold separately or may not be available depending on region.
Use Rain Cover
see images
27
To assemble the rain cover, place it over the stroller, and then attach the 8 pairs of hook and loop fasteners on
the rain cover.
27
! Before using the rain cover, please make sure the backrest has been adjusted to the lowest position and the
infant car seat has been fastened.
! When using the rain cover, please always check its ventilation.
! When not in use, please check that the rain cover has been cleaned and dried before folding.
! Do not fold the stroller after assembling the rain cover.
! Do not place your child into the stroller assembled with rain cover during hot weather.
Use Footmuff
see images
28
-
30
Use with Car Seat
see images 31 -
38
Use this car seat adapter only with the Litetrax™4 Stroller and approved Joie Gemm, Nuna Pipa car seats.
! If you have any problems about using the car seat, please refer to their own instruction manuals.
! Please don’t fold stroller when attaching the car seat.
Use Parent Tray
see images
39
-
41
! Do not place any item that may do harm to the baby and stroller in the parent tray.
Care and Maintenance
! Removable seat pad may be washed in cold water and drip-dried. No bleach.
! To clean stroller frame, use only household soap and warm water. No bleach or detergent.
! From time to time, check your stroller for loose screws, worn parts,torn material or stitching. Replace or repair
the parts as needed.
! Excessive exposure to sun or heat could cause fading or warping of parts.
! If stroller becomes wet, open hood and allow to dry thoroughly before storing.
! If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get
the oil into the axle and wheel assembly.
26
! When using your stroller at the beach, completely clean your stroller after use to remove sand and salt from
mechanisms and wheel assemblies.
Loading...
