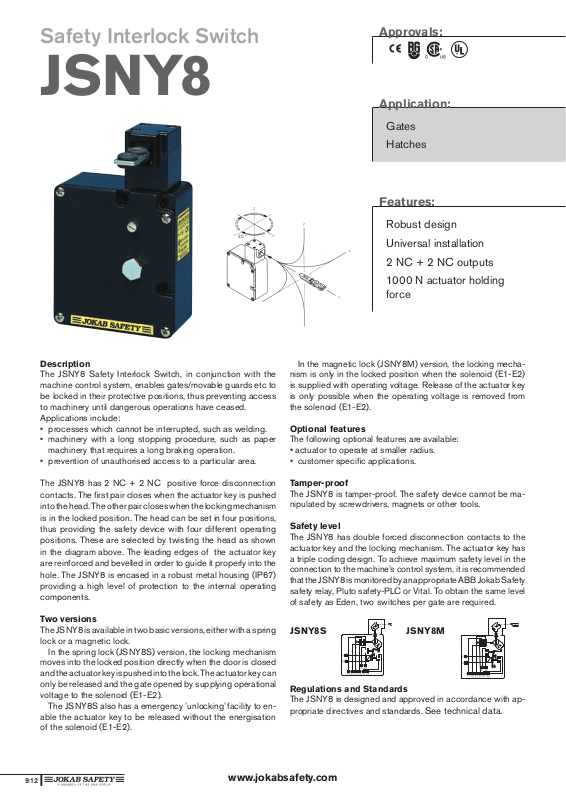

Safety Interlock Switch
JSNY8
Approvals:
Application:
Gates
Hatches
Features:
Robust design
Universal installation
2 NC + 2 NC outputs
1000 N actuator holding
force
Description
The JSNY8 Safety Interlock Switch, in conjunction with the
machine control system, enables gates/movable guards etc to
be locked in their protective positions, thus preventing access
to machinery until dangerous operations have ceased.
Applications include:
• processeswhichcannotbeinterrupted,suchaswelding.
• machinerywitha long stopping procedure,suchaspaper
machinery that requires a long braking operation.
• preventionofunauthorisedaccesstoaparticulararea.
The JSNY8 has 2 NC + 2 NC positive force disconnection
contacts. The first pair closes when the actuator key is pushed
into the head. The other pair closes when the locking mechanism
is in the locked position. The head can be set in four positions,
thus providing the safety device with four different operating
positions. These are selected by twisting the head as shown
in the diagram above. The leading edges of the actuator key
are reinforced and bevelled in order to guide it properly into the
hole. The JSNY8 is encased in a robust metal housing (IP67)
providing a high level of protection to the internal operating
components.
Two versions
The JSNY8 is available in two basic versions, either with a spring
lock or a magnetic lock.
In the spring lock (JSNY8S) version, the locking mechanism
moves into the locked position directly when the door is closed
and the actuator key is pushed into the lock. The actuator key can
only be released and the gate opened by supplying operational
voltage to the solenoid (E1-E2).
The JSNY8S also has a emergency ’unlocking’ facility to enable the actuator key to be released without the energisation
of the solenoid (E1-E2).
In the magnetic lock (JSNY8M) version, the locking mechanism is only in the locked position when the solenoid (E1-E2)
is supplied with operating voltage. Release of the actuator key
is only possible when the operating voltage is removed from
the solenoid (E1-E2).
Optional features
The following optional features are available:
•actuatortooperateatsmallerradius.
• customerspecicapplications.
Tamper-proof
The JSNY8 is tamper-proof. The safety device cannot be manipulated by screwdrivers, magnets or other tools.
Safety level
The JSNY8 has double forced disconnection contacts to the
actuator key and the locking mechanism. The actuator key has
a triple coding design. To achieve maximum safety level in the
connection to the machine’s control system, it is recommended
that the JSNY8 is monitored by an appropriate ABB Jokab Safety
safety relay, Pluto safety-PLC or Vital. To obtain the same level
of safety as Eden, two switches per gate are required.
JSNY8S JSNY8M
Regulations and Standards
The JSNY8 is designed and approved in accordance with appropriate directives and standards.
See technical data.
Technical data – JSNY8
Manufacturer ABB AB/Jokab Safety, Sweden
Article number/Ordering
data:
JSNY8M 24DC
JSNY8S 24DC
Colour Black
Enclosure Metal housing
Actuator key Steel & plastic (PA6)
Min. operating radius for
hatch
Actuator holding force 1000 N
Working temperature -30°C to +60°C
Contacts
actuator key inserted
locking mechanism, locked
position
Mechanical service life 1 million switch operations
Installation fixings 3 x M5
Cable entry 2x M20 x 1.5
Weight 550 g
Enclosure class IP67
Operating voltage 24V DC, 230 V AC
Rated insulation voltage 250V
2TLJ020030R0000
2TLJ020030R0100
400 mm (smaller radius on
request)
2 NC
2 NC
Rated operating current 10A
Utilisation category AC 12 250V/10A
AC 15 230V/4A
Short-circuit protection Fuse 10A slow-acting, 16A
quick-acting
Power consumption 5.2 W
B
10d
Conformity 2006/42/EG
JSNY 8M 24 VDC: 2,00×10
JSNY 8M 230 VAC: 2,00×10
JSNY 8S 24 VDC: 2,00×10
JSNY 8S 230 VAC: 2,00×10
EN ISO 12100 1/2, EN 954-1,
EN 60204-1, EN ISO 13849-1,
EN 1088, GS-ET 19,
EN 60947-5-1
50
ø5,5
5
20
81
1
2
6
6
6
6
3
4
5
30
6
Note: Do not use switch as end
stop!
Contact description JSNY8S/M - JSNY8S/M
Contact
travel
JSNY8/9N2
Rmin: 150 mm
Flexible actuator.
Actuator withdrawn
7
8
9
10
11
JSNY8S
Key actuator inserted
Normally locked
(E1-E2 unpowered)
JSNY8M
Key actuator inserted
Normally unlocked
(E1-E2 unpowered)
Contact opened
Contact closed
Actuator inserted
F
= 20 N
min
12
13
14
