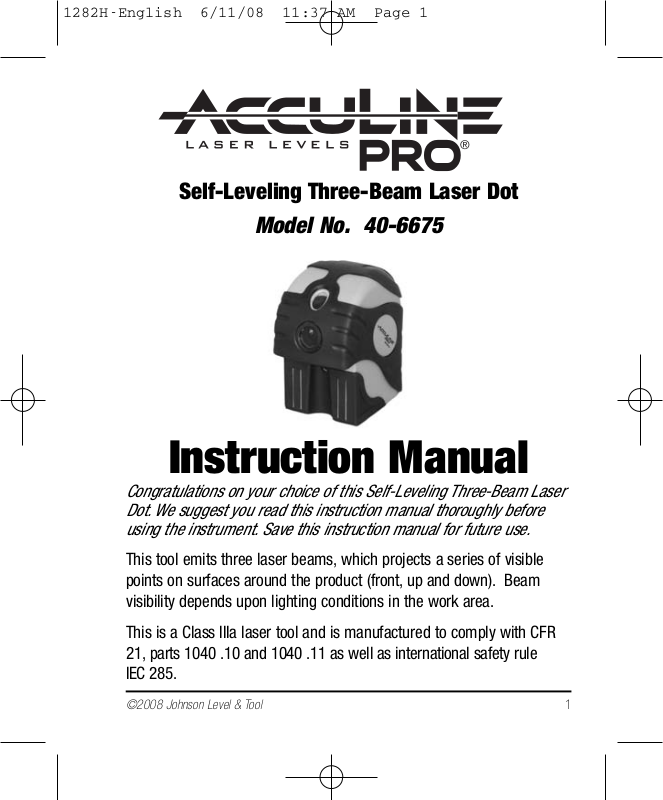

Self-Leveling Three-Beam Laser Dot

Model No. 40-6675

Instruction Manual

Congratulations on your choice of this Self-Leveling Three-Beam Laser Dot. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.

This tool emits three laser beams, which projects a series of visible points on surfaces around the product (front, up and down). Beam visibility depends upon lighting conditions in the work area.

This is a Class IIIa laser tool and is manufactured to comply with CFR 21, parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285.

1282H-English 6/11/08 11:37 AM Page 2

Table of Contents

1. Kit Contents

2. Features and Functions

3. Safety Instructions

4. Location/Content of Warning Labels

5. Location of Parts/Components

6. Operating Instructions

7. Self-Check and Calibration

8. Technical Specifications

9. Application Demonstrations

10. Care and Handling

11. Product Warranty

12. Product Registration

13. Accessories

1. Kit Contents

Description Qty.

Self-leveling Three-Beam Laser Dot 1 “AA” Alkaline Batteries 3 Magnetic Target 1 Instruction Manual with Warranty Card 1 Soft Sided Carrying Case 1

2. Features and Functions

• Product simultaneously projects three laser beams (front, up and down).

• Magnetic dampening compensation system.

• Maintains level even when effected by vibration on the job site.

• Laser flashes and sounds audible alarm when product is beyond leveling range.

• Low voltage indication with power indication lamp flashing.

• Pendulum locking mechanism helps protect units inner mechanisms.

• Dust and rain resistant.

1282H-English 6/11/08 11:37 AM Page 3

3. Safety Instructions

Please read and understand all of the following instructions, prior to using this tool. Failure to do so, may void the warranty.

ATTENTION IMPORTANT

• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.

• Do not stare directly at the laser beam.

• Do not project the laser beam directly into the eyes of others.

• Do not set up laser tool at eye level or operate the tool near a reflective surface as the laser beam could be projected into your eyes or into the eyes of others.

• Do not place the laser tool in a manner that may cause someone to unintentionally look into the laser beam. Serious eye injury may result.

• Do not operate the tool in explosive environments, i.e. in the presence of gases or flammable liquids.

• Keep the laser tool out of the reach of children and other untrained persons.

• Do not attempt to view the laser beam through optical tools such as telescopes as serious eye injury may result.

• Always turn the laser tool off when not in use or left unattended for a period of time.

• Remove the batteries when storing the tool for an extended time (more than 3 months) to avoid damage to the tool should the batteries deteriorate.

• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt to repair this tool, warranty will be void.

• Use only original AccuLine Pro authorized dealer. Use of non-AccuLine Pro®parts and accessories will void warranty.

parts and accessories purchased from your AccuLine Pro

1282H-English 6/11/08 11:37 AM Page 4

CAUTION!

Class IIIa Laser Product Max. Power Output: ≤ 5mW Wavelength: 625-645nm

THIS TOOL EMITS LASER RADIATION. DO NOT STARE INTO BEAM. AVOID DIRECT EYE EXPOSURE.

CAUTION: If using this product with any type of tinted goggles, please note safety warning below.

WARNING!

The tinted goggles are designed to enhance the visibility of the laser beam. They DO NOT offer protection to the eyes from direct exposure of the laser beam.

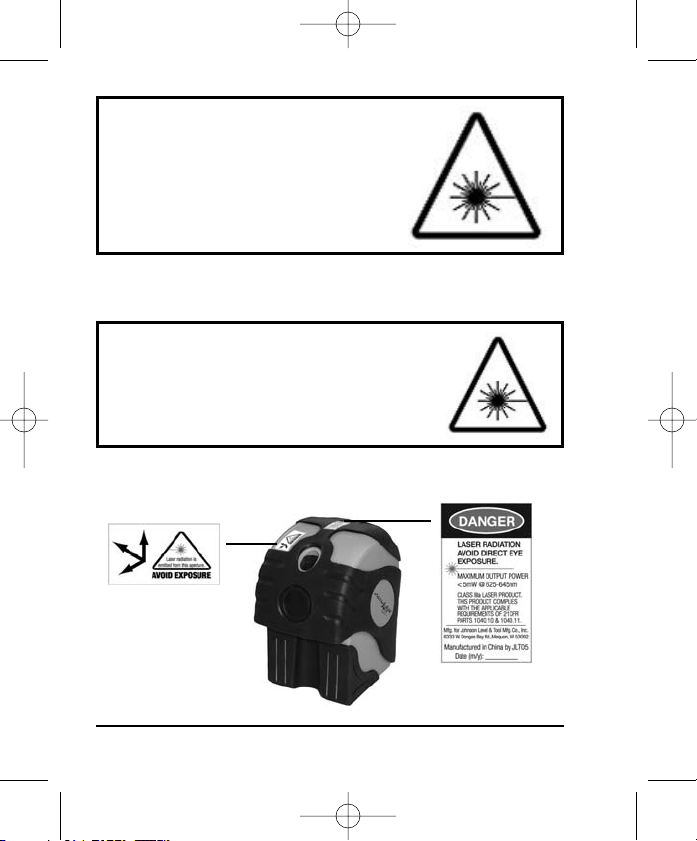

4. Location/Content of Warning Labels

1282H-English 6/11/08 11:37 AM Page 5

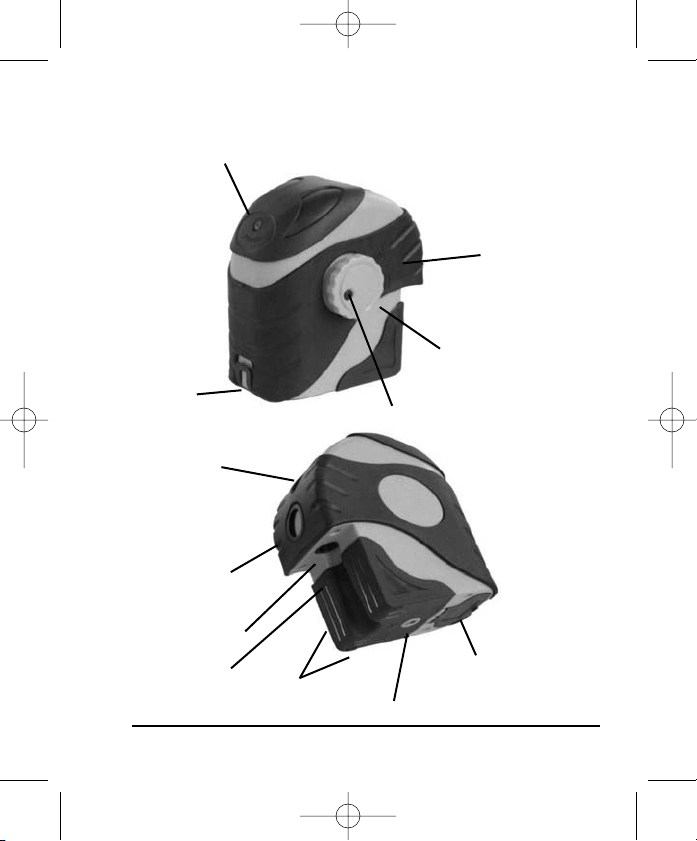

5. Location of Part/Components

Power LED

Battery door/lock

Laser output window

Calibration port plug

On/Off Indicator

Compensator lock and On/Off Switch

Laser output window

Calibration port plug

Magnets

1/4” screw thread hole

Battery door

1282H-English 6/11/08 11:37 AM Page 6

6. Operating Instructions

IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use.

Alkaline Battery Installation

Note: Always check to be sure that the on/off switch is in the off

position before removing and replacing ba

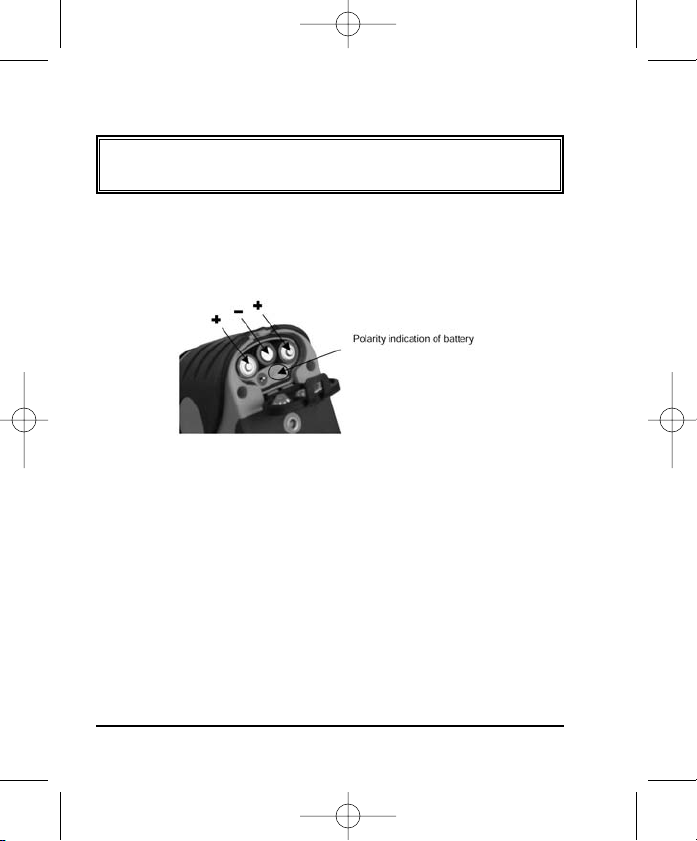

1. As shown in figure, put 3”AA” alkaline batteries into the battery compartment noting the polarity as shown in the battery compartment. Snap the battery cover shut. Turn the on/off switch to on. If the power LED is flashing, the battery is low.

tteries.

1282H-English 6/11/08 11:37 AM Page 7

Using the Instrument Power on/off

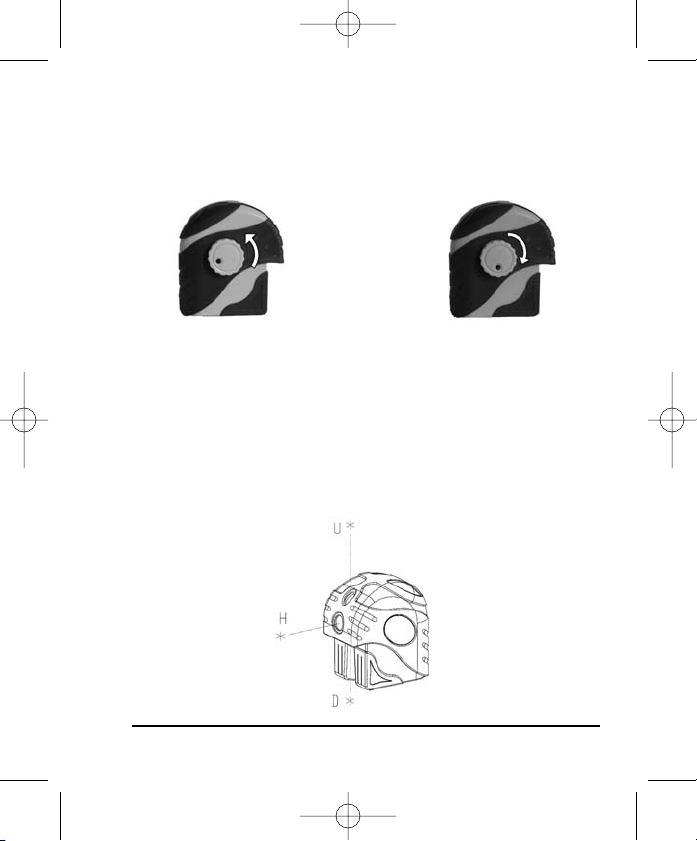

Turn the compensator lock on/off switch in the direction indicated by

the arro

To unlock and turn laser on. To lock and turn laser off.

Note: Product must be within ± 3° of level for self-leveling feature

to function properly

. Greater than ± 3° will result in an alarm

condition (flashing laser and intermittent beeping sound).

Output of laser line:

1282H-English 6/11/08 11:37 AM Page 8

7. Self-Check and Calibration

IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use.

Figure 1

1-1

1-3

1-2

1-4

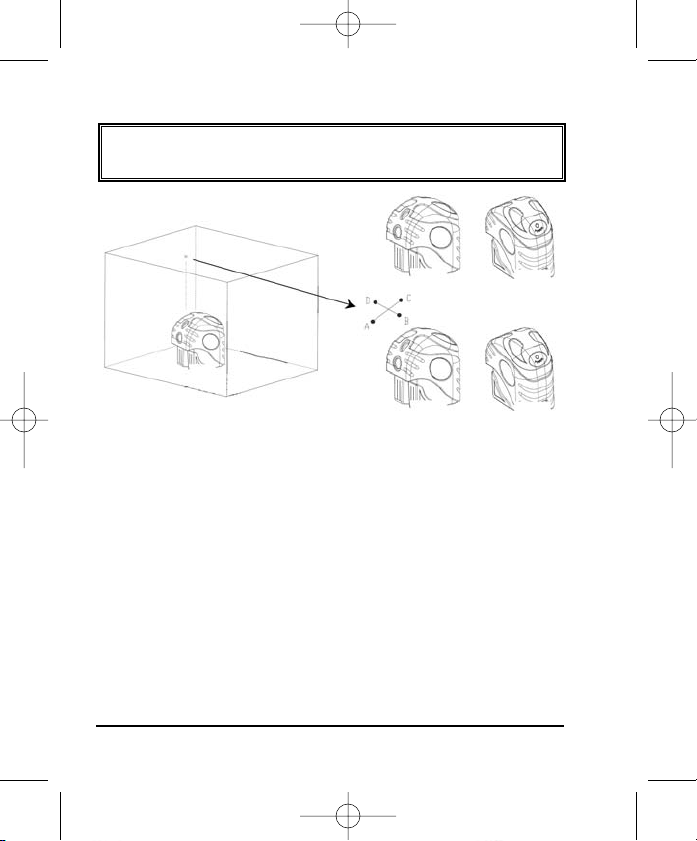

Accuracy Self-Check - Plumb point accuracy self-check

1. As shown in figure 1, put the unit on the ground in the direction shown in figure 1-1.

2. Power on the unit and mark the center of plumb-down as point “E” and plumb-up point as “A”.

3. Turn the unit 90° (as shown in figure 1-2) and place the down beam on the “E” mark. Mark the center of the plumb-up point as “B”.

4. Turn the unit 90°again (as shown in figure 1-3) and repeat step 3. Mark the center of the plumb-up point as “C”.

5. Turn the unit 90°again (as shown in figure 1-4) and repeat step 3. Mark the center of the plumb-up point as “D”.

6. Marks A-D should all be in the same spot. If not, the unit will need to be recalibrated. Please see calibration adjustment information.

1282H-English 6/11/08 11:37 AM Page 9

Accuracy Self-Check - Horizontal Laser

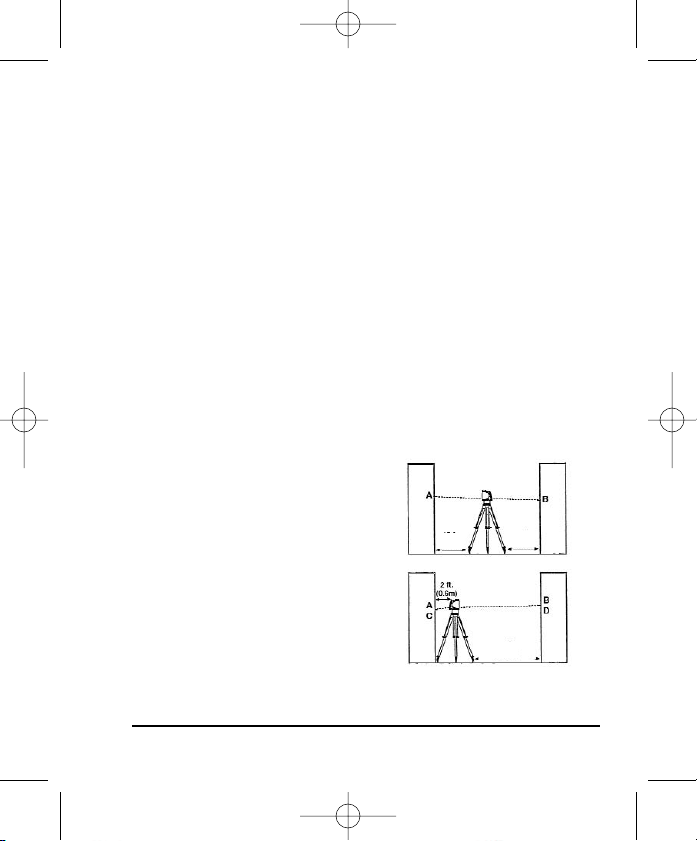

1. Set the instrument on a level surface such as a flat head tripod centered between two walls (marked 1 & 2) approximately 25 feet apart. (See fig. 1).

2. Point the instrument directly at wall 1. Turn the laser on and mark the the beam as point A.

3. Turn the instrument 180 degrees so that the laser is pointed directly at wall

2. Turn the laser and mark the beam as point B.

4. Move the instrument and the tripod so the laser is positioned approximately 2 feet away from wall 1 (see fig. 2). Level the tripod and position the instrument on the tripod facing wall 1. Turn the laser on and mark the the beam as point C.

5. Turn the laser off and rotate the laser 180 degrees so that it is facing directly to wall 2.

6. Turn on the laser and mark the beam as point D.

Wall 1

7. Measure the distance between points A & C.

8. Measure the distance between points B & D.

9. If the difference between points A & C and points B & D are less than 1/16”, your instrument is within its tolerance.

10. If it is greater than 1/16”, your unit will need to be recalibrated.

25 ft.

(7.6m)

Fig 2

48 ft.

(14.6m)

25 ft.

(7.6m)

Wall 2

Fig 1

1282H-English 6/11/08 11:37 AM Page 10

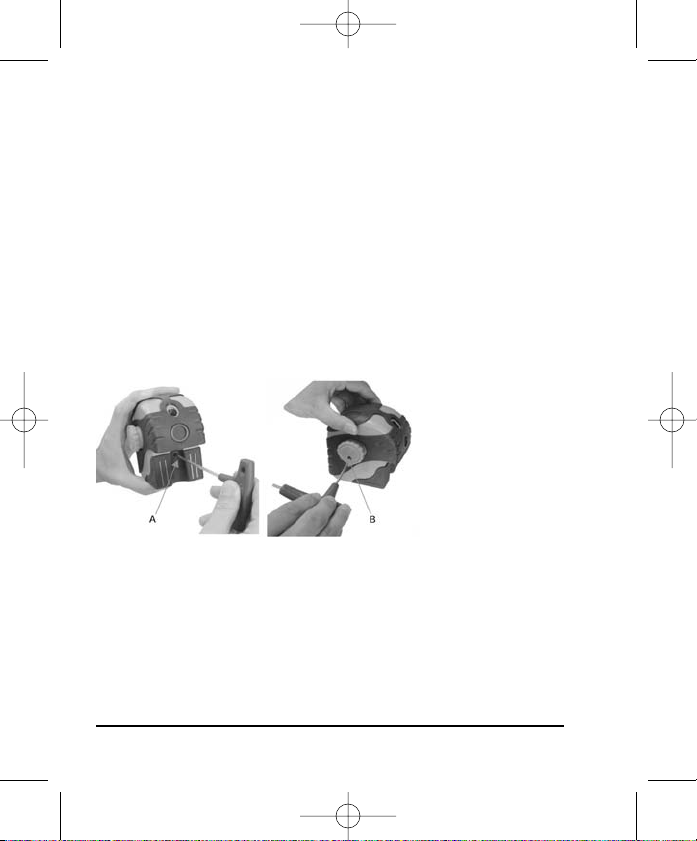

Calibration

1. Locate the front and side calibration port rubber plugs.

2. Carefully remove the rubber plugs.

3. Compensator must be unlocked and power on before making calibration adjustments.

4. Use a 3mm Allen wrench.

For adjustment to the level/front beam, turn the Front A calibration screw

5. clockwise to raise the beam and counter-clockwise to lower the beam.

6. For adjustment to the plumb beam, turn the Side B calibration screw clockwise to move the plumb beam away from you and counter-clockwise to move the beam toward you.

1282H-English 6/11/08 11:37 AM Page 11

8. Technical Specifications

Laser Wavelength 635nm±10

Laser Classification Class IIIa

Maximum Power Output ≤5mW

Accuracy ±1/8"/50 ft. (±2mm/10m)

Interior Range Up to 100 ft. (30m) diameter depending

Self-Leveling Range ± 3°

Power Supply 3 “AA” alkaline batteries (included)

Battery Life Approx. battery life 50 hours continuous use

Dimensions 4.212"x2.598"x4.528" (107x66x115mm)

Weight 0.127lbs. (0.58 Kg)

Working Temperature 14°F to 113°F (-10°C to +45°C)

Center Screw Thread 1/4” - 20

IP Protection Class 54

upon light conditions

1282H-English 6/11/08 11:37 AM Page 12

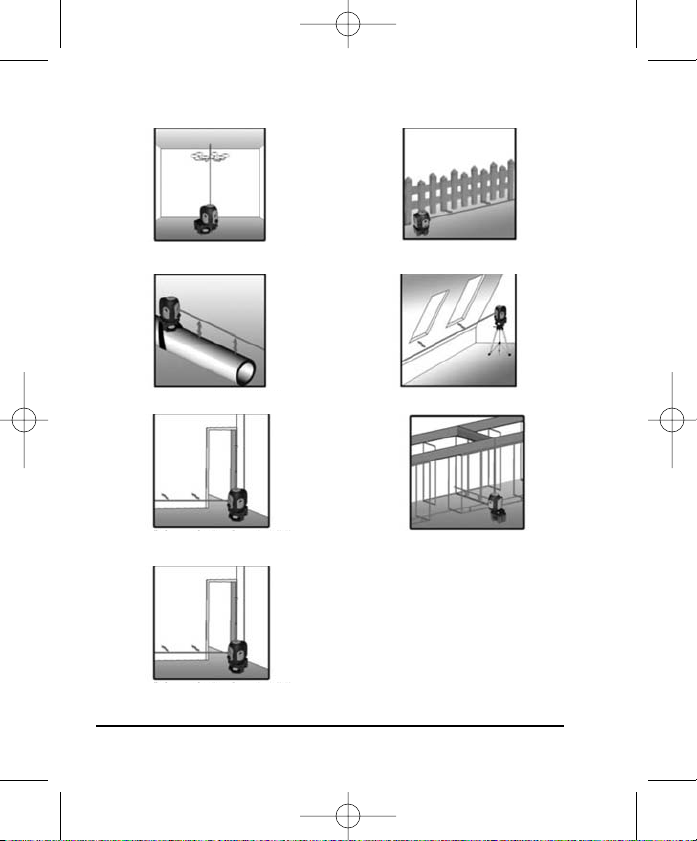

9. Application Demonstrations

Plumb reference for lamp installation

Reference for pipeline installation

Reference for door frame installation

Reference for vertical partition

Reference for fence installation

Reference for dormer installation

Reference for construction cubic partition

1282H-English 6/11/08 11:37 AM Page 13

10. Care and Handling

• This laser unit is a precision tool that must be handled with care.

• Avoid exposing unit to shock vibrations and extreme temperatures.

• Before moving or transporting the unit, make sure that the unit

is turned off and is in the locked position. Failure to lock before transport or storage may cause damage to the units inner mechanisms and void warranty.

• Remove the batteries when storing the unit for an extended time

(more than three months) to avoid damage to the unit should the batteries deteriorate.

• Always store the unit in its case when not in use.

• Avoid getting the unit wet.

• Keep the laser unit dry and clean, especially the laser output

window. Remove any moisture or dirt with a soft, dry cloth.

• Do not use harsh chemicals, strong detergents or cleaning solvents

to clean the laser unit.

11. Product Warranty

Johnson Level & Tool offers a one year limited warranty on each its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department as provided below or by visiting us online at www.johnsonlevel.com. The limited warranty for each product contains various limitations and exclusions.

Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine

service center or Johnson Level & Tool's limited warranty, if

Pro applicable, will be void and there will be NO WARRANTY. Contact our

1282H-English 6/11/08 11:37 AM Page 14

Customer Service Department to obtain a Return Material Authorization (RMA) number for return to an authorized service center. Proof of purchase is required.

NOTE: The user is responsible for the proper use and care of the product.

It is the responsibility of the user to verify the calibra instrument before each use.

For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Department.

In the U.S., contact Johnson Level & Tool’s Customer Service Department at 800-563-8553.

In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.

tion of the

12. Product Registration

Enclosed with this instruction manual you will find a warranty card to be completed for product warranty registration. Product warranty registration can also be completed online at our web site www.johnsonlevel.com. You will need to locate the serial number for your product that is located on the bottom of the unit. PLEASE NOTE THAT IN ADDITION TO ANY

OTHER LIMIT TOOL'S LIMITED WARRANTY, JOHNSON LEVEL & TOOL MUST HAVE RECEIVED YOUR PROPERLY COMPLETED WARRANTY CARD WITHIN 30 DAYS OF YOUR PURCHASE OF THE PRODUCT OR ANY LIMITED WARRANTY THAT MAY APPLY SHALL NOT APPLY AND THERE SHALL BE NO WARRANTY.

ATIONS OR CONDITIONS OF JOHNSON LEVEL &

1282H-English 6/11/08 11:37 AM Page 15

13. Accessories

AccuLine Pro®accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.

In the U.S., contact Johnson Level & Tool’s Customer Service Department at 800-563-8553.

In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.
