Automatic-Leveling Rotary Laser Level
with GreenBrite™ Technology
Model Nos. 40-6560 and 40-6570
Instruction Manual
Congratulations on your choice of this Automatic-Leveling Rotary Laser Level with GreenBrite Technology. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.
This tool emits one rotating laser beam level line that is ideal for lay­out of indoor or outdoor construction projects. Since the product is equipped with a laser beam detector, visibility of the beam in various lighting conditions is not an issue.
This is a Class IIIa laser tool and is manufactured to comply with CFR 21, parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285.
©2005 Johnson Level & Tool 1
40-6560_6570 English 5/5/05 4:30 PM Page 2
Table of Contents
1. Kit Contents
2. Features and Functions
3. Safety Instructions
4. Location/Content of Warning Labels
5. Location of Parts/Components
6. Operating Instructions
7. Using the Product
8. Self-Check and Calibration
9. Technical Specifications
10. Application Demonstrations
11. Care and Handling
12. Product Warranty
13. Product Registration
14. Accessories
1. Kit Contents
Description Model No. 40-6560 Qty.
Automatic-Leveling Rotary Laser Level with GreenBrite™ Technology 1 Ni-MH Rechargeable Battery Pack 1 6V Battery Adapter 1 Remote Control with 9V Battery 1 Detector with 3 “AAA” Batteries and Quick Clamp 1 Magnetic Target 1 Tinted Glasses 1 Instruction Manual with Warranty Card 1 Hardshell Carrying Case 1
Description Model No.
Automatic-Leveling Rotary Laser Level with GreenBrite™ Technology 1 Ni-MH Rechargeable Battery Pack 1 6V Battery Adapter 1 Multi-Function Mount with Carrying Case 1 Remote Control with 9V battery 1 Detector with 3 “AAA” Batteries with Quick Clamp 1 Magnetic Target 1 Tinted Glasses 1 Aluminum Tripod 1 8 ft. Grade Rod with Carrying Case 1 Instruction Manual with Warranty Card 1 Hardshell Carrying Case 1
2 ©2005 Johnson Level & Tool
40-6570 Qty.
40-6560_6570 English 5/5/05 4:30 PM Page 3
2. Features and Functions
• Green beam is 400% brighter than red beam laser levels.
• Large electronic auto-level range, the unit can work normally within ±5°. When beyond the leveling range, the laser line will flash, rotation of the beam will stop, and an audible alarm will activate.
• Slope operation function facilitates user of performing slope scan at different inclinations.
• Out of balance alarm function ensures product accuracy.
• Dust and rain resistant.
3. Safety Instructions
Please read and understand all of the following instructions, prior to using this tool. Failure to do so, may result in bodily injury.
CAUTION: If using this product with any type of tinted goggles, please note safety warning below.
DANGER!
Class IIIa Laser Product Max. Power Output: 5mW Wavelength: 522-542nm
THIS TOOL EMITS LASER RADIATION. DO NOT STARE INTO BEAM. AVOID DIRECT EYE EXPOSURE.
©2005 Johnson Level & Tool 3
40-6560_6570 English 5/5/05 4:30 PM Page 4
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.
• Use of controls or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally look into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or flammable liquids.
• Keep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as serious eye injury may result.
• Always turn the laser tool off when not in use or left unattended for a period of time.
• Remove the batteries when storing the tool for an extended time (more than 3 months) to avoid damage to the tool should the batteries deteriorate.
• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt to repair this tool, serious injury may result.
• Use only original AccuLine Pro Pro authorized dealer. Use of non-AccuLine Pro parts and accessories will void warranty.
parts and accessories purchased from your AccuLine
WARNING!
The tinted goggles are designed to enhance the visibility of the laser beam. They DO NOT offer protection to the eyes from direct exposure of the laser beam.
4 ©2005 Johnson Level & Tool
40-6560_6570 English 5/5/05 4:30 PM Page 5
4. Location/Content of Warning Labels
©2005 Johnson Level & Tool 5
40-6560_6570 English 5/5/05 4:30 PM Page 6
5. Location of Part/Components
Plumb Laser Beam Output Window
Rotating Laser Output Window
Handle
Operation Panel
Battery Cover
6 ©2005 Johnson Level & Tool
DC 6V Power Jack
40-6560_6570 English 5/5/05 4:30 PM Page 7
6. Operating Instructions
IMPORTANT: It is the responsibility of the user to verify the calibration
of the instrument before each use.
Battery Installation
Always check to be sure that the on/off switch is in the off
Note:
position before removing and replacing batteries.
Alkaline Battery Installation
1. Unscrew the press board of the alkaline battery case and remove the battery cover.
2. Put in 4 “C” alkaline batteries (not included) according to the illustrated polarity direction.
3. Screw the press board to press against batteries.
Ni-MH Rechargeable Battery Pack Installation
1. Unscrew the press board of the alkaline battery case and remove the battery cover.
2. Put in the Ni-MH rechargeable battery pack according to the outward direction of plug down-lead. Then insert the down-lead plug into jack inside the instrument.
3. Screw the press board to press against batteries.
Ni-MH Rechargeable Battery Charging
Using the battery adapter (included), charge the rechargeable battery pack through the outlet jack. When the charge indicator lamp turns from red to green (after five hours or so), the Ni-MH rechargeable battery pack has been fully charged.
©2005 Johnson Level & Tool 7
40-6560_6570 English 5/5/05 4:30 PM Page 8
Note:
(1) Even after battery pack appears to be full charged, we suggest
users continue to charge for 2 more hours to ensure the battery­pack’s maximum charge capacity.
(2) We also suggest charging a new battery during its initial charge
for at least ten hours.
(3) The instrument will still work even if it being charged with
adapter. (4) Do not charge alkaline batteries to avoid explosion. (5) Used (discharged) batteries are hazardous waste and should be
disposed of properly.
Instrument Usage
1. Put in Ni-MH rechargeable battery pack, or 4 “C” alkaline batteries
(not included), or connect with the 6V DC power through the
power jack.
2. Place the instrument on a platform or tripod, connecting with tripod
to the 5/8” screw thread at the bottom of the instrument.
Note: If the instrument is inclined beyond the self-leveling range,
the instrument will deliver an audible alarm. You will need to
re-position the instrument until it can be leveled.
3. Press power switch to turn power on, and press operation buttons
on control panel or use remote control to adjust to your desired
working status.
4. After finishing operation or before moving the instrument, turn the
power off.
8 ©2005 Johnson Level & Tool
40-6560_6570 English 5/5/05 4:30 PM Page 9
7. Using the Product
Operating Panel
Instrument Panel
Power On/Off
1. Press the power button to power on. The power indicator lamp should light up and then the instrument will automatically level itself, with rotation occurring once the unit is level.
2. Press the power button again to power off.
Low Battery Indication
If the battery indicator lamp is lit, this means low battery voltage. To ensure normal operation, replace batteries or charge the rechargeable Ni-MH battery pack.
Alarm If Beyond Range
If the instrument is inclined beyond the self-leveling range of ±5° , it will deliver an audible alarm, and the power indicator lamp will blink. You will need to re-position the instrument until it is within the leveling range.
©2005 Johnson Level & Tool 9
Remote Control Panel
40-6560_6570 English 5/5/05 4:30 PM Page 10
Safety Mode (TILT)
1. After powering on the instrument and entering into auto-level status, press the tilt button. When the indicator lamp lights us (see figure), the instrument enters into TILT mode. If the leveled instrument is moved or bumped, the head will stop rotation and the TILT indicator lamp will flash instead of the unit performing the auto-level function. At this time, you must press the tilt button to quit safety mode and enter into auto-level status.
2. Press the tilt button to quit safety mode and activate auto-level mode.
Slope Adjusting Function (SLOPE)
The function must be operated by the remote control (see operating panel shown in fig.1).
1. Select slope adjusting direction
The first press of X/Y button will illuminate the X indicator lamp (fig. 2) and you should then select the X-direction slope adjustment (see below). The second press of X/Y button will illuminate the Y indicator lamp (fig. 3) and you should then select the Y-direction slope adjustment. The third press of the X/Y button will quit the slope-adjusting function and enter the unit into auto-level status.
2. Adjust the slope angle
Press either of the two arrow keys on remote control (fig.1) to adjust slope angle. Note: A single press of either key activates fine tuning while a continuous pressing activates quick adjustment.
10 ©2005 Johnson Level & Tool
40-6560_6570 English 5/5/05 4:30 PM Page 11
Sleep Mode
1. The first press of the POWER button on the remote control (fig.4) will make the instrument enter sleep mode. Now the power indicator lamp on the panel is lit (fig.5), the laser beam goes out, and the instrument head stops rotation.
2. The second press of the POWER button on the remote control will make the instrument quit sleep mode and enter auto-level status.
Detector Usage
This green laser level uses a specific detector for the green
Note:
beam and will not perform accurately with standard detectors.
1. Product Description
A laser detector is an indispensable accessory when using rotary laser levels. The main function of the detector is to locate the position of laser signals transmitted by rotary lasers. This detection quickly and precisely provides the user with the horizontal and vertical references. This product features a high level of sensitivity, a double-faced display, low power consumption, good reliability and easy manipulation.
©2005 Johnson Level & Tool 11
40-6560_6570 English 5/5/05 4:30 PM Page 12
2. Technical Specifications
Detecting range 656 ft. (200m) Detecting accuracy Fine ±0.08" (±2mm) when range is < 492 ft. (150m)
Turn-off time 6 minutes ±1 minute Power DC 3.3V or 3 “AAA” batteries Sound indicator slow short sounds, rapid short sounds
LED indicator up, mid, down Dimensions 7.087" x 3.228" x 0.236" (180 x 82 x 26mm) Weight 0.485 lb. (220g) Others Rain and dust resistant
Coarse ±0.16" (+4mm) when range is < 492 ft. (150m) Fine ±0.12" (±3mm) when range is > 492 ft. (150m) Coarse ±0.24" (+6mm) when range is > 492 ft. (150m)
and a continuous sound
3. Components
(a) Structure
1) Horizontal vial
2) Right-faced display window
3) Lineation slot
4) Receiving window
5) Power button
6) Buzzer
7) Battery-box
8) Sound switch
9) Coarse/Fine detection switch
10) Illumination switch
11) Mounting hole
12) Battery installation symbol
13) Scale
12 ©2005 Johnson Level & Tool
40-6560_6570 English 5/5/05 4:30 PM Page 13
(b) Display
1. Power indicator
2. Low battery indicator
3. Detection indicator
4. Sound indicator
5. Detected position (grade) indicator
4. Operation Guide
(a) Battery Installation
1) Rotate battery-box cap counterclockwise to open it. (A coin fits easily into this slot.)
2) Insert 3 AAA batteries (note polarity) and then rotate battery-box cap clockwise to close it.
3) When the battery voltage is low, the unit will display a low battery indicator and there will be a buzzing “reminder” sound every 2-4 seconds. You will still be able to use the instrument for a short period of time, but should change the battery soon. (Note: When the low battery indicator is displayed, the illumination function cannot be used. (See “Using the Illumination Function.)
Note:
a) Remove the batteries when the unit is being stored for a long time. b) When the low battery indicator is displayed, change the battery soon. c) Turning off the sound and illumination functions will allow you to use the unit longer.
©2005 Johnson Level & Tool 13
40-6560_6570 English 5/5/05 4:30 PM Page 14
(b) General Detector Usage
Always keep the instrument stable
Note:
when detecting.
1) Press the power key to turn the unit on. The LCD display will illuminate all the indicator segments for 0.5 second (Fig. 6). When the indicator segments are no longer illuminated, the detector
Fig. 6 Fig. 7 is ready for use. Note: The LCD display will still have the power, detection and sound indicators illuminated (Fig. 7).
2) Detecting horizontal laser level signals
• Place the unit in a vertical position (verify by checking the horizontal vial bubble).
• Make sure the receiving window (on front of detector) is facing the laser level unit and is receiving the laser signal.
- If the LCD shows a “down” arrow and emits rapid short sounds, this indicates that the laser level signal is located below the detector (Fig. 8).
- If the LCD shows an “up” arrow and emits slow short sounds, this indicates that the laser level signal is located above the detector (Fig. 9).
- If the LCD shows the “center” mark and emits a continuous sound, this indicates that the laser level signal is located in the center position on the detector.
(Fig. 10-1) LCD indicating center position of coarse detection (Fig. 10-2) LCD indicating center position of fine detection
14 ©2005 Johnson Level & Tool
Fig. 8 Fig. 9 Fig. 10-1 Fig. 10-2
40-6560_6570 English 5/5/05 4:30 PM Page 15
Note: As the laser signal gradually nears the center position on the detector, the arrow displayed will decrease in length until just the center position signal is displayed (Fig. 11, 12, 13-1, 13-2).
Fig. 11 Fig. 12 Fig. 13-1 Fig. 13-2
3) Detecting vertical laser level signals
• Place the unit in a horizontal position.
• Make sure the receiving window (on front of detector) is facing the laser level unit and is receiving the laser signal.
- If the LCD shows a “left” arrow and emits rapid short sounds, this indicates that the laser level signal is located to the right of the detector (Fig. 14).
- If the LCD shows a “right” arrow and emits slow short sounds, this indicates that the laser level signal is located to the left of the detector (Fig. 15).
- If the LCD show the “center” mark and emits a continuous sound, this indicates that the laser level signal is located in the center position on the detector.
(Fig. 16-1) LCD indicating center position of coarse detection (Fig. 16-2) LCD indicating center position of fine detection
©2005 Johnson Level & Tool 15
Fig. 14
Fig. 15
Fig. 16-1
Fig. 16-2
40-6560_6570 English 5/5/05 4:30 PM Page 16
4) When you are finished using the detector, press the power key to turn the unit off.
(c) Using the Sound Function
With the detector turned ON, press the sound switch to alternate between sound-on and sound-off.
Sound
Note: The sound indicator will also turn on and off in the LCD screen (Fig. 17, 18).
Fig. 17 Fig. 18
With the sound function turned on:
- If the laser signal is above the detector, a slow short sound is emitted.
- If the laser signal is below the detector, a rapid short sound is emitted.
- If the laser signal is aligned on the mid portion of the detector, a continuous sound is emitted.
Note: Whether or not the sound function is in use, there is still indicator sound when you press the key.
(d) Using the Coarse/Fine Detecting Switch
With the detector turned ON, press the coarse/fine switch. This switch alternates the unit between coarse and fine detecting. The detector has different check and measure precision. (Fig. 19) LCD indicating coarse detection (Fig. 20) LCD indicating fine detection
Fig. 19 Fig. 20
Silence
16 ©2005 Johnson Level & Tool
40-6560_6570 English 5/5/05 4:30 PM Page 17
(e) Using the Illumination Function
With the detector turned ON, press the illumination switch. This switch turns the background illumination of the LCD on and off.
(f) Power Saving Function
When the instrument cannot receive the laser signal for 6 continuous minutes, and there is no detection occurring during this 6 minutes, the unit will shut off automatically to prolong the battery’s life.
(g) Low Battery Indicator
If the LCD shows a blinking battery sign, it is indicating that you have low charge on your batteries and that you need to change them soon (Fig. 21). If the battery power is too low, the instrument will shut off automatically. At this time, you must change the batteries in order to continue using the detector.
5. Detector Maintenance
• When you are done using the detector, return it to its packing case.
• Keep the instrument, particularly the detecting window, clean. If unit becomes dusty, use a clean cloth to gently wipe it clean.
• Avoid knocking the unit over or allowing it to fall on the ground.
• Although the instrument is rain resistant, you should avoid submerging the unit in water or other liquids. If unit comes into contact with water or other liquids, wipe it dry immediately.
• Do not use unit around fire or expose it to fire in any way.
Blink
Fig. 21
©2005 Johnson Level & Tool 17
40-6560_6570 English 5/5/05 4:30 PM Page 18
8. Self-Check and Calibration
Accuracy Self-Check
1. Set up the instrument on a table 33 ft. (10m) away from an indoor wall, and press the power switch to put the instrument in quick scan status.
2. Make a mark A at the laser beam projected on the front wall. Note: it should not be too bright indoors, otherwise the laser beam on wall will become unclear.
3. Rotate the instrument by 90° in turn, and mark B, C, D respectively on the wall.
4. Measure the distance h between the highest and the lowest point among A, B, C, D.
0.079" (2mm) the accuracy is within tolerance. If
5. If h 2
h0.394" (10mm), users can make accuracy calibration by themselves. If h document.
0.394" (10mm), reference section 12 of this
Wall
18 ©2005 Johnson Level & Tool
40-6560_6570 English 5/5/05 4:30 PM Page 19
Accuracy Calibration
With reference to the above step 4 of Accuracy Self-Check, select h/2 position as datum line.
1. Enter into self-calibration
In power-off status, press the power button and tilt button on the instrument. Then, release the power button while still holding the tilt button down for 10 seconds. After the self-calibration indicator lamps of X and Y direction blink three times at the same time, release the tilt button and the instrument will enter self-calibration mode. Note: Remote control must be used during self-calibration.
2. X-direction self-calibration
(a) Select self-calibration direction: First, make X-direction of the
instrument face against datum line, and then press X/Y button once to select self-calibration for X-direction.
Now the X-direction indicator lamp in the CALIBRATOR area of front panel is lit (see fig. 22-1), and rotating head begins to rotate.
Fig. 22-1 Fig. 22-2 Fig. 22-3
(b) Calibrate laser beam to datum line position: Press two buttons on
remote control (fig. 22-2), and adjust laser beam to datum line position.
©2005 Johnson Level & Tool 19
40-6560_6570 English 5/5/05 4:30 PM Page 20
(c) Confirm the calibrated value:
Press ENT button on remote control to confirm calibrated value. After pressing this button, the X-direction self-calibration indicator lamp will go out (fig. 22-3).
Note: After calibration, power off and then power on again, in order for the calibration to take effect.
3. Y-direction self-calibration
(a) Select direction of self-calibration:
First, make Y-direction of the instrument face against datum line, and then press X/Y button twice to select self-calibration for Y-direction. Now the Y-direction indicator lamp in the CALIBRATOR area of flank panel is lit (fig. 22-4), and rotating head begins to rotate.
Fig. 22-4 Fig. 22-5 Fig. 22-6
(b) Calibrate laser beam to datum line position:
Press two buttons on remote control (fig. 22-5), and adjust laser beam to datum line position.
(c) Confirm the calibrated value:
Press ENT button on remote control to confirm self-calibrated value, and with the press on this button, Y-direction self-calibration indicator lamp will go out (fig.22-6).
20 ©2005 Johnson Level & Tool
40-6560_6570 English 5/5/05 4:30 PM Page 21
(d) Power off and then power on again, to check instrument accuracy.
If the accuracy is still beyond tolerance, please repeat the above steps until the accuracy is within the specified tolerance.
Note: After calibration, power off and then power on again, in order for the calibration to take effect. After X-direction self-cali­bration, Y-axis accuracy must be checked. After Y-direction self­calibration, X axis accuracy must be checked, until all of the X and Y axis accuracy is within the specified tolerance.
9. Technical Specifications
Laser Wavelength 532nm±10nm Laser Classification Class IIIa Maximum Power Output Accuracy Horizontal Rotation = ±1/8"/100 ft. (±0.1mm/m)
Working Range Maximum 100 ft. (30m),
Measuring Range 656 ft. radius (200m) with detector
Self-Leveling Range ±5° (delivers an alarm if beyond range,
Power Supply 4 “C” alkaline batteries (not included),
Dimensions 7.4" x 5.91" x 8.15" (188 x 150 x 207mm) Weight 5.512 lbs. (2.5Kg) Working Temperature 32°F to 104°F (0°C to 40°C) Center Screw Thread 5/8" – 11 Rotation Speed 700 rpm Range Scan Area Continuous, small range, large range, point Enclosure Dust and rain resistant
©2005 Johnson Level & Tool 21
5mW
Vertical Rotation = ±3/16"/100 ft. (±0.15mm/m)
depending upon light conditions
33 ft. (10m) with remote
and stops rotation simultaneously)
rechargeable battery pack, or 6V adapter (included)
40-6560_6570 English 5/5/05 4:30 PM Page 22

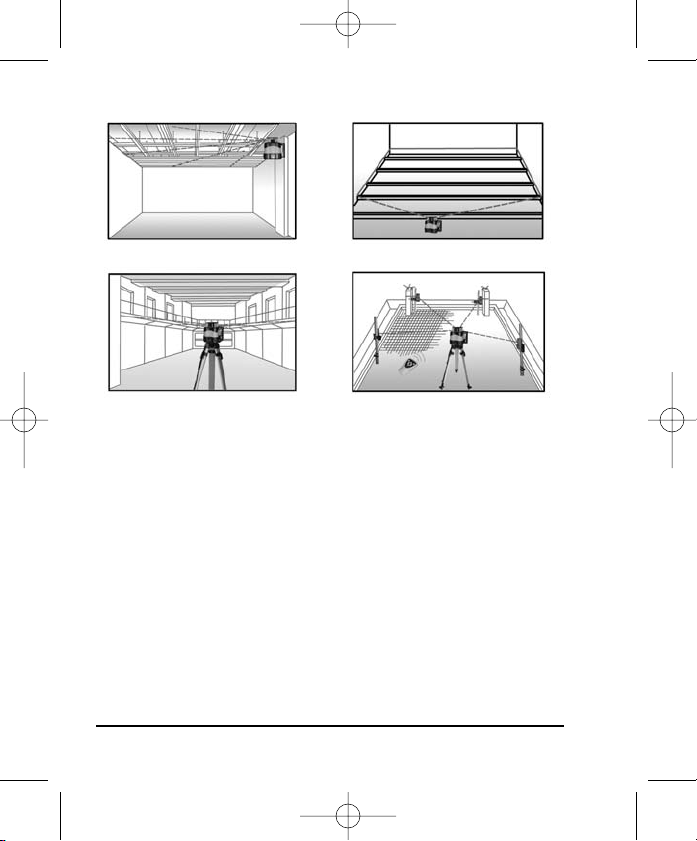

10. Application Demonstrations
Reference for ceiling installation
Reference for fence installation
Reference for flooring installation
Reference for square leveling
11. Care and Handling
This laser unit is a precision tool that must be handled with care.
Avoid exposing unit to shock vibrations and extreme temperatures.
Before moving or transporting the unit, make sure that the unit
is turned off.
Remove the batteries when storing the unit for an extended time
(more than three months) to avoid damage to the unit should the batteries deteriorate.
Always store the unit in its case when not in use.
Avoid getting the unit wet.
Keep the laser unit dry and clean, especially the laser output
window. Remove any moisture or dirt with a soft, dry cloth.
Do not use harsh chemicals, strong detergents or cleaning solvents
to clean the laser unit.
22 ©2005 Johnson Level & Tool
40-6560_6570 English 5/5/05 4:30 PM Page 23
12. Product Warranty
Johnson Level & Tool offers a one year limited warranty on each its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department as provided below or by visiting us online at www.johnsonlevel.com. The limited warranty for each product contains various limitations and exclusions.
Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine Pro™ service center or Johnson Level & Tool's limited warranty, if applicable, will be void and there will be NO WARRANTY. Contact our Customer Service Department to obtain a Return Material Authorization (RMA) number for return to an authorized service center. Proof of purchase is required.
NOTE: The user is responsible for the proper use and care of the product.
It is the responsibility of the user to verify the calibration of the instrument before each use.
For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Department.
In the U.S., contact Johnson Level & Tool’s Customer Service Department at 800-563-8553.
In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.
©2005 Johnson Level & Tool 23
40-6560_6570 English 5/5/05 4:30 PM Page 24
13. Product Registration
Enclosed with this instruction manual you will find a warranty card to be completed for product warranty registration. Product warranty registration can also be completed online at our web site www.johnsonlevel.com. You will need to locate the serial number for your product that is located on the bottom of the unit.
OTHER LIMITATIONS OR CONDITIONS OF JOHNSON LEVEL & TOOL'S LIMITED WARRANTY, JOHNSON LEVEL & TOOL MUST HAVE RECEIVED YOUR PROPERLY COMPLETED WARRANTY CARD WITHIN 30 DAYS OF YOUR PURCHASE OF THE PRODUCT OR ANY LIMITED WARRANTY THAT MAY APPLY SHALL NOT APPLY AND THERE SHALL BE NO WARRANTY
PLEASE NOTE THAT IN ADDITION TO ANY
.
14. Accessories
AccuLine Pro™ accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.
In the U.S., contact Johnson Level & Tool’s Customer Service Department at 800-563-8553.
In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.
24 ©2005 Johnson Level & Tool
Loading...
