Digital Laser Level & Angle Locator
163918
Model No. 40-6065
Instruction Manual
Congratulations on your choice of this Digital Laser Level & Angle
Locator. We suggest you read this instruction manual thoroughly before
using the instrument. Save this instruction manual for future use.
This is a Class IIIa laser tool and is manufactured to comply
with CFR 21, parts 1040.10 and 1040.11 as well as international
safety rule IEC 285.
©2009 Johnson Level & Tool - Rev. 1 1
Table of Contents
1. Kit Contents
2. Features and Functions
3. Safety Instructions
4. Location/Content
of Warning Labels
5. Location of Parts/Components
6. Operating Instructions
7. Using the Product
8. Self-Check and Calibration
9. Technical Specifications
10. Care and Handling
11. Product Warranty
1. Kit Contents
Description Qty.
“AA” Alkaline Batteries 3
Soft-sided Pouch 1
Instruction Manual 1
2. Features and Functions
• Displays angle and inclination simultaneously
• Angle measurements in degrees
• Angle inclination in 5 construction languages - units of measure
(degrees, percent, mm/m, in/ft in decimal, in/ft in fractional)
• Automatic digit inversion for overhead measurements
• Working range of angle measurement 0 to 182.5º
• Automatic shut-off
• Hold-function to hold measurement
• Locking arm increase length to 3’ 3 1/2”
• Arm can be locked in all positions
• Visible laser beam to extend working range
• Magnetic Base
2 ©2009 Johnson Level & Tool - Rev. 1
3. Safety Instructions
Please read and understand all of the following instructions, prior
to using this tool. Failure to do so, may result in bodily injury.
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as
the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally
look into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or
flammable liquids.
• Keep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as
serious eye injury may result.
• Always turn the laser tool off when not in use or left unattended for a period of time.
• Remove the batteries when storing the tool for an extended time (more than 3 months)
to avoid damage to the tool should the batteries deteriorate.
• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt
to repair this tool, warranty will be void.
DANGER
Class IIIa Laser Product
Max. Power Output: ≤ 5mW
Wavelength: 640-660nm
THIS TOOL EMITS LASER RADIATION.
DO NOT STARE INTO BEAM.
AVOID DIRECT EYE EXPOSURE.
©2009 Johnson Level & Tool - Rev. 1 3

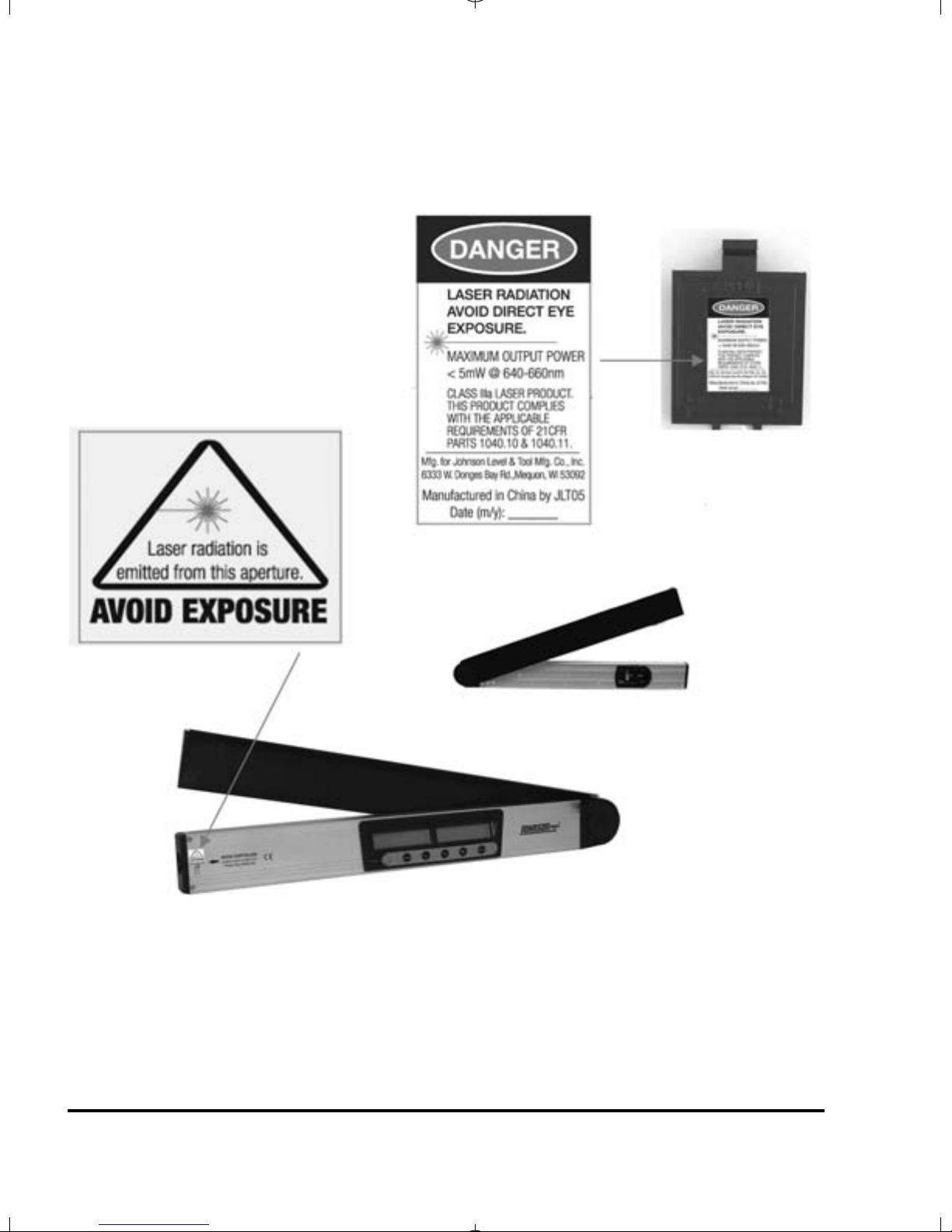

4. Location/Content of Warning Labels
4 ©2009 Johnson Level & Tool - Rev. 1

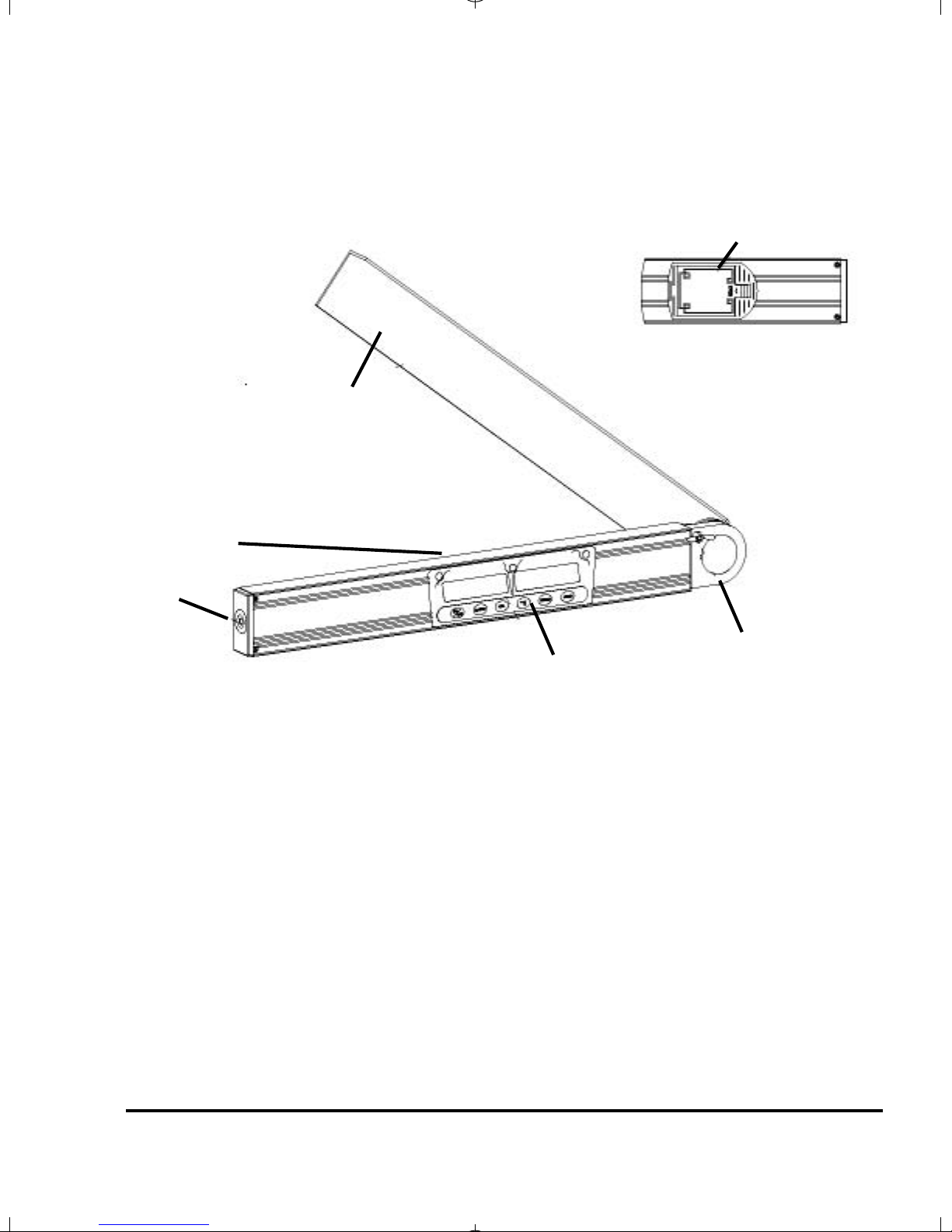

5. Location of Part/Components
Angle Level Arm
LCD Displays
Battery Compartment
Laser Point
Panel
Locking
Screw
©2009 Johnson Level & Tool - Rev. 1 5
6. Operating Instructions
IMPORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.

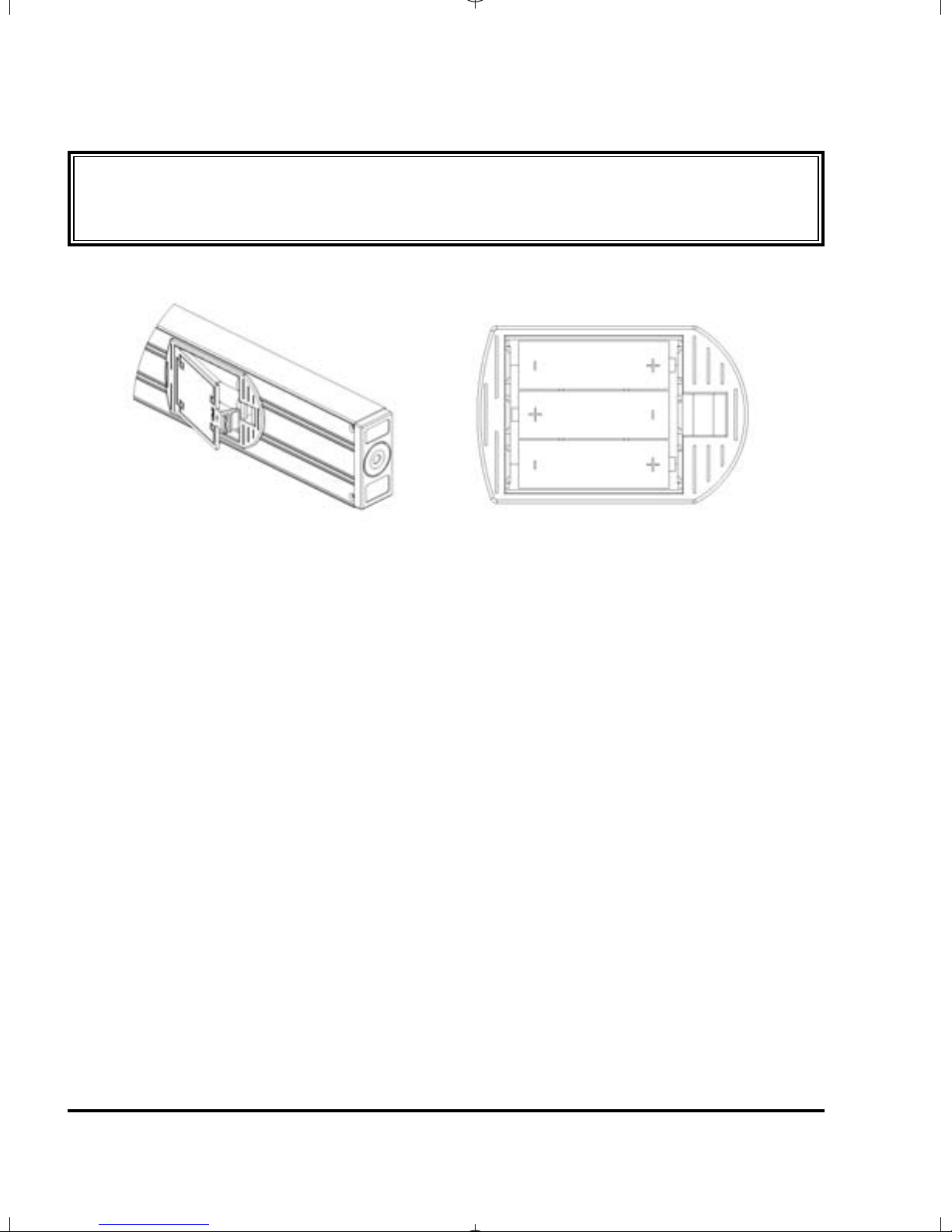

Battery Installation
1. Make sure the instrument is turned off.
2. Open the battery cover. Take out the old batteries and put the
new batteries in paying attention to the polarity.
3. Power on the instrument.
Note:
1. Used (discharged) batteries are hazardous waste and should be
disposed of properly.
2. Take out the batteries if the instrument is not going to be used
for a long time.
6 ©2009 Johnson Level & Tool - Rev. 1
7. Using the Product

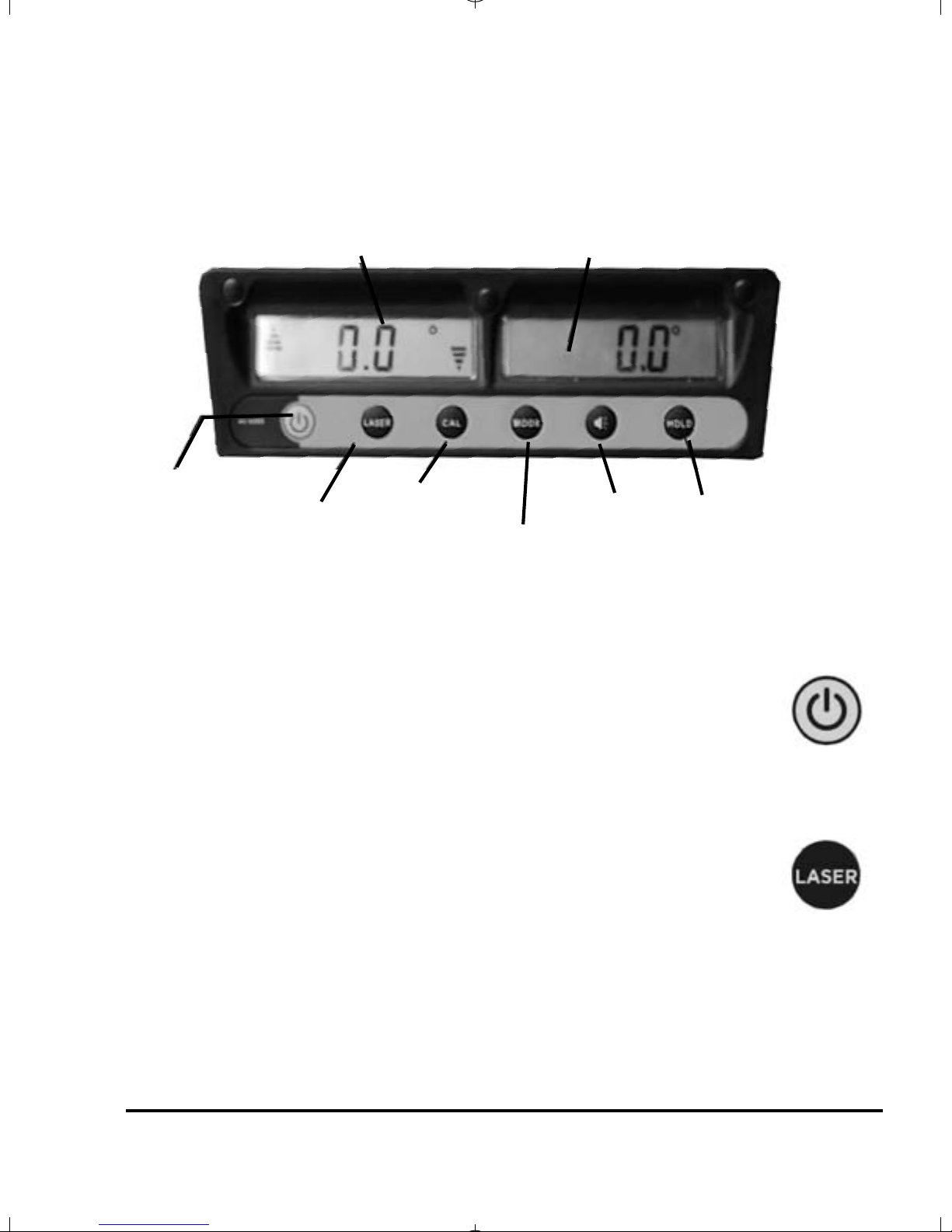

Key Guide
Display for Digital Level
Display for Angle Locator
Power
Laser
Calibration
Sound
Hold
Mode
The instrument has six operating keys with their functions below:
Power Key
Power on and off the instrument by pressing this key. The
instrument will beep twice when turning it on and off.
Laser Key
Pressing this key will turn on the laser beam and the laser
icon will appear on the LCD. The instrument will also beep
once. Pressing this key again will turn off the laser beam
and the laser icon will disappear on the LCD. Note: The instrument
must be turned on for the laser beam to work.
©2009 Johnson Level & Tool - Rev. 1 7
CAL Key
The calibration key is used for re-calibrating the instrument
in both the horizontal and vertical direction. Refer to
Section 8 “Calibration” for details.
Mode Key
Push the MODE key to switch from one dimension to
another. This controls which dimension your electronic
module will measure in. Your level has the capability to measure in
Degrees, Percentage of slope, Millimeters per Meter, Inches per Foot
(Slope, Pitch) in decimal form and Inches per Foot in fractions of an
inch. A symbol on the upper right of the screen will explain which
MODE you are currently in.
Sound Key
Pressing this key will turn on the sound function and the
sound icon will appear on the LCD. Pressing the key again
will turn off the sound function and the sound icon will disappear on
the LCD. The instrument will beep once when turning the sound on
and off. The beep will sound at 0º and 90º.
Hold Key
The angle readings change in accordance with the change of
the incline. Press the key (unit will beep once) to enter into
the “hold” mode. The measured angle reading will be held. The
display will flash and the angle measurement will not change.
Pressing the key again (unit will beep once) will stop the “hold” mode
and measured value will change with the incline.
8 ©2009 Johnson Level & Tool - Rev. 1
Mode
Automatic Shut-off
This instrument will shut-off automatically if no operation is received
within 20 minutes.

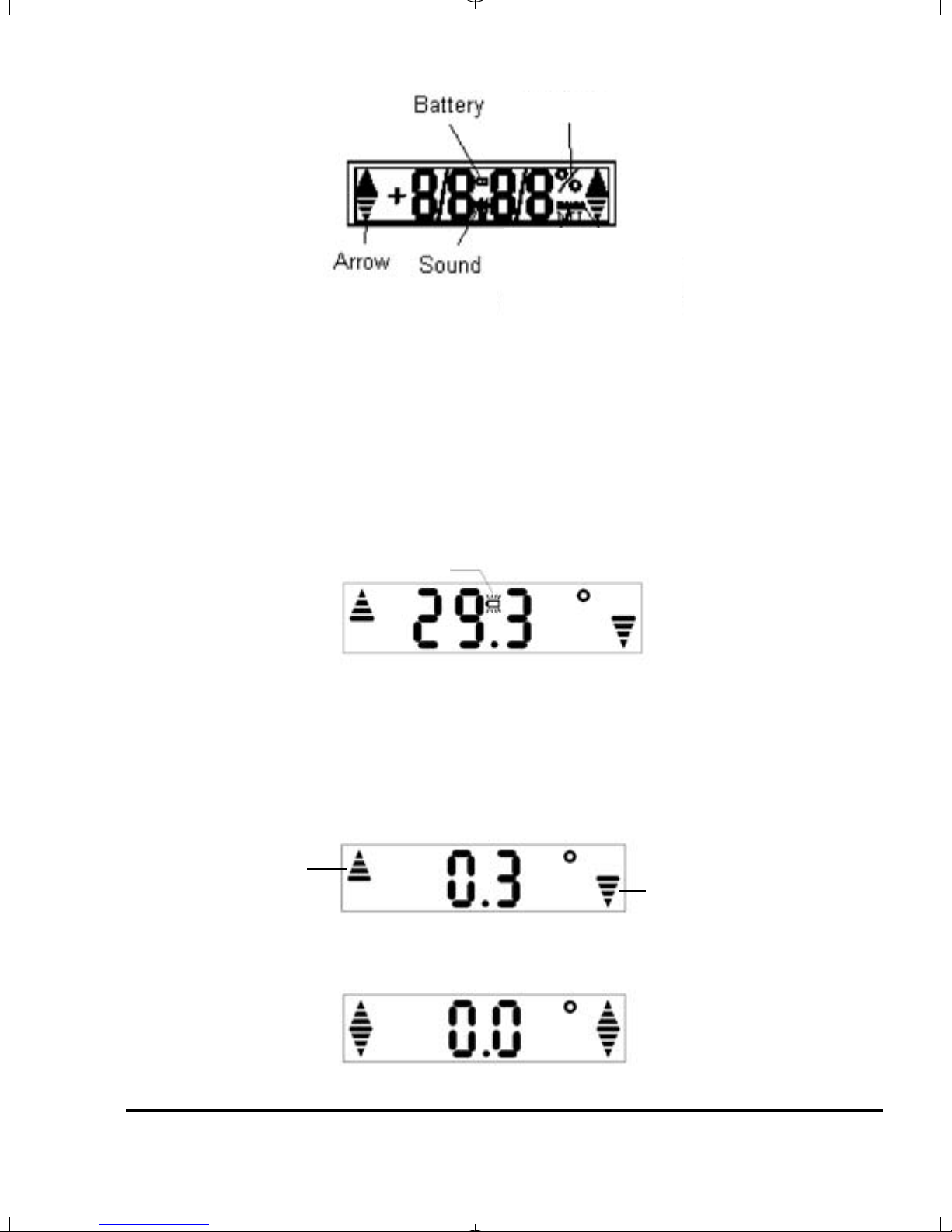

Low-power Indication
The battery symbol will flash on the LCD when the battery power is
low. Replace the batteries as soon as possible.
Battery Symbol
Incline Indication Arrows
The following figure shows that moving the angle level according to
the indicated direction arrows is necessary if you want to position the
level to horizontal or vertical.
Incline
Indication
Incline
Indication
The following figure shows that the level is level or plumb.
©2009 Johnson Level & Tool - Rev. 1 9

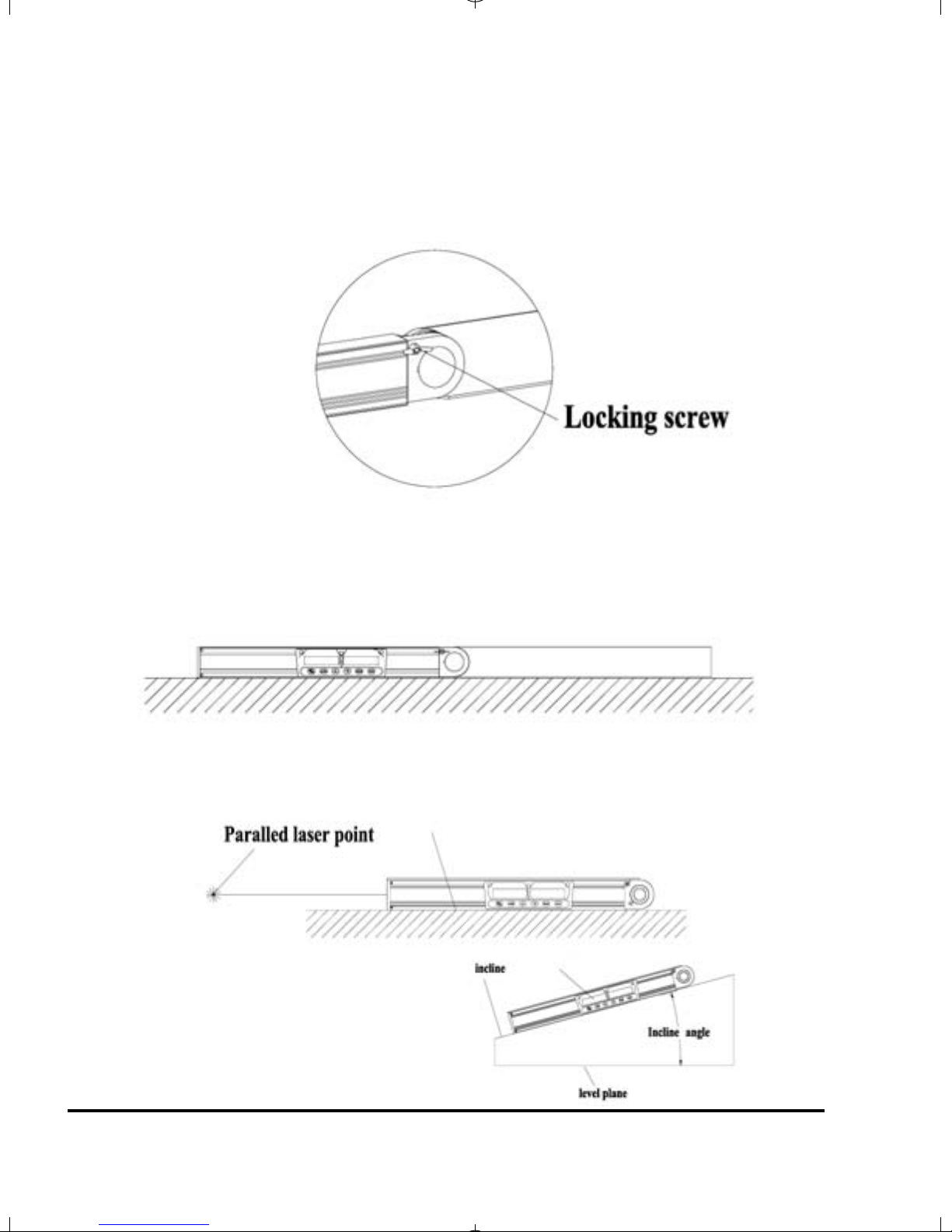

Locking Arm
When the surface is long, turn the angle level arm to 180º, then tighten
the locking screw clockwise. You can lock the arm at any angle within
the range of 0º to 180º.
The laser point will be parallel with the reference plane
Measuring the inclining angle to
the level plane.
10 ©2009 Johnson Level & Tool - Rev. 1
Reference plane
Display window

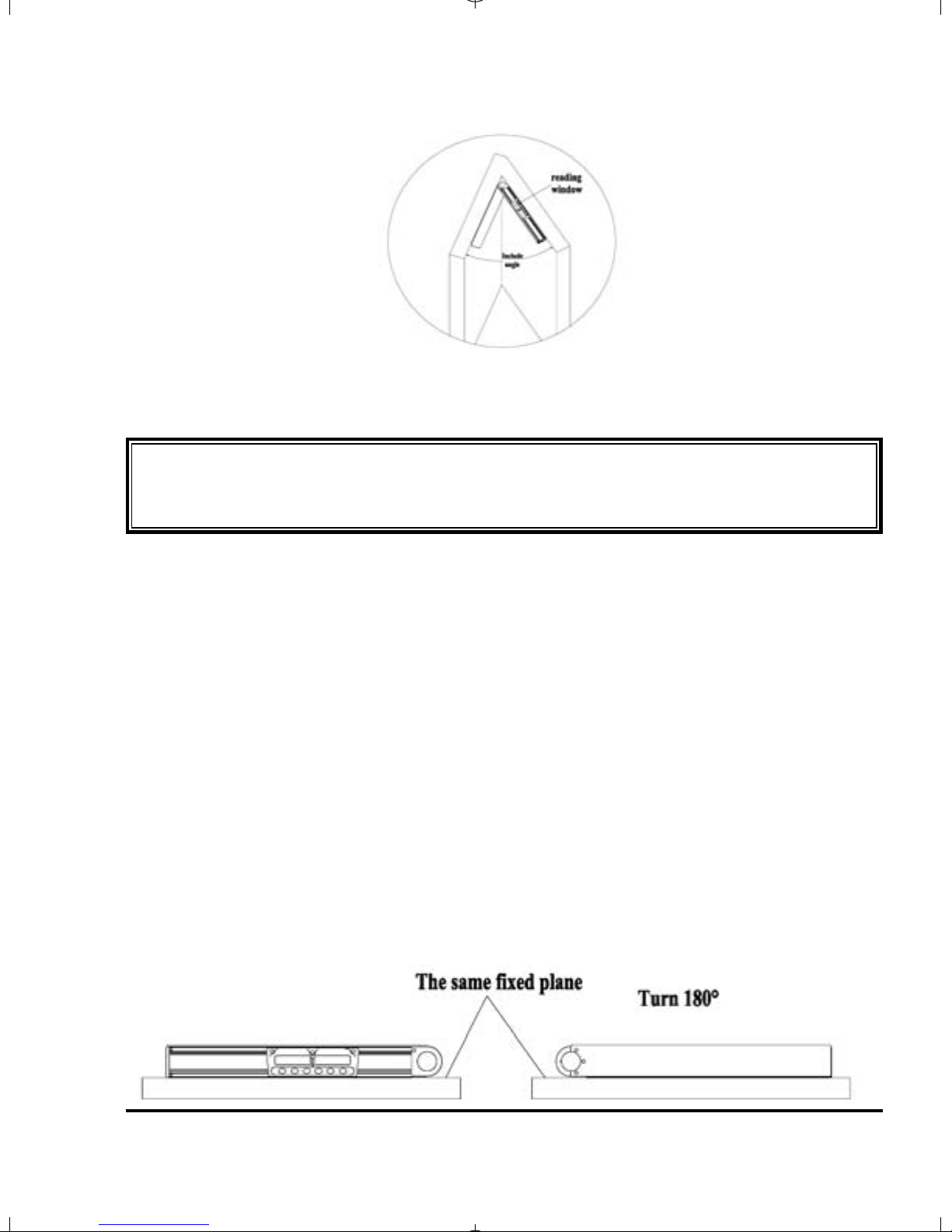

Measuring an angle.
8. Self-Check and Calibration
IMPORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.
To guarantee the best measuring precision of the incline, vertical and
leveling plane:
Calibrate before first use.
Before important measurements.
After a hit or drop.
Horizontal Calibration
Put the angle level on a smooth level plane and observe the LCD
display. Note the reading after ten seconds. Then turn the angle
level 180º on the same plane. After another ten seconds note the
second angle reading. Calibration is necessary if the difference
between the two measuring readings is over 0.1º.
©2009 Johnson Level & Tool - Rev. 1 11

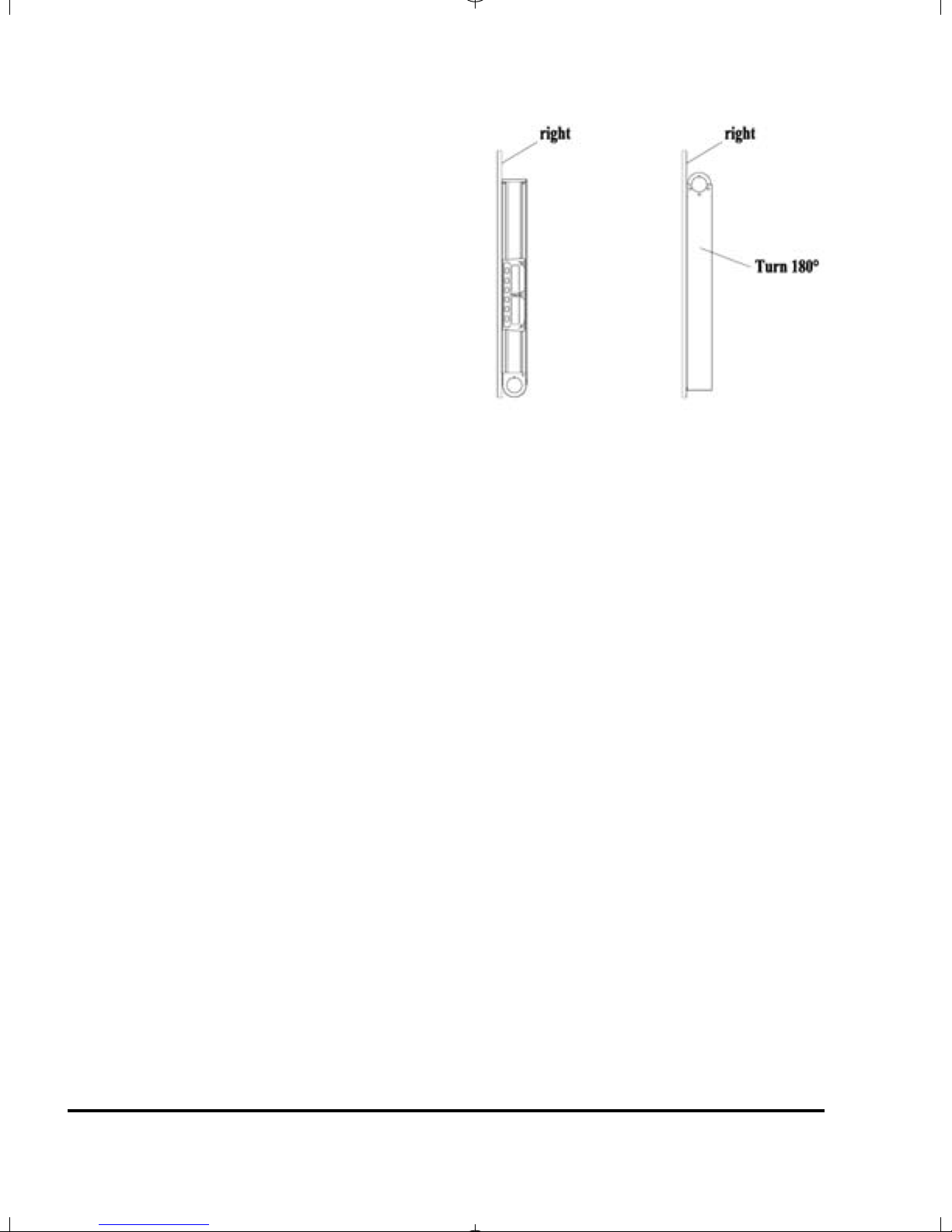

Vertical Calibration
Put the angle level on a smooth
vertical plane and observe the LCD
display. Note the reading after 10
seconds. Then turn the angle level
180º on the same plane. After
another ten seconds note the second
angle reading. The calibration is
necessary if the difference between
the two measuring readings is
over 0.1%.
Calibration in the Horizontal Direction
1. Put the level on a flat surface and press the “CAL” button. -0- will
be displayed. Wait 10 seconds.
2. Press the “CAL” button again and -1- will be displayed. Turn the
level 180 degrees on the same surface. Wait another 10 seconds.
3. Press the “CAL” button once again. If it beeps once the calibration
is completed, it is correct. If it beeps twice the calibration is not
completed and the procedure should be repeated. If it continues
to beep twice the sensor may have been damaged and the unit
should be serviced.
4. Then do the same thing for the vertical with both the logo on the
top and with the logo on the bottom.
12 ©2009 Johnson Level & Tool - Rev. 1
9. Technical Specifications
Laser Wavelength 650nm ± 10
Laser Classification Class IIIa
Maximum Power Output ≤5mW
Laser Accuracy ± 1/8"/50 ft. (±0.2mm/m)
Working Range Angle 0º-182.5º
Accuracy Angle ±0.1º
Range 0º to 90º
Resolution 0.1º or 0.1%
Accuracy ±0.1º for 0º and 90º and
±0.2º for 1º to 89º
Power Supply 3 “AA” alkaline batteries
Battery Life Approx. battery life 70 hours
continuous use
Dimensions 20.8" x 2.48" x 1.57"
(530 x 63 x 40mm)
Weight 2.6 lbs. (1.2 Kg)
Working Temperature 14°F to 113°F (-10°C to +45°C)
©2009 Johnson Level & Tool - Rev. 1 13
10. Care and Handling
• This laser unit is a precision tool that must be handled with care.
• Avoid exposing unit to shock vibrations and extreme temperatures.
• Before moving or transporting the unit, make sure that the unit
is turned off.
• Remove the batteries when storing the unit for an extended time
(more than three months) to avoid damage to the unit should
the batteries deteriorate.
• Always store the unit in its case when not in use.
• Avoid getting the unit wet.
• Keep the laser unit dry and clean, especially the laser output
window. Remove any moisture or dirt with a soft, dry cloth.
• Do not use harsh chemicals, strong detergents or cleaning solvents
to clean the laser unit.
14 ©2009 Johnson Level & Tool - Rev. 1
11. Product Warranty
Johnson Level & Tool offers a one year limited warranty on each its
products. You can obtain a copy of the limited warranty for a
Johnson Level & Tool product by contacting Johnson Level & Tool's
Customer Service Department as provided below or by visiting us
online at www.johnsonlevel.com. The limited warranty for each
product contains various limitations and exclusions.
NOTE: The user is responsible for the proper use and care of the
product.
It is the responsibility of the user to verify the calibration of the
instrument before each use.
For further assistance, or if you experience problems with this product
that are not addressed in this instruction manual, please contact our
Customer Service Department.
In the U.S., contact Johnson Level & Tool’s Customer Service
Department at 800-563-8553.
In Canada, contact Johnson Level & Tool’s Customer Service
Department at 800-346-6682.
©2009 Johnson Level & Tool - Rev. 1 15
